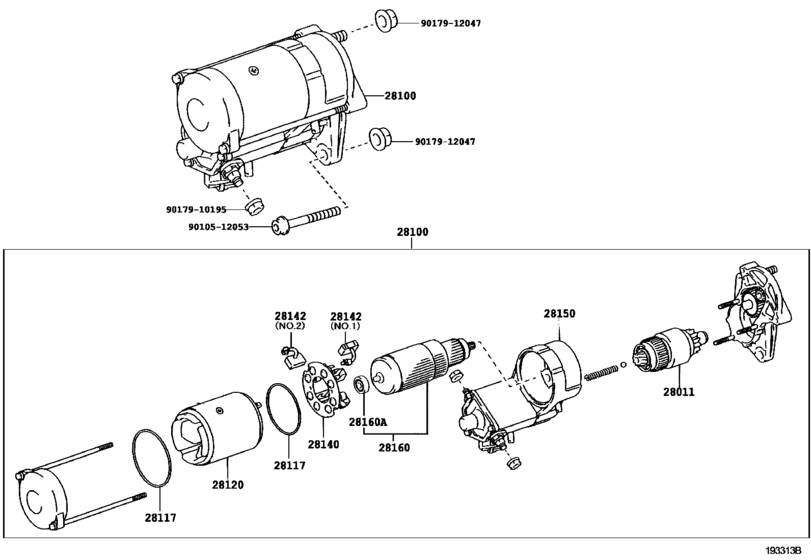

Starter ([08.2009 - ] 12V 3.0KW (0908- )1KDFTV..LHD..5FC..GEN) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-30050 Clutch Sub-Assy, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..GEN COLD AREA SPEC |
28011-30050 |
US $257.71 |
||
|
28011
|
28011
28011-67030 Clutch Sub-Assy, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
28011-67030 |
from US $208.88 |
||
|
28100
|
28100
28100-30071 Starter Assy[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN 12V 3.0KW,COLD AREA SPEC |
28100-30071 |
US $1,575.97 |
||
|
28100
|
28100
28100-67050 Starter Assy[08.2009 - 11.2009] 1KDFTV..KDJ150 12V 2.2KW |
28100-67050 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-67052 Starter Assy[08.2009 - 11.2009] 1KDFTV..KDJ150 12V 2.2KW |
28100-67052 |
US $1,253.92 |
||
|
28100
|
28100
28100-67051
Starter Assy
[11.2009 - 08.2013] 1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC 12V 2.2KW |
28100-67051 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-67052 Starter Assy[11.2009 - 08.2013] 1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC 12V 2.2KW |
28100-67052 |
US $1,253.92 |
||
|
28100
|
28100
28100-67052 Starter Assy[08.2014 - 06.2015] 1KDFTV..KDJ150 12V 2.2KW |
28100-67052 |
US $1,253.92 |
||
|
28117
|
28117
28117-67090 Rubber(For Starter Yoke)[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
28117-67090 |
US $5.64 |
||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[08.2009 - 08.2013] 1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
28120-64040 |
— | ||
|
28120
|
28120
28120-67090
Yoke Assy, Starter
[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
28120-67090 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[08.2009 - 08.2013] 1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
28140-64040 |
from US $37.19 |
||
|
28140
|
28140
28140-67090
Holder Assy, Starter Brush
[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
28140-67090 |
— | ||
|
28142
|
28142
28142-67090 Brush, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC,NO.1 |
28142-67090 |
US $5.24 |
||
|
28142
|
28142
28142-67100 Brush, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC,NO.2 |
28142-67100 |
from US $5.32 |
||
|
28150
|
28150
28150-30070 Switch Assy, Magnet Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
28150-30070 |
US $221.31 |
||
|
28150
|
28150
28150-67050 Switch Assy, Magnet Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..ARL,GEN;1KDFTV..KDJ150..5FC..GCC |
28150-67050 |
US $195.10 |
||
|
28160
|
28160
28160-64041 Armature Assy, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..5FC..GCC;1KDFTV,5LE..KDJ150,LJ150..ARL,GEN |
28160-64041 |
US $242.86 |
||
|
28160
|
28160
28160-67090 Armature Assy, Starter[08.2009 - 08.2013] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
28160-67090 |
US $283.92 |
||
|
28160A
|
28160A
90099-65030
Bearing, Starter Armature
[08.2009 - 07.2010] 1KDFTV..KDJ150..LHD..5FC..GEN COLD AREA SPEC |
90099-65030 |
— | ||
|
9010512053
|
9010512053
90105-12053 Bolt (For Rear Differential Carrier) |
90105-12053 |
from US $1.54 |
||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.76 |
||
|
9017912047
|
9017912047
90179-12047 Nut(For Front Stabilizer Link) |
90179-12047 |
from US $1.56 |
||
