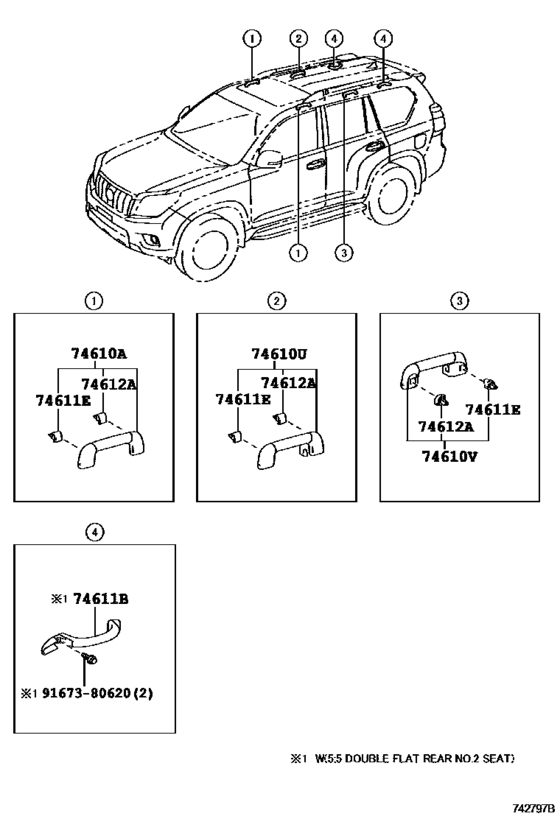

Armrest & Visor ([08.2009 - ] ASSIST GRIP(ROOF) (0908- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74610A
|
74610A
74610-30240-A1 Grip Sub-Assy, AssistASSIST [08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
74610-30240-A1 |
from US $21.26 |
||
|
74610A
|
74610A
74610-30240-A8 Grip Sub-Assy, Assist[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
74610-30240-A8 |
US $19.22 |
||
|
74610A
|
74610A
74610-30240-B0 Grip Sub-Assy, Assist[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
74610-30240-B0 |
from US $20.69 |
||
|
74610U
|
74610U
74610-30320-A2 Grip Assy, AssistASSIST [08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
74610-30320-A2 |
US $30.05 |
||
|
74610U
|
74610U
74610-30320-A8 Grip Assy, Assist, No.2 Rh[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
74610-30320-A8 |
US $19.22 |
||
|
74610U
|
74610U
74610-30320-B2 Grip Assy, Assist, No.2 Rh[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
74610-30320-B2 |
from US $19.56 |
||
|
74610V
|
74610V
74610-30330-A2 Grip Assy, AssistASSIST [08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 IVORY,TRIM0# |
74610-30330-A2 |
US $30.05 |
||
|
74610V
|
74610V
74610-30330-A8 Grip Assy, Assist, No.2 Lh[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
74610-30330-A8 |
US $24.98 |
||
|
74610V
|
74610V
74610-30330-B2 Grip Assy, Assist, No.2 Lh[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
74610-30330-B2 |
from US $20.55 |
||
|
74611B
|
74611B
74611-48010-A0 Grip, AssistASSIST [08.2009 - 08.2013] KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH,IVORY,TRIM0#; KDJ150..GEN;GRJ150..6F..GEN;GRJ150..LHD..5FC;KDJ150..5FC..GCC MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,IVORY,TRIM0#; KD |
74611-48010-A0 |
from US $16.45 |
||
|
74611B
|
74611B
74611-48010-A2 Grip, Assist[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ150 FLAXEN,TRIM0# |
74611-48010-A2 |
US $14.85 |
||
|
74611B
|
74611B
74611-48010-B2 Grip, AssistASSIST [08.2009 - 08.2013] KDJ150..GEN;KDJ150..5FC..GCC;TRJ150..LHD..GEN;GRJ150,LJ150..GCC,GEN MOON ROOF-WITH,LT.GRAY,TRIM1#; KDJ150..GEN;GRJ150..6F..GEN;GRJ150..LHD..5FC;KDJ150..5FC..GCC MOON ROOF-WITH&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM1# |
74611-48010-B2 |
US $17.30 |
||
|
74611E
|
74611E
74611-60050-A8 Cover, Assist Grip, Lh[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
74611-60050-A8 |
US $2.27 |
||
|
74611E
|
74611E
74611-60050-B0 Cover, Assist Grip, Lh[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
74611-60050-B0 |
US $2.88 |
||
|
74611E
|
74611E
74611-60050-E0 Cover, Assist Grip, Lh[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
74611-60050-E0 |
US $13.54 |
||
|
74612A
|
74612A
74612-60100-A8 Cover, Assist Grip, Rh Rear Side[08.2013 - 06.2015] GRJ150,KDJ150,LJ150,TRJ15# FLAXEN,TRIM0# |
74612-60100-A8 |
US $2.27 |
||
|
74612A
|
74612A
74612-60100-B0 Cover, Assist Grip, Rh Rear Side[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 LT.GRAY,TRIM1# |
74612-60100-B0 |
US $2.88 |
||
|
74612A
|
74612A
74612-60100-E0 Cover, Assist Grip, Rh Rear Side[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 SAND BEIGE,TRIM0# |
74612-60100-E0 |
US $3.32 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
