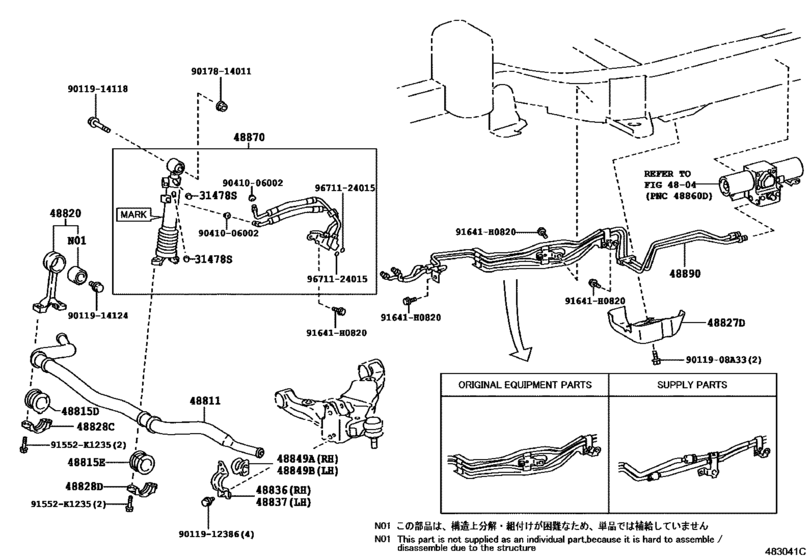

Front Spring & Shock Absorber ([10.2011 - ] KDSS (0908-1110)KDJ150 ; (1110- )KDJ150..6F..GEN ; (1110- )GDJ150,KDJ150..ATM) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31478S
|
31478S
31478-60020 Cap, Bleeder Plug(For Front Suspension Control)BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) [08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
31478-60020 |
US $0.48 |
||
|
48811
|
48811
48811-60310 Bar, Stabilizer, Front[08.2009 - 08.2013] TRJ150..LHD;LJ150,TRJ155;KDJ150..ARL,GEN;KDJ150..5FC..GCC |
48811-60310 |
US $195.84 |
||
|
48811
|
48811
48811-60340
Bar, Stabilizer, Front
[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48811-60340 |
— | ||
|
48811
|
48811
48811-60390 Bar, Stabilizer, Front[08.2013 - 06.2015] KDJ150..5FC..ARL VX PACKAGE; KDJ150..5FC..ARL VX-L PACKAGE; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48811-60390 |
US $372.15 |
||
|
48815D
|
48815D
48815-60310
Bush, Front Stabilizer Bar, No.1
[08.2009 - 05.2011] GRJ150,KDJ150,LJ150,TRJ15# |
48815-60310 |
— | ||
| replacement | |||||
|
48815D
|
48815D
48815-60380 Bush, Front Stabilizer Bar, No.1[08.2009 - 05.2011] GRJ150,KDJ150,LJ150,TRJ15# |
48815-60380 |
from US $12.32 |
||
|
48815D
|
48815D
48815-60320 Bush, Front Stabilizer Bar[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48815-60320 |
from US $17.02 |
||
|
48815D
|
48815D
48815-60380 Bush, Front Stabilizer Bar, No.1[06.2011 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
48815-60380 |
from US $12.32 |
||
|
48815D
|
48815D
48815-60390 Bush, Front Stabilizer Bar, Rh[08.2013 - 06.2015] KDJ150..5FC..ARL VX PACKAGE; KDJ150..5FC..ARL VX-L PACKAGE; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48815-60390 |
from US $15.13 |
||
|
48815D
|
48815D
48815-60410 Bush, Front Stabilizer Bar, Rh[05.2014 - 06.2015] GRJ150..5FC..GEN;KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&STABILIZER-WITH(KDSS) |
48815-60410 |
US $15.60 |
||
|
48815E
|
48815E
48815-60310
Bush, Front Stabilizer Bar, No.1
[08.2009 - 05.2011] GRJ150,KDJ150,LJ150,TRJ15# |
48815-60310 |
— | ||
| replacement | |||||
|
48815E
|
48815E
48815-60380 Bush, Front Stabilizer Bar, No.1[08.2009 - 05.2011] GRJ150,KDJ150,LJ150,TRJ15# |
48815-60380 |
from US $12.32 |
||
|
48815E
|
48815E
48815-60320 Bush, Front Stabilizer Bar[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48815-60320 |
from US $17.02 |
||
|
48815E
|
48815E
48815-60380 Bush, Front Stabilizer Bar, No.1[06.2011 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
48815-60380 |
from US $12.32 |
||
|
48815E
|
48815E
48815-60390 Bush, Front Stabilizer Bar, Rh[08.2013 - 06.2015] KDJ150..5FC..ARL VX PACKAGE; KDJ150..5FC..ARL VX-L PACKAGE; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48815-60390 |
from US $15.13 |
||
|
48815E
|
48815E
48815-60410 Bush, Front Stabilizer Bar, Rh[05.2014 - 06.2015] GRJ150..5FC..GEN;KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&STABILIZER-WITH(KDSS) |
48815-60410 |
US $15.60 |
||
|
48820
|
48820
48820-60090 Link Assy, Front StabilizerFRONT STABILIZER [08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48820-60090 |
from US $50.13 |
||
|
48827D
|
48827D
48827-60060
Protector, Front Stabilizer Tube
[08.2009 - 10.2011] KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE |
48827-60060 |
— | ||
|
48828C
|
48828C
48828-60050 Bracket, Front Stabilizer, Lower RhFRONT STABILIZER, LOWER RH [08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48828-60050 |
US $19.42 |
||
|
48828D
|
48828D
48828-60050 Bracket, Front Stabilizer, Lower RhFRONT STABILIZER, LOWER RH [08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48828-60050 |
US $19.42 |
||
|
48836
|
48836
48836-60130 Bracket, Front Stabilizer End, Rh[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48836-60130 |
US $10.83 |
||
|
48837
|
48837
48837-60080 Bracket, Front Stabilizer End, Lh[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48837-60080 |
US $10.83 |
||
|
48849A
|
48849A
48849-60040
Bush, Front Stabilizer Link
[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48849-60040 |
— | ||
| replacement | |||||
|
48849A
|
48849A
48849-60041 Bush, Front Stabilizer Link[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48849-60041 |
from US $11.49 |
||
|
48849B
|
48849B
48849-60040
Bush, Front Stabilizer Link
[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48849-60040 |
— | ||
| replacement | |||||
|
48849B
|
48849B
48849-60041 Bush, Front Stabilizer Link[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48849-60041 |
from US $11.49 |
||
|
48870
|
48870
48007-60020
Cylinder Assy, Front Stabilizer W/tube
[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48007-60020 |
— | ||
| replacement | |||||
|
48870
|
48870
48007-60023 Cylinder Assy, Front Stabilizer W/tube[08.2009 - 10.2011] GRJ150;KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; GRJ150..ARL,GEN;KDJ150..GCC,GEN;KDJ150..6F..ARL;GRJ150..5FC..GCC VX-L PACKAGE |
48007-60023 |
from US $1,049.92 |
||
|
48870
|
48870
48007-60021
Cylinder Assy, Front Stabilizer W/tube
[08.2014 - 06.2015] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60032; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60032; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60032 |
48007-60021 |
— | ||
| replacements | |||||
|
48870
|
48870
48007-60022
Cylinder Assy, Front Stabilizer W/tube
[08.2014 - 06.2015] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60032; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60032; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60032 |
48007-60022 |
— | ||
| replacement | |||||
|
48870
|
48870
48007-60023 Cylinder Assy, Front Stabilizer W/tube[08.2014 - 06.2015] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60032; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60032; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60032 |
48007-60023 |
from US $1,049.92 |
||
|
48870
|
48870
48007-60023 Cylinder Assy, Front Stabilizer W/tube[08.2014 - 06.2015] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60032; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60032; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60032 |
48007-60023 |
from US $1,049.92 |
||
|
48870
|
48870
48007-60022
Cylinder Assy, Front Stabilizer W/tube
[01.2016 - 03.2017] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48007-60022 |
— | ||
| replacement | |||||
|
48870
|
48870
48007-60023 Cylinder Assy, Front Stabilizer W/tube[01.2016 - 03.2017] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48007-60023 |
from US $1,049.92 |
||
|
48870
|
48870
48007-60023 Cylinder Assy, Front Stabilizer W/tube[04.2017 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48007-60023 |
from US $1,049.92 |
||
|
48870
|
48870
48007-60030
Cylinder Assy, Front Stabilizer W/tube
[08.2013 - 01.2014] KDJ150..5FC..ARL VX PACKAGE; KDJ150..5FC..ARL VX-L PACKAGE; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48007-60030 |
— | ||
| replacement | |||||
|
48870
|
48870
48007-60032 Cylinder Assy, Front Stabilizer W/tube[08.2013 - 01.2014] KDJ150..5FC..ARL VX PACKAGE; KDJ150..5FC..ARL VX-L PACKAGE; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
48007-60032 |
US $1,584.71 |
||
|
48870
|
48870
48007-60031 Cylinder Assy, Front Stabilizer W/tube[02.2014 - 08.2014] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60041; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60041; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60041 |
48007-60031 |
US $1,039.58 |
||
| replacement | |||||
|
48870
|
48870
48007-60032 Cylinder Assy, Front Stabilizer W/tube[02.2014 - 08.2014] KDJ150..5FC..ARL VX PACKAGE,MARK=48875-60041; KDJ150..5FC..ARL VX-L PACKAGE,MARK=48875-60041; GRJ150..5FC;KDJ150..GCC,GEN;GRJ150..6F..GEN STABILIZER-WITH(KDSS),MARK=48875-60041 |
48007-60032 |
US $1,584.71 |
||
|
48890
|
48890
48890-60060
Tube Assy, Front Stabilizer Control, No.1
[08.2009 - 10.2011] KDJ150..GCC,GEN;KDJ150..6F..ARL VX PACKAGE; KDJ150..GCC,GEN;KDJ150..6F..ARL VX-L PACKAGE |
48890-60060 |
— | ||
|
48890
|
48890
48890-60100
Tube Assy, Front Stabilizer Control, No.1
[06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150 STABILIZER-WITH(KDSS) |
48890-60100 |
— | ||
|
91552K1235
|
91552K1235
91552-K1235 BOLT FLANGE |
91552-K1235 |
US $2.88 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.88 |
||
|
9011908A33
|
9011908A33
90119-08A33 BOLT |
90119-08A33 |
from US $0.84 |
||
|
9011912386
|
9011912386
90119-12386 BOLT WWASHER |
90119-12386 |
from US $2.05 |
||
|
9011914118
|
9011914118
90119-14118 BOLT W-WASHER |
90119-14118 |
from US $3.74 |
||
|
9011914124
|
9011914124
90119-14124 BOLT WWASHER |
90119-14124 |
US $4.56 |
||
|
9017814011
|
9017814011
90178-14011 Nut(For Suspension Lower Arm Shaft) |
90178-14011 |
from US $1.62 |
||
|
9041006002
|
9041006002
90410-06002 Seat, Union(For Power Steering Control Valve) |
90410-06002 |
US $3.52 |
||
|
9671124015
|
9671124015
96711-24015 Ring, O (For Front Power Take-Off Shaft) |
96711-24015 |
US $2.24 |
||
