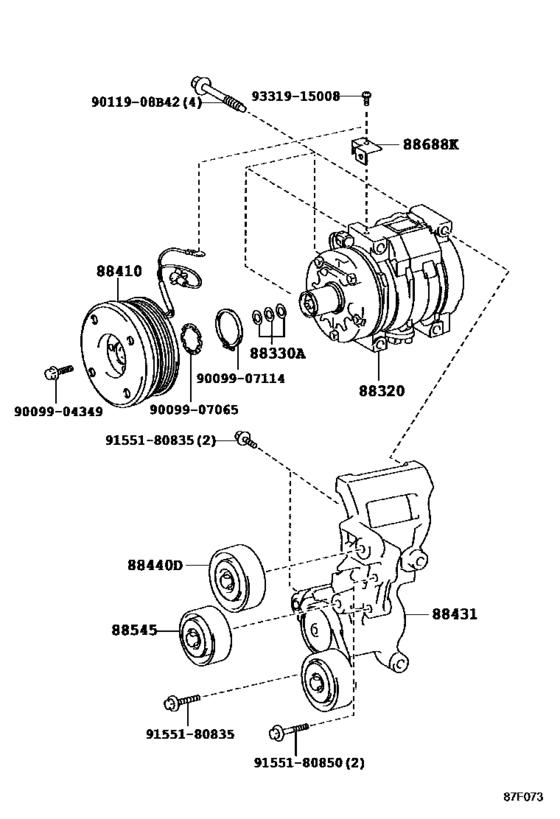

Heating & Air Conditioning - Compressor ([08.2009 - ] (0908- )KDJ150..ARL,GEN) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-6A460 Compressor Assy, CoolerCOOLER [08.2009 - 08.2013] KDJ150..ARL,GEN |
88320-6A460 |
US $826.23 |
||
|
88320
|
88320
88320-6A470
Compressor Assy, Cooler
[08.2009 - 08.2013] KDJ150..ARL,GEN AIR CONDITIONER-DUAL(AUTO); KDJ150..ARL AIR CONDITIONER-DUAL(MANUAL) |
88320-6A470 |
— | ||
|
88320
|
88320
88320-6A480
Compressor Assy, Cooler
[08.2009 - 08.2013] KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO) |
88320-6A480 |
— | ||
|
88320
|
88320
88320-6A490
Compressor Assy, Cooler
[08.2009 - 08.2013] KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO) |
88320-6A490 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.2009 - 08.2013] TRJ15#..LHD;KDJ150..5FC..GCC;GRJ150,KDJ150,LJ150..ARL,GEN |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-6A150 Clutch Assy, MagnetMAGNET [08.2009 - 08.2013] KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO); KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO) |
88410-6A150 |
US $470.89 |
||
|
88410
|
88410
88410-6A180 Clutch Assy, MagnetMAGNET [08.2009 - 08.2013] KDJ150..ARL,GEN;KDJ150..5FC..GCC |
88410-6A180 |
from US $469.37 |
||
|
88431
|
88431
16620-30010 Bracket, Compressor Mounting, No.1[08.2009 - 08.2013] KDJ150..ARL,GEN;KDJ150..5FC..GCC |
16620-30010 |
from US $220.10 |
||
|
88440D
|
88440D
88440-35101 Pulley Assy, Idle[08.2009 - 08.2013] KDJ150..ARL,GEN;KDJ150..5FC..GCC |
88440-35101 |
from US $118.40 |
||
|
88545
|
88545
88440-35130 Pulley Assy, Idler[08.2009 - 08.2013] KDJ150..ARL,GEN;KDJ150..5FC..GCC |
88440-35130 |
from US $88.80 |
||
|
88688K
|
88688K
88569-35170
Bracket, Cooler Compressor
[08.2009 - 08.2013] KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-SINGLE(AUTO); KDJ150..LHD..GEN KAZAKHSTAN,GEORGIA,AZORES SPEC&COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO) |
88569-35170 |
— | ||
|
88688K
|
88688K
88688-6B270
Bracket, Cooler Compressor
[08.2009 - 08.2013] KDJ150..ARL,GEN |
88688-6B270 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $1.28 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
from US $1.21 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
