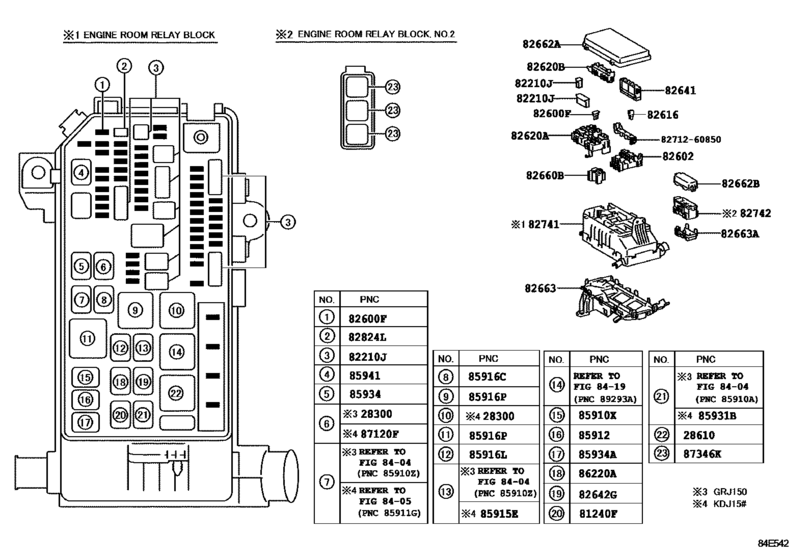

Switch & Relay & Computer ([08.2013 - 06.2015] ENGINE ROOM RELAY BLOCK (1308-1506)) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- Europe
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
90987-02025 Relay[08.2009 - 08.2013] 1KDFTV..KDJ15# |
90987-02025 |
from US $44.54 |
||
|
28610
|
28610
28610-27010 Relay Assy, Glow Plug[08.2009 - 08.2013] 1KDFTV..KDJ15# |
28610-27010 |
from US $40.58 |
||
|
81240F
|
81240F
90987-02027 Relay[08.2013 - 06.2015] GRJ150,KDJ15# |
90987-02027 |
from US $44.54 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[08.2013 - 06.2015] GRJ150,KDJ15# 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[08.2009 - 08.2013] KDJ15#..LHD 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[08.2009 - 08.2013] KDJ15# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[08.2013 - 06.2015] GRJ150,KDJ15# 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08301 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 50A-30A-50A,FEMALE |
90982-08302 |
US $6.24 |
||
|
82210J
|
82210J
90982-08303 Fusible Link[06.2015 -] GDJ15#,GRJ150,KDJ15# 50A-50A-50A,FEMALE |
90982-08303 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 30A,TERMINAL:FEMALE,DRIVER SIDE J/B |
90982-08306 |
US $6.24 |
||
|
82210J
|
82210J
90982-08307 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 50A,TERMINAL:FEMALE |
90982-08307 |
US $5.07 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[08.2009 - 08.2013] KDJ15#;GRJ150..LHD 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82602
|
82602
82602-60090 Block Sub-Assy, RelayRELAY [08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82602-60090 |
US $33.49 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-60060 Block Assy, Fusible LinkFUSIBLE LINK [08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82620-60060 |
US $53.14 |
||
|
82620B
|
82620B
82620-60070 Block Assy, Fusible LinkFUSIBLE LINK [08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82620-60070 |
US $25.19 |
||
|
82641
|
82641
82641-60070
Relay, Integration No.1
[08.2009 - 08.2013] KDJ15# |
82641-60070 |
— | ||
|
82641
|
82641
82641-60080 Relay, Integration No.1INTEGRATION NO.1 [08.2013 - 06.2015] GRJ150;KDJ15#..RHD; KDJ15#..LHD *242; KDJ150..LHD..5FC *242&VX PACKAGE&LEATHER SEAT PACKAGE&HEADLAMP-LED&FRONT SEAT-POWER(DRIVER & PASSEN GER); KDJ150..LHD..5FC *242&VX PACKAGE&LEATHER PACKAGE(STEERING & SHIFT KNOB)&HEADLAMP-LED&FRONT |
82641-60080 |
from US $89.11 |
||
|
82642G
|
82642G
90987-02027 Relay[08.2009 - 08.2013] GRJ150,KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC; GRJ150,KDJ15#..LHD ICELAND SPEC; GRJ150,KDJ15#..LHD ESTONIA,LATVIA,LITHUANIA SPEC |
90987-02027 |
from US $44.54 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82660-0H070 |
US $6.99 |
||
|
82662A
|
82662A
82662-60360
Cover, Relay Block, Upper, No.1
[08.2009 - 10.2010] KDJ15#..LHD |
82662-60360 |
— | ||
|
82662A
|
82662A
82662-60480
Cover, Relay Block, Upper, No.1
[10.2010 - 12.2010] KDJ15#..LHD ENGINE-FOR EURO 5 CONFORMITY |
82662-60480 |
— | ||
|
82662A
|
82662A
82662-60510
Cover, Relay Block, Upper, No.1
[10.2010 - 01.2012] KDJ15#..LHD |
82662-60510 |
— | ||
|
82662A
|
82662A
82662-60550
Cover, Relay Block, Upper, No.1
[01.2012 - 08.2013] KDJ15# |
82662-60550 |
— | ||
|
82662A
|
82662A
82662-60570
Cover, Relay Block, Upper, No.1
[01.2012 - 08.2013] KDJ15#..RHD ENGLAND SPEC; KDJ15#..RHD IRELAND SPEC; KDJ15#..LHD *242; KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC; KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC; KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC; KDJ15#..LHD PORTUGAL SPEC |
82662-60570 |
— | ||
|
82662A
|
82662A
82662-60640
Cover, Relay Block, Upper, No.1
[08.2013 - 06.2015] KDJ15#..LHD; KDJ150..RHD..5FC ENGINE-FOR EURO 4 CONFORMITY |
82662-60640 |
— | ||
|
82662A
|
82662A
82662-60660
Cover, Relay Block, Upper, No.1
[08.2013 - 06.2015] KDJ15#..RHD; KDJ15#..LHD *242; KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC; KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC; KDJ150..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC&COLD AREA SPEC; KDJ15#..LHD PORTUGAL SPEC; KDJ15#..LHD GREECE SPE |
82662-60660 |
— | ||
|
82662A
|
82662A
82662-60740
Cover, Relay Block, Upper, No.1
[06.2015 -] KDJ150 |
82662-60740 |
— | ||
|
82662B
|
82662B
82662-60380 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [08.2009 - 10.2011] GRJ150..RHD; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-WIT H&FRONT FOG LAMP-WITH; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX-L PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-W |
82662-60380 |
US $7.16 |
||
|
82663
|
82663
82663-60080 Cover, Relay Block, LowerRELAY BLOCK, LOWER [08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82663-60080 |
from US $44.73 |
||
|
82663A
|
82663A
82663-60100 Cover, Relay Block, Lower, No.2RELAY BLOCK, LOWER, NO.2 [08.2009 - 10.2011] GRJ150..RHD; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-WIT H&FRONT FOG LAMP-WITH; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX-L PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-W |
82663-60100 |
US $6.81 |
||
|
82741
|
82741
82741-60040 Block, Engine Room Relay (EMPTY)[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82741-60040 |
from US $69.89 |
||
|
82742
|
82742
82742-60030 Block, Engine Room Relay, No.2ENGINE ROOM RELAY, NO.2 [08.2009 - 10.2011] GRJ150..RHD; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-WIT H&FRONT FOG LAMP-WITH; KDJ150..LHD..5FC SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX-L PACKAGE&COLD AREA SPEC&HEAD LAMP CLEANER-W |
82742-60030 |
US $17.30 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
82824-41010 |
from US $3.12 |
||
|
85910X
|
85910X
90987-02027 Relay[08.2009 - 08.2013] GRJ150,KDJ15#..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM & W/HEATER; GRJ150,KDJ15#..LHD OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(RH); GRJ150,KDJ15#..LHD..5FC OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATE |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-02027 Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
90987-02027 |
from US $44.54 |
||
|
85915E
|
85915E
90987-02028 Relay, Water Pump[10.2010 - 08.2013] KDJ15#..RHD ENGLAND SPEC; KDJ15#..RHD IRELAND SPEC; KDJ15#..LHD *242; KDJ15#..LHD HUNGARY,SLOVAKIA,POLAND SPEC; KDJ15#..LHD MONACO,GIBRALTAR,CANARY ISLANDS SPEC; KDJ15#..LHD SWEDEN,FINLAND,NORWAY,DENMARK SPEC; KDJ15#..LHD PORTUGAL SPEC |
90987-02028 |
from US $44.54 |
||
|
85916C
|
85916C
90987-02027 Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
90987-02027 |
from US $44.54 |
||
|
85916L
|
85916L
90987-02027 Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD; KDJ155..RHD..5FC AUSTRALIA OR NEW ZEALAND SPEC |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
90987-02025 |
from US $44.54 |
||
|
85931B
|
85931B
90987-02027 Relay[08.2009 - 08.2013] KDJ15#; KDJ155..RHD..5FC AUSTRALIA OR NEW ZEALAND SPEC; KDJ150..RHD..5FC INDIA SPEC |
90987-02027 |
from US $44.54 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[08.2009 - 08.2013] KDJ15#;GRJ150..LHD AIR CONDITIONER-SINGLE(AUTO); KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
90987-02028 |
from US $44.54 |
||
|
85934A
|
85934A
90987-02027 Relay[08.2009 - 08.2013] KDJ15# AIR CONDITIONER-SINGLE(AUTO); KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
90987-02027 |
from US $44.54 |
||
|
85941
|
85941
90987-02027 Relay[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
90987-02027 |
from US $44.54 |
||
|
86220A
|
86220A
90987-02027 Relay[08.2009 - 08.2013] KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE); KDJ150;GRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT |
90987-02027 |
from US $44.54 |
||
|
87120F
|
87120F
90987-02027 Relay[08.2009 - 08.2013] KDJ15#..RHD;KDJ15#..LHD..6F COLD AREA SPEC |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02025 Relay[08.2009 - 08.2013] KDJ15#..6F COLD AREA SPEC; GRJ150..LHD COLD AREA SPEC&AIR CONDITIONER-DUAL(AUTO) |
90987-02025 |
from US $44.54 |
||
|
