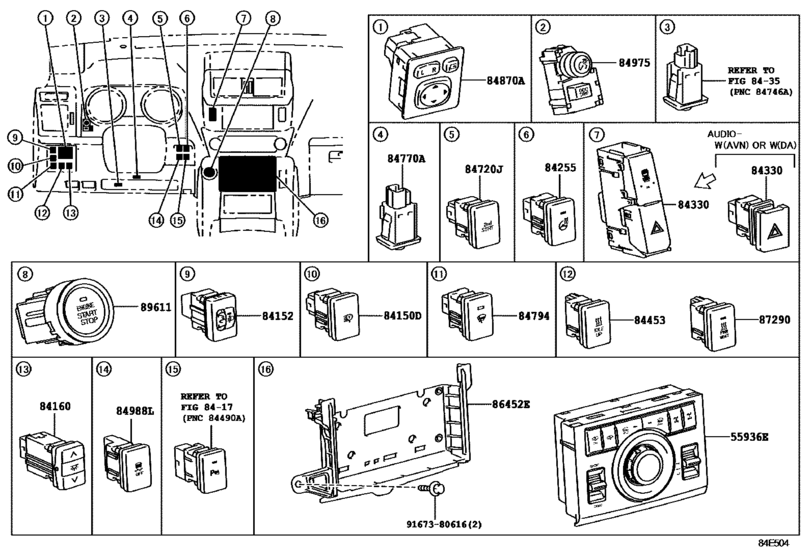

Switch & Relay & Computer ([08.2013 - 06.2015] INSTRUMENT PANEL 1/2 (1308-1506)LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- Europe
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84150D
|
84150D
84150-33050 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [08.2009 - 08.2013] KDJ15#;GRJ150..LHD HEAD LAMP CLEANER-WITH |
84150-33050 |
US $39.75 |
||
| replacement | |||||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[08.2009 - 08.2013] KDJ15#;GRJ150..LHD HEAD LAMP CLEANER-WITH |
84150-33051 |
US $38.44 |
||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[12.2014 - 06.2015] GRJ150,KDJ15# HEADLAMP CLEANER-WITH |
84150-33051 |
US $38.44 |
||
|
84152
|
84152
84152-52100 Switch, Headlamp Leveling[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
84152-52100 |
US $50.38 |
||
| replacement | |||||
|
84152
|
84152
84152-52101 Switch, Headlamp Leveling[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
84152-52101 |
from US $45.57 |
||
|
84152
|
84152
84152-52101 Switch, Headlamp Leveling[12.2014 - 06.2015] GRJ150,KDJ15# |
84152-52101 |
from US $45.57 |
||
|
84160
|
84160
84170-60020 Switch Assy, Room LampROOM LAMP [08.2009 - 08.2013] KDJ15#;GRJ150..LHD VX PACKAGE; KDJ150;GRJ150..LHD VX-L PACKAGE |
84170-60020 |
US $46.30 |
||
|
84160
|
84160
84170-60030 Switch Assy, Room Lamp[06.2015 -] KDJ150..RHD; KDJ150..LHD;GDJ15#,GRJ150 VX PACKAGE; KDJ150..LHD..5FC;GDJ150,GRJ150..6FC VX-L PACKAGE |
84170-60030 |
US $35.96 |
||
|
84255
|
84255
84255-60030
Switch, Steering Heater
[08.2013 - 01.2015] KDJ155;KDJ150..6F LEATHER SEAT PACKAGE&COLD AREA SPEC; KDJ155;KDJ150..6F LEATHER PACKAGE(STEERING & SHIFT KNOB)&COLD AREA SPEC; KDJ155;KDJ150..6F VX COLOR LEATHER + COSM.PACK&COLD AREA SPEC; GRJ150,KDJ150..5FC VX PACKAGE&LEATHER SEAT P |
84255-60030 |
— | ||
| replacement | |||||
|
84255
|
84255
84255-60031
Switch, Steering Heater
[08.2013 - 01.2015] KDJ155;KDJ150..6F LEATHER SEAT PACKAGE&COLD AREA SPEC; KDJ155;KDJ150..6F LEATHER PACKAGE(STEERING & SHIFT KNOB)&COLD AREA SPEC; KDJ155;KDJ150..6F VX COLOR LEATHER + COSM.PACK&COLD AREA SPEC; GRJ150,KDJ150..5FC VX PACKAGE&LEATHER SEAT P |
84255-60031 |
— | ||
|
84255
|
84255
84255-60031
Switch, Steering Heater
[02.2015 - 06.2015] KDJ155;KDJ150..6F LEATHER SEAT PACKAGE&COLD AREA SPEC; KDJ155;KDJ150..6F LEATHER PACKAGE(STEERING & SHIFT KNOB)&COLD AREA SPEC; KDJ155;KDJ150..6F VX COLOR LEATHER + COSM.PACK&COLD AREA SPEC; GRJ150,KDJ150..5FC VX PACKAGE&LEATHER SEAT P |
84255-60031 |
— | ||
|
84330
|
84330
83160-60020
Indicator Assy, Clearance Warning
[08.2009 - 08.2013] GRJ150,KDJ15#..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
83160-60020 |
— | ||
|
84330
|
84330
83160-60060
Switch Assy, Hazard Warning Signal
[08.2013 - 06.2015] GRJ150,KDJ15#..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
83160-60060 |
— | ||
|
84330
|
84330
83160-60070 Switch Assy, Hazard Warning Signal[08.2013 - 06.2015] GRJ150,KDJ15#..LHD |
83160-60070 |
US $38.59 |
||
|
84330
|
84330
84332-60300 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.2009 - 08.2013] GRJ150,KDJ15#..LHD; KDJ155..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUETOOTH+12SP&CLEARAN CE & BACK SONAR-WITH(FRONT & REAR); GRJ150,KDJ150..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-HDD NAVIGATION+DVD-CH+BLUET |
84332-60300 |
US $53.39 |
||
|
84330
|
84330
84332-60320
Switch Assy, Hazard Warning Signal
[08.2009 - 08.2013] GRJ150,KDJ15#..LHD VX PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLEARANC E & BACK SONAR-WITH(FRONT & REAR); GRJ150,KDJ150..LHD VX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+BLUETOOTH+EXTRA+9SPEAKER&CLE |
84332-60320 |
— | ||
|
84330
|
84330
84332-60410
Switch Assy, Hazard Warning Signal
[08.2013 - 12.2014] GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GRJ150 AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK |
84332-60410 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-60411 Switch Assy, Hazard Warning Signal[08.2013 - 12.2014] GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GRJ150 AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK |
84332-60411 |
US $45.47 |
||
|
84330
|
84330
84332-60411 Switch Assy, Hazard Warning Signal[01.2015 - 06.2015] GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER; GRJ150,KDJ15#..LHD AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GRJ150 AUDIO(FOR OVERSEAS MARKET)-*NS & JBL & 14SPEAKER&CLEARANCE & BACK |
84332-60411 |
US $45.47 |
||
|
84453
|
84453
84453-60061
Switch, Idle Up
[06.2015 -] GDJ15#,KDJ150 |
84453-60061 |
— | ||
|
84453
|
84453
84453-60070
Switch, Idle Up
[08.2009 - 08.2013] KDJ15# |
84453-60070 |
— | ||
| replacement | |||||
|
84453
|
84453
84453-60071
Switch, Idle Up
[08.2009 - 08.2013] KDJ15# |
84453-60071 |
— | ||
|
84453
|
84453
84453-60071
Switch, Idle Up
[12.2014 - 06.2015] KDJ15# |
84453-60071 |
— | ||
|
84794
|
84794
84871-48040 Switch, Fr Wiper DeicerOUTER MIRROR HEATER [08.2009 - 08.2013] KDJ150;GRJ150..LHD;KDJ155..5FC;KDJ155..LHD..6F COLD AREA SPEC; KDJ155..RHD..6F WINDSHIELD GLASS-WITH(DEICER) |
84871-48040 |
US $39.60 |
||
| replacement | |||||
|
84794
|
84794
84871-60040 Switch, Fr Wiper Deicer[08.2009 - 08.2013] KDJ150;GRJ150..LHD;KDJ155..5FC;KDJ155..LHD..6F COLD AREA SPEC; KDJ155..RHD..6F WINDSHIELD GLASS-WITH(DEICER) |
84871-60040 |
US $42.38 |
||
|
84794
|
84794
84871-48041 Switch, Fr Wiper Deicer[02.2015 - 06.2015] KDJ155..5FC;GRJ150,KDJ150;KDJ155..LHD..6F COLD AREA SPEC; KDJ155..RHD..6F WINDSHIELD GLASS-WITH(DEICER) |
84871-48041 |
US $39.60 |
||
| replacement | |||||
|
84794
|
84794
84871-60040 Switch, Fr Wiper Deicer[02.2015 - 06.2015] KDJ155..5FC;GRJ150,KDJ150;KDJ155..LHD..6F COLD AREA SPEC; KDJ155..RHD..6F WINDSHIELD GLASS-WITH(DEICER) |
84871-60040 |
US $42.38 |
||
|
84870A
|
84870A
84870-60160 Switch Assy, Outer MirrorOUTER MIRROR [08.2009 - 08.2013] GRJ150,KDJ15#..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM & W/HEATER; GRJ150,KDJ15#..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & *RCM; GRJ150,KDJ15#..LHD OUTSIDE REAR VIEW MIRROR-*57 & *RCM & W/HEATER & W/CAMERA(R |
84870-60160 |
from US $65.17 |
||
|
84870A
|
84870A
84870-60170
Switch Assy, Outer Mirror
[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
84870-60170 |
— | ||
|
84975
|
84975
84975-60020
Switch, Trip
[08.2009 - 10.2011] GRJ150,KDJ150..LHD VX-L PACKAGE |
84975-60020 |
— | ||
| replacement | |||||
|
84975
|
84975
84975-60021
Switch, Trip
[08.2009 - 10.2011] GRJ150,KDJ150..LHD VX-L PACKAGE |
84975-60021 |
— | ||
|
84975
|
84975
84975-60021
Switch, Trip
[08.2013 - 06.2015] GRJ150,KDJ15#..LHD VX PACKAGE; GRJ150,KDJ150..LHD..5FC VX-L PACKAGE |
84975-60021 |
— | ||
|
84975
|
84975
84975-60040
Switch, Trip
[08.2009 - 08.2013] GRJ150,KDJ15#..LHD |
84975-60040 |
— | ||
| replacement | |||||
|
84975
|
84975
84975-60041
Switch, Trip
[08.2009 - 08.2013] GRJ150,KDJ15#..LHD |
84975-60041 |
— | ||
|
84975
|
84975
84975-60041
Switch, Trip
[08.2013 - 06.2015] GRJ150,KDJ15#..LHD |
84975-60041 |
— | ||
|
84988L
|
84988L
84988-48070 Switch, Vehicle Stability Control[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
84988-48070 |
US $39.75 |
||
| replacement | |||||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[08.2009 - 08.2013] KDJ15#;GRJ150..LHD |
84988-48071 |
US $32.01 |
||
|
84988L
|
84988L
84988-48071 Switch, Vehicle Stability Control[12.2014 - 06.2015] GRJ150,KDJ15# |
84988-48071 |
US $32.01 |
||
|
87290
|
87290
87290-60080
Switch Assy, Heater
[08.2009 - 08.2013] KDJ15# COLD AREA SPEC |
87290-60080 |
— | ||
| replacement | |||||
|
87290
|
87290
87290-60081 Switch Assy, Heater[08.2009 - 08.2013] KDJ15# COLD AREA SPEC |
87290-60081 |
US $41.90 |
||
|
87290
|
87290
87290-60081 Switch Assy, Heater[02.2015 - 06.2015] KDJ15# COLD AREA SPEC |
87290-60081 |
US $41.90 |
||
|
89611
|
89611
89611-30060 Switch, Push StartPUSH START [08.2009 - 10.2010] GRJ150,KDJ15#; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30060 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[08.2009 - 10.2010] GRJ150,KDJ15#; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30061 Switch, Push Start[11.2010 - 06.2011] GRJ150,KDJ15#; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30061 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[11.2010 - 06.2011] GRJ150,KDJ15#; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30062 Switch, Push Start[07.2011 - 12.2012] KDJ15#;GRJ150..LHD; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30062 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[07.2011 - 12.2012] KDJ15#;GRJ150..LHD; KDJ15#;GRJ150..LHD WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30063 Switch, Push Start[01.2013 - 08.2013] GRJ150,KDJ15#; GRJ150,KDJ15# WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30063 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[01.2013 - 08.2013] GRJ150,KDJ15#; GRJ150,KDJ15# WIRELESS DOOR LOCK-WITH(LESS SMART ENTRY) |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30064 Switch, Push Start[10.2016 -] GDJ15#,GRJ150,KDJ150 |
89611-30064 |
US $122.30 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.57 |
||
