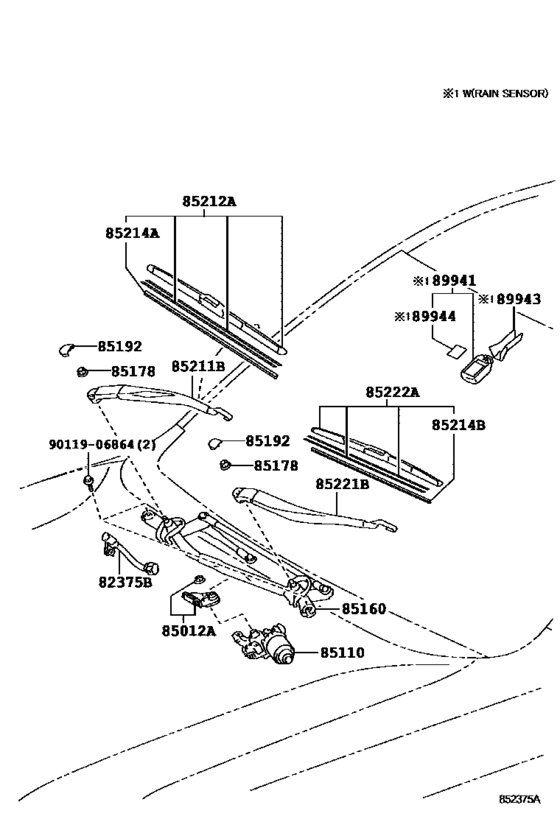

Windshield Wiper ([08.2009 - ] (0908- )RHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2009 - 2018
- Sales region
- General
- Frame
- KDJ150
- ENGINE
- 1KDFTV
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 08.2009
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-60010 Wire, Wiper MotorWIPER MOTOR [08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
82375-60010 |
US $12.08 |
||
|
85012A
|
85012A
85012-50010 Crank Sub-Assy, Front Wiper[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85012-50010 |
US $31.14 |
||
|
85110
|
85110
85110-47100 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85110-47100 |
US $351.40 |
||
|
85160
|
85160
85150-60340 Link Assy, Windshield WiperWINDSHIELD WIPER [08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85150-60340 |
US $155.52 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
90182-10006 |
from US $1.01 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[08.2009 - 08.2013] TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-60270 Arm, Front Wiper, RhFR WIPER, RH [08.2009 - 03.2011] GRJ150,KDJ150,LJ150,TRJ150..RHD |
85211-60270 |
US $54.60 |
||
| replacement | |||||
|
85211B
|
85211B
85211-60271 Arm, Front Wiper, Rh[08.2009 - 03.2011] GRJ150,KDJ150,LJ150,TRJ150..RHD |
85211-60271 |
US $51.22 |
||
|
85211B
|
85211B
85211-60271 Arm, Front Wiper, Rh[04.2011 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85211-60271 |
US $51.22 |
||
|
85212A
|
85212A
85212-48120 Blade, Fr Wiper, RhFR WIPER, RH [08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85212-48120 |
US $62.46 |
||
| replacement | |||||
|
85212A
|
85212A
85212-60220 Blade, Fr Wiper, Rh[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85212-60220 |
from US $62.79 |
||
|
85212A
|
85212A
85212-60220 Blade, Fr Wiper, Rh[10.2014 - 06.2015] GRJ150,KDJ150,LJ150..RHD |
85212-60220 |
from US $62.79 |
||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[10.2014 - 06.2015] GRJ150,KDJ150,LJ150..RHD |
85214-52110 |
from US $14.40 |
||
|
85214A
|
85214A
85214-68020 Rubber, Wiper, Rh[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-53090 Rubber, Wiper, Rh[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85214-53090 |
from US $11.08 |
||
|
85214B
|
85214B
85214-60120 Rubber, Wiper, Lh[10.2014 - 06.2015] GRJ150,KDJ150,LJ150..RHD |
85214-60120 |
from US $12.80 |
||
|
85221B
|
85221B
85221-60300 Arm, Front Wiper, LhFR WIPER, LH [08.2009 - 03.2011] GRJ150,KDJ150,LJ150,TRJ150..RHD |
85221-60300 |
US $56.64 |
||
| replacement | |||||
|
85221B
|
85221B
85221-60301 Arm, Front Wiper, Lh[08.2009 - 03.2011] GRJ150,KDJ150,LJ150,TRJ150..RHD |
85221-60301 |
US $75.48 |
||
|
85221B
|
85221B
85221-60301 Arm, Front Wiper, Lh[04.2011 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85221-60301 |
US $75.48 |
||
|
85221B
|
85221B
85221-60340 Arm, Front Wiper, Lh[10.2014 - 06.2015] GRJ150,KDJ150,LJ150..RHD |
85221-60340 |
US $53.20 |
||
|
85222A
|
85222A
85222-53060 Blade, Fr Wiper, Rh[08.2009 - 08.2013] GRJ150,KDJ150,LJ150..RHD |
85222-53060 |
from US $44.23 |
||
|
85222A
|
85222A
85222-60280 Blade, Fr Wiper, Lh[10.2014 - 06.2015] GRJ150,KDJ150,LJ150..RHD |
85222-60280 |
US $40.13 |
||
|
89941
|
89941
89941-30020 Sensor, Rain[08.2009 - 07.2011] GRJ150,KDJ150..ARL,GEN VX PACKAGE; GRJ150,KDJ150..ARL,GEN VX-L PACKAGE |
89941-30020 |
US $184.91 |
||
|
89941
|
89941
89941-48072 Sensor, Rain[12.2011 - 08.2013] GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE |
89941-48072 |
from US $167.44 |
||
|
89941
|
89941
89941-60130
Sensor, Rain
[10.2011 - 11.2011] GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE |
89941-60130 |
— | ||
| replacement | |||||
|
89941
|
89941
89941-48072 Sensor, Rain[10.2011 - 11.2011] GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE |
89941-48072 |
from US $167.44 |
||
|
89941
|
89941
89941-60140 Sensor, Rain[08.2011 - 10.2011] GRJ150,KDJ150..ARL,GEN VX PACKAGE; GRJ150,KDJ150..ARL,GEN VX-L PACKAGE |
89941-60140 |
US $222.77 |
||
| replacement | |||||
|
89941
|
89941
89941-48072 Sensor, Rain[08.2011 - 10.2011] GRJ150,KDJ150..ARL,GEN VX PACKAGE; GRJ150,KDJ150..ARL,GEN VX-L PACKAGE |
89941-48072 |
from US $167.44 |
||
|
89943
|
89943
89943-33050 Cover, Rain SensorRAIN SENSOR [08.2009 - 08.2013] GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE |
89943-33050 |
from US $19.74 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[08.2009 - 08.2013] GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX PACKAGE; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150..5FC..(ARL,GEN) VX-L PACKAGE |
89944-42010 |
from US $13.26 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
