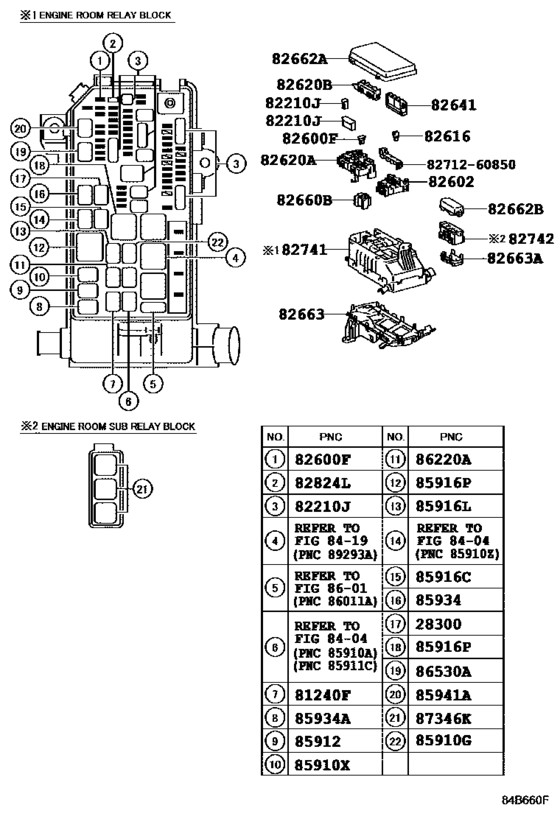

Switch & Relay & Computer ([11.2013 - ] ENGINE ROOM RELAY BLOCK (1311- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TRJ152
- grade
- TX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 150
- From
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Land Cruiser Prado
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[03.2015 -] 7GRFKS,2TRFE..GRJ152,TRJ152 |
28300-21020 |
from US $40.58 |
||
|
81240F
|
81240F
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
82210J
|
82210J
90982-08274 Fusible Link[11.2013 -] GRJ152,TRJ152 120A,TERMINAL:MALE |
90982-08274 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[11.2013 -] GRJ152,TRJ152 140A,TERMINAL:MALE |
90982-08286 |
from US $7.68 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[11.2013 -] GRJ152,TRJ152 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[09.2015 -] GRJ152,TRJ152 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2013 -] GRJ152,TRJ152 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08301 Fusible Link[11.2013 -] GRJ152,TRJ152 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[11.2013 -] GRJ152,TRJ152 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[11.2013 -] GRJ152,TRJ152 80A,TERMINAL:FEMALE |
90982-08305 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2013 -] GRJ152,TRJ152 30A,TERMINAL:FEMALE,MARK:32V |
90982-08306 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08307 Fusible Link[11.2013 -] GRJ152,TRJ152 50A,TERMINAL:FEMALE |
90982-08307 |
from US $5.07 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2013 -] GRJ152,TRJ152 7.5A,MINI FUSE; GRJ152..TX 7.5A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 7.5A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2013 -] GRJ152,TRJ152 10A,MINI FUSE; GRJ152..TX 10A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 10A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2013 -] GRJ152,TRJ152 15A,MINI FUSE; GRJ152..TX 15A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 15A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2013 -] GRJ152,TRJ152 20A,MINI FUSE; GRJ152..TX 20A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 20A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2013 -] GRJ152,TRJ152 25A,MINI FUSE; GRJ152..TX 25A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 25A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2013 -] GRJ152,TRJ152 30A,MINI FUSE; GRJ152..TX 30A,MINI FUSE,TX-L PACKAGE; GRJ152..VX 30A,MINI FUSE,AUDIO-AVN & JBL & 14SPEAKER |
90982-09025 |
from US $0.96 |
||
|
82602
|
82602
82602-60090 Block Sub-Assy, RelayRELAY [11.2013 -] GRJ152,TRJ152 |
82602-60090 |
US $33.49 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[11.2013 -] GRJ152,TRJ152 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-60060 Block Assy, Fusible LinkFUSIBLE LINK [11.2013 -] GRJ152,TRJ152 |
82620-60060 |
US $53.14 |
||
|
82620B
|
82620B
82620-60070 Block Assy, Fusible LinkFUSIBLE LINK [11.2013 -] GRJ152,TRJ152 |
82620-60070 |
US $25.19 |
||
|
82641
|
82641
82641-60080 Relay, Integration No.1INTEGRATION NO.1 [11.2013 -] GRJ152,TRJ152 |
82641-60080 |
from US $89.11 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[11.2013 -] GRJ152,TRJ152 |
82660-0H070 |
US $6.99 |
||
|
82662A
|
82662A
82662-60800
Cover, Relay Block, Upper, No.1
[09.2015 -] TRJ152 |
82662-60800 |
— | ||
|
82662B
|
82662B
82662-60380 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [09.2015 -] TRJ152..6FC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
82662-60380 |
US $7.16 |
||
|
82663
|
82663
82663-60080 Cover, Relay Block, LowerRELAY BLOCK, LOWER [11.2013 -] GRJ152,TRJ152 |
82663-60080 |
from US $44.73 |
||
|
82741
|
82741
82741-60040 Block, Engine Room Relay (EMPTY)[11.2013 -] GRJ152,TRJ152 |
82741-60040 |
from US $69.89 |
||
|
82824L
|
82824L
82824-41010 Pin, Short[11.2013 -] GRJ152,TRJ152 |
82824-41010 |
from US $3.24 |
||
|
85910G
|
85910G
90987-T2005
Relay, Water Pump
[09.2015 -] TRJ152 |
90987-T2005 |
— | ||
|
85910X
|
85910X
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
85912
|
85912
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
85916C
|
85916C
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
85916L
|
85916L
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2004 |
— | ||
|
85934
|
85934
90987-02028 Relay, Water Pump[11.2013 -] GRJ152,TRJ152 |
90987-02028 |
from US $44.54 |
||
|
85934A
|
85934A
90987-T2005
Relay, Water Pump
[03.2015 -] TRJ152..6FC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
90987-T2005 |
— | ||
|
85941A
|
85941A
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
86220A
|
86220A
90987-T2005
Relay, Water Pump
[11.2013 -] TRJ152;GRJ152..VX; GRJ152..TX TX-L PACKAGE; GRJ152..TX TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER |
90987-T2005 |
— | ||
|
86530A
|
86530A
90987-T2005
Relay, Water Pump
[11.2013 -] GRJ152,TRJ152 |
90987-T2005 |
— | ||
|
87346K
|
87346K
90987-T2004
Relay, Water Pump
[09.2015 -] TRJ152..6FC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
90987-T2004 |
— | ||
|
8271260850
|
8271260850
82712-60850
Hose, Suction
|
82712-60850 |
— |
