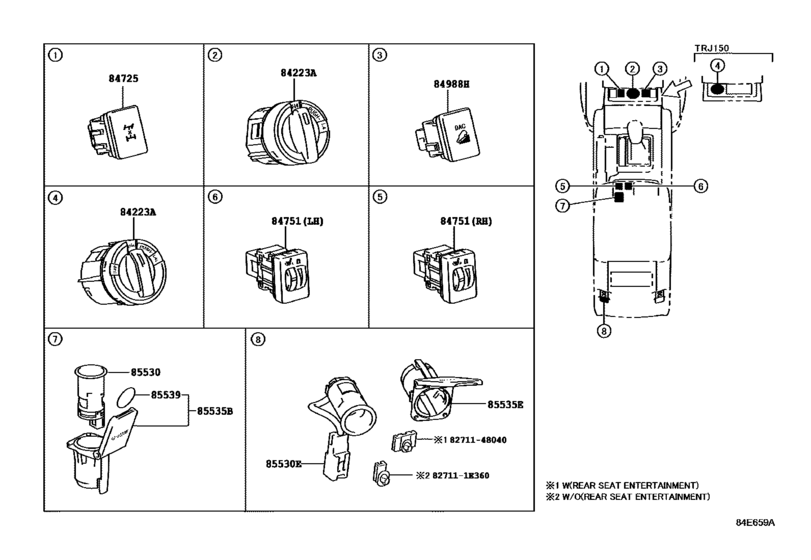

Switch & Relay & Computer ([11.2013 - ] INSTRUMENT PANEL 2/2 (1311- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TRJ152
- grade
- TX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 150
- From
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Land Cruiser Prado
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84223A
|
84223A
84223-60030
Switch, Transfer Position
[03.2015 -] TRJ152 |
84223-60030 |
— | ||
| replacement | |||||
|
84223A
|
84223A
8422360150 SWITCH TRANSFER[03.2015 -] TRJ152 |
8422360150 |
from US $90.27 |
||
|
84751
|
84751
84751-0G051
Switch, Seat Heater
[03.2015 -] TRJ152;GRJ152..VX RH; GRJ152..TX TX-L PACKAGE,RH |
84751-0G051 |
— | ||
|
84751
|
84751
84751-0G061
Switch, Seat Heater
[03.2015 -] TRJ152;GRJ152..VX LH; GRJ152..TX TX-L PACKAGE,LH |
84751-0G061 |
— | ||
|
85530
|
85530
85530-0N010
Socket Assy, Power Outlet, No.1
[11.2013 -] GRJ152,TRJ152 |
85530-0N010 |
— | ||
|
85530E
|
85530E
85530-0G020
Socket Assy, Power Outlet, No.3
[11.2013 -] GRJ152,TRJ152 |
85530-0G020 |
— | ||
|
85535B
|
85535B
85535-0G010
Cover, Power Outlet Socket, No.1
[11.2013 -] GRJ152,TRJ152 |
85535-0G010 |
— | ||
|
85535E
|
85535E
85535-0G020
Cover, Power Outlet Socket, No.2
[11.2013 -] GRJ152,TRJ152 |
85535-0G020 |
— | ||
|
85539
|
85539
85539-0G010
Label, Power Outlet Notice
[11.2013 -] GRJ152,TRJ152 |
85539-0G010 |
— | ||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $0.96 |
||
|
8271148040
|
8271148040
82711-48040 Wire, Fuse To Fuse(for Combustion Heater) |
82711-48040 |
US $3.93 |
||
