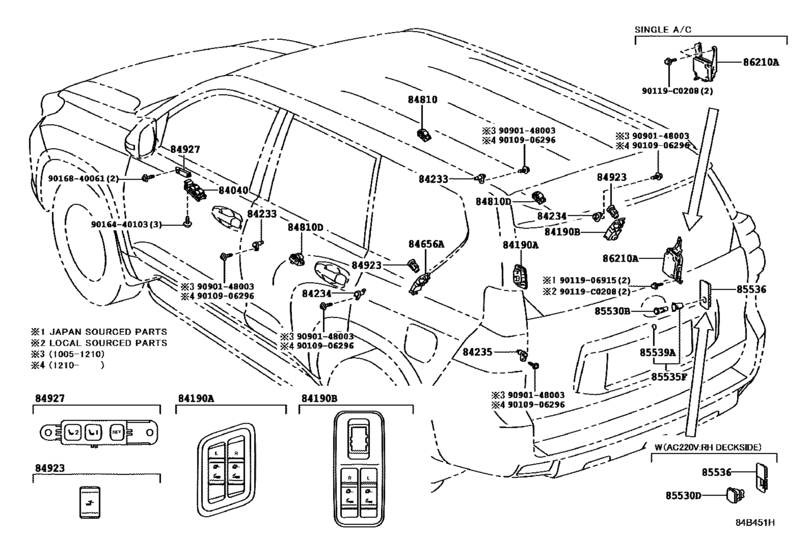

Switch & Relay & Computer ([05.2010 - ] DOOR & ROOF (1005- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TRJ152
- grade
- TX
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 150
- From
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Land Cruiser Prado
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-60190 Master Switch Assy,multiplex Network[11.2013 -] GRJ152,TRJ152 |
84040-60190 |
US $227.08 |
||
|
84233
|
84233
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[11.2013 -] GRJ152,TRJ152 |
84231-02130 |
— | ||
|
84234
|
84234
84231-02160
Switch Assy, Courtesy Lamp (For Front Door)
[11.2013 -] GRJ152,TRJ152 |
84231-02160 |
— | ||
|
84235
|
84235
84231-02130
Switch Assy, Courtesy Lamp (For Front Door)
[11.2013 -] GRJ152,TRJ152 |
84231-02130 |
— | ||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[11.2013 -] GRJ152,TRJ152 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[11.2013 -] GRJ152,TRJ152 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[11.2013 -] GRJ152,TRJ152 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[11.2013 -] GRJ152,TRJ152 |
84810-06090 |
US $211.68 |
||
|
85530D
|
85530D
85530-60170-A1
Socket Assy, Power Outlet, No.2
[11.2013 -] TRJ152;GRJ152..VX FLAXEN,TRIM0#; GRJ152..TX TX-L PACKAGE,FLAXEN,TRIM0# |
85530-60170-A1 |
— | ||
|
85530D
|
85530D
85530-60170-C0
Socket Assy, Power Outlet, No.2
[11.2013 -] TRJ152;GRJ152..VX BLACK,TRIM2#; GRJ152..TX TX-L PACKAGE,BLACK,TRIM2# |
85530-60170-C0 |
— | ||
|
85536
|
85536
85536-60100-A1
Bezel, Power Outlet Socket
[11.2013 -] TRJ152;GRJ152..VX FLAXEN,TRIM0#; GRJ152..TX TX-L PACKAGE,FLAXEN,TRIM0# |
85536-60100-A1 |
— | ||
|
85536
|
85536
85536-60100-C0
Bezel, Power Outlet Socket
[11.2013 -] TRJ152;GRJ152..VX BLACK,TRIM2#; GRJ152..TX TX-L PACKAGE,BLACK,TRIM2# |
85536-60100-C0 |
— | ||
|
86210A
|
86210A
86210-60070
Inverter Assy, Voltage
[03.2015 -] TRJ152 |
86210-60070 |
— | ||
|
86210A
|
86210A
86210-60110
Inverter Assy, Voltage
[03.2015 -] TRJ152..6FC REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT MANUAL |
86210-60110 |
— | ||
|
90119C0208
|
90119C0208
90119-C0208
New Genuine Part
|
90119-C0208 |
— | ||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.88 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
