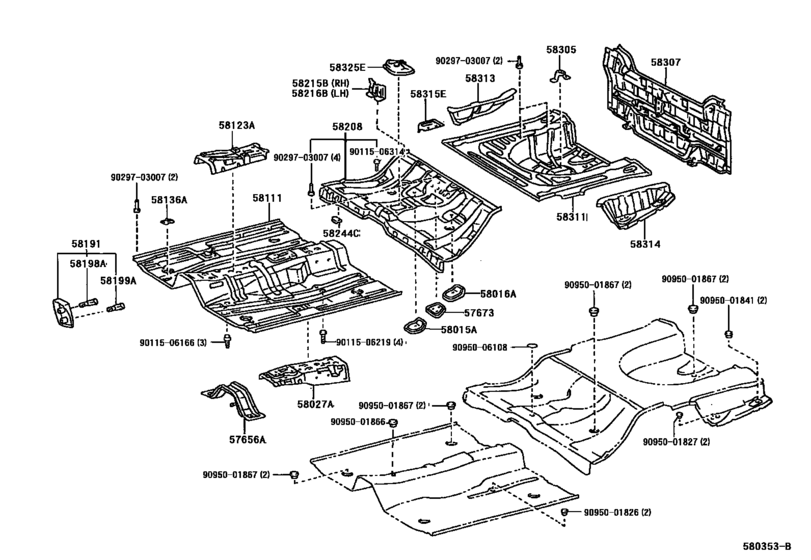

Floor Pan & Lower Back Panel ([05.1995 - ] (9505- )) Diagram Toyota LEVIN/ CERES/ TRUENO/ MARINO
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- BZR
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- TRUENO
- From
- 04.1997
- To
- 08.2000
- Gear Shift Type
- 6F
- Vehicle Model
- Trueno
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57673
|
57673
57673-12080 Bracket, Rear Seat Back Hinge Mounting[04.1997 - 08.2000] AE11# |
57673-12080 |
US $6.84 |
||
|
58015A
|
58015A
58015-12050 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[04.1997 - 08.2000] AE11# |
58015-12050 |
US $24.61 |
||
|
58016A
|
58016A
58016-12020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[04.1997 - 08.2000] AE11# |
58016-12020 |
US $24.61 |
||
|
58027A
|
58027A
58027-12121 Reinforce Sub-Assy, Seat Belt Anchor[04.1997 - 08.2000] AE11# |
58027-12121 |
US $66.98 |
||
|
58111
|
58111
58111-12262 Pan, Front Floor[04.1997 - 08.2000] AE11# |
58111-12262 |
US $612.98 |
||
|
58123A
|
58123A
58013-12060 Panel Sub-Assy, Front Floor, Rear Upper[04.1997 - 08.2000] AE11# |
58013-12060 |
US $58.82 |
||
|
58136A
|
58136A
58136-12030 Cover, Front Floor Hole[04.1997 - 08.2000] AE11# |
58136-12030 |
US $3.35 |
||
|
58191
|
58191
58191-12110
Footrest, Front Floor
[04.1997 - 08.2000] AE11# |
58191-12110 |
— | ||
|
58198A
|
58198A
58198-12030
Clip, Footrest
[04.1997 - 08.2000] AE11# |
58198-12030 |
— | ||
|
58199A
|
58199A
58199-12020 Clip, Footrest, No.2[04.1997 - 08.2000] AE11# |
58199-12020 |
US $5.24 |
||
|
58208
|
58208
58211-12904 Pan, Center Floor[04.1997 - 08.2000] AE11# |
58211-12904 |
US $381.47 |
||
|
58215B
|
58215B
58215-12041 Bracket, Rear Seat Mounting, Rh[04.1997 - 08.2000] AE11# |
58215-12041 |
US $13.69 |
||
|
58216B
|
58216B
58216-12040 Bracket, Rear Seat Mounting, Lh[04.1997 - 08.2000] AE11# |
58216-12040 |
US $13.69 |
||
|
58244C
|
58244C
58244-13030 Bracket, Rear Seat Cushion Mounting[04.1997 - 08.2000] AE11# |
58244-13030 |
US $2.91 |
||
|
58305
|
58305
58351-12040 Bracket Sub-Assy, Spare Wheel Clamp[04.1997 - 08.2000] AE11# |
58351-12040 |
US $8.04 |
||
|
58307
|
58307
58307-1A400 Panel Sub-Assy, Body Lower Back[04.1997 - 08.2000] AE11# |
58307-1A400 |
US $270.82 |
||
|
58311
|
58311
58311-12210
Pan, Rear Floor
[04.1997 - 08.2000] AE11# |
58311-12210 |
— | ||
|
58313
|
58313
58313-12905
Panel, Rear Floor Side, Rh
[04.1997 - 08.2000] AE11# |
58313-12905 |
— | ||
|
58314
|
58314
58314-12280
Panel, Rear Floor Side, Lh
[04.1997 - 08.2000] AE11# |
58314-12280 |
— | ||
|
58315E
|
58315E
58315-12070 Extension Rear Floor Side Panel, Front Rh[04.1997 - 08.2000] AE11# |
58315-12070 |
US $12.67 |
||
|
58325E
|
58325E
58325-12091 Cover, Rear Floor Service Hole[04.1997 - 08.2000] AE11# |
58325-12091 |
US $17.47 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506314
|
9011506314
90115-06314 New Genuine Part |
90115-06314 |
US $1.46 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001827
|
9095001827
90950-01827 PLUG HOLE |
90950-01827 |
from US $2.91 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001867
|
9095001867
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
