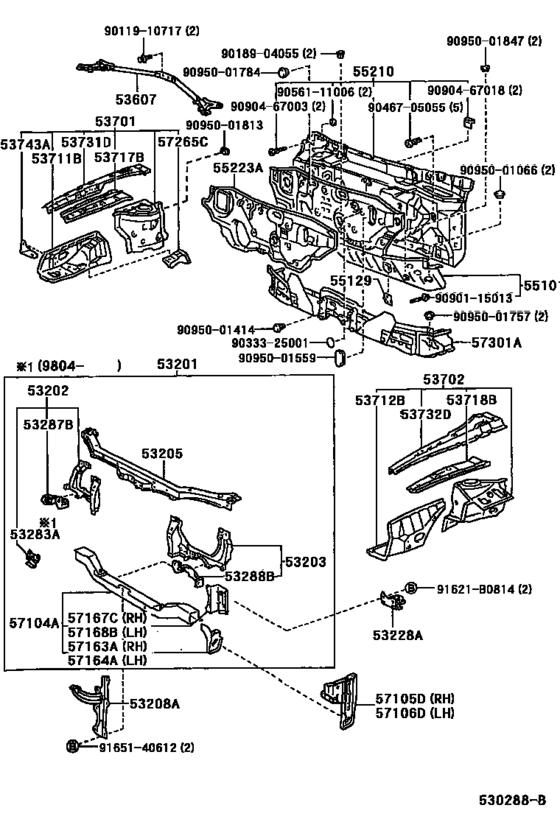

Front Fender Apron & Dash Panel ([05.1995 - ] (9505- )) Diagram Toyota LEVIN/ CERES/ TRUENO/ MARINO
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- BZG
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- ATM
- Model
- TRUENO
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Trueno
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-1A090 Support Sub-Assy, Radiator[05.1995 - 04.1997] AE11# |
53201-1A090 |
US $429.52 |
||
|
53201
|
53201
53201-1A150 Support Sub-Assy, Radiator[04.1997 - 04.1998] AE11# |
53201-1A150 |
US $429.52 |
||
|
53201
|
53201
53201-1A151 Support Sub-Assy, Radiator[04.1998 - 08.2000] AE11# |
53201-1A151 |
US $432.43 |
||
|
53202
|
53202
53202-12360 Support Sub-Assy, Radiator, Rh[05.1995 - 04.1997] AE11# |
53202-12360 |
US $41.20 |
||
|
53202
|
53202
53202-12361
Support Sub-Assy, Radiator, Rh
[04.1998 - 08.2000] AE11# |
53202-12361 |
— | ||
|
53203
|
53203
53203-12310 Support Sub-Assy, Radiator, Lh[05.1995 - 04.1997] AE11# |
53203-12310 |
US $41.20 |
||
|
53203
|
53203
53203-12311 Support Sub-Assy, Radiator, Lh[04.1998 - 08.2000] AE11# |
53203-12311 |
US $41.20 |
||
|
53205
|
53205
53205-12160 Support Sub-Assy, Radiator, Upper[05.1995 - 01.1997] AE11# |
53205-12160 |
US $144.14 |
||
| replacement | |||||
|
53205
|
53205
53205-12161
Support Sub-Assy, Radiator, Upper
[05.1995 - 01.1997] AE11# |
53205-12161 |
— | ||
|
53205
|
53205
53205-12161
Support Sub-Assy, Radiator, Upper
[01.1997 - 04.1997] AE11# |
53205-12161 |
— | ||
|
53208A
|
53208A
53208-12430 Support Sub-Assy, Hood Lock[05.1995 - 04.1997] AE11# |
53208-12430 |
US $28.97 |
||
| replacement | |||||
|
53208A
|
53208A
53208-12460 Support Sub-Assy, Hood Lock[05.1995 - 04.1997] AE11# |
53208-12460 |
US $29.27 |
||
|
53208A
|
53208A
53208-12460 Support Sub-Assy, Hood Lock[04.1997 - 08.2000] AE11# |
53208-12460 |
US $29.27 |
||
|
53228A
|
53228A
53228-12130 Bracket, Radiator Mounting, Lower No.1[05.1995 - 04.1997] AE11# |
53228-12130 |
US $13.40 |
||
|
53283A
|
53283A
53283-12010 Reinforcement, Radiator Support, Lower[04.1998 - 08.2000] AE11# |
53283-12010 |
US $11.21 |
||
|
53287B
|
53287B
53287-12050 Extension, Radiator Support, Rh[05.1995 - 04.1997] AE11# |
53287-12050 |
US $9.90 |
||
|
53288B
|
53288B
53288-12050 Extension, Radiator Support, Lh[05.1995 - 04.1997] AE11# |
53288-12050 |
US $9.90 |
||
|
53607
|
53607
53607-12040
Brace Sub-Assy, Front Suspension Upper To Cowl, Rh
[05.1995 - 04.1997] AE111..BZG,BZV |
53607-12040 |
— | ||
|
53701
|
53701
53701-1A052 Apron Sub-Assy, Front Fender, Rh[05.1995 - 04.1997] AE11# |
53701-1A052 |
US $353.81 |
||
|
53702
|
53702
53702-1A042 Apron Sub-Assy, Front Fender, Lh[05.1995 - 04.1997] AE11# |
53702-1A042 |
US $353.81 |
||
|
53711B
|
53711B
53711-12902 Apron, Front Fender, Front Rh[05.1995 - 04.1997] AE11# |
53711-12902 |
US $69.63 |
||
|
53712B
|
53712B
53712-12182 Apron, Front Fender, W/support, Front Lh[05.1995 - 04.1997] AE11# |
53712-12182 |
US $82.99 |
||
|
53717B
|
53717B
53717-12051 Gusset, Fender Apron, Rh[05.1995 - 04.1997] AE11# |
53717-12051 |
US $30.58 |
||
|
53718B
|
53718B
53718-12051 Gusset, Fender Apron, Lh[05.1995 - 04.1997] AE11# |
53718-12051 |
US $30.58 |
||
|
53731D
|
53731D
53731-12150 Member, Front Apron To Cowl Side, Upper Rh[05.1995 - 04.1997] AE11# |
53731-12150 |
US $53.58 |
||
|
53732D
|
53732D
53732-12130 Member, Front Apron To Cowl Side, Upper Lh[05.1995 - 04.1997] AE11# |
53732-12130 |
US $53.58 |
||
|
53743A
|
53743A
53743-12040 Reinforcement, Front Fender Apron, Front Rh[04.1997 - 08.2000] AE11# |
53743-12040 |
US $11.07 |
||
|
55101
|
55101
55101-1E270 Panel Sub-Assy, Dash[05.1995 - 04.1997] AE11#..4FC |
55101-1E270 |
US $401.86 |
||
| replacements | |||||
|
55101
|
55101
55101-1E250 Panel Sub-Assy, Dash[05.1995 - 04.1997] AE11#..4FC |
55101-1E250 |
US $403.31 |
||
|
55101
|
55101
90333-40001 Plate, Noise Control, No.1[05.1995 - 04.1997] AE11#..4FC |
90333-40001 |
from US $1.60 |
||
|
55101
|
55101
55101-1E590 Panel Sub-Assy, Dash[04.1997 - 08.2000] AE111..(BZG,BZV)..4FC |
55101-1E590 |
US $403.31 |
||
| replacements | |||||
|
55101
|
55101
55101-1E510 Panel Sub-Assy, Dash[04.1997 - 08.2000] AE111..(BZG,BZV)..4FC |
55101-1E510 |
US $403.31 |
||
|
55101
|
55101
90333-35002 Plug, Hole(For Rear Door Panel)[04.1997 - 08.2000] AE111..(BZG,BZV)..4FC |
90333-35002 |
US $1.28 |
||
|
55101
|
55101
90333-40001 Plate, Noise Control, No.1[04.1997 - 08.2000] AE111..(BZG,BZV)..4FC |
90333-40001 |
from US $1.60 |
||
|
55129
|
55129
55129-12030 Cover, Dash Panel Hole[05.1995 - 04.1997] AE11# |
55129-12030 |
US $6.41 |
||
|
55210
|
55210
55210-12440 Insulator Assy, Dash Panel[05.1995 - 04.1997] AE11# |
55210-12440 |
US $285.38 |
||
|
55223A
|
55223A
55223-12071 Insulator, Dash Panel, Outer[05.1995 - 04.1997] AE111..BZG,BZV |
55223-12071 |
US $90.27 |
||
| replacement | |||||
|
55223A
|
55223A
55223-12072
Insulator, Dash Panel, Outer
[05.1995 - 04.1997] AE111..BZG,BZV |
55223-12072 |
— | ||
|
55223A
|
55223A
55223-12072
Insulator, Dash Panel, Outer
[05.1999 - 08.2000] AE111..BZG,BZR,BZV |
55223-12072 |
— | ||
|
57104A
|
57104A
57104-12030 Member Sub-Assy, Front Cross[05.1995 - 04.1997] AE11# |
57104-12030 |
US $189.28 |
||
|
57104A
|
57104A
57104-12080 Member Sub-Assy, Front Cross[05.1998 - 08.2000] AE11# |
57104-12080 |
US $164.53 |
||
|
57104A
|
57104A
57104-12090 Member Sub-Assy, Front Cross[04.1997 - 05.1998] AE11# |
57104-12090 |
US $164.53 |
||
| replacement | |||||
|
57104A
|
57104A
57104-12080 Member Sub-Assy, Front Cross[04.1997 - 05.1998] AE11# |
57104-12080 |
US $164.53 |
||
|
57105D
|
57105D
57105-12080 Plate Sub-Assy, Front Side Member, Rh[05.1995 - 04.1997] AE11# |
57105-12080 |
US $32.18 |
||
|
57105D
|
57105D
57105-12120 Plate Sub-Assy, Front Side Member, Rh[04.1997 - 10.1999] AE11# |
57105-12120 |
US $32.47 |
||
| replacement | |||||
|
57105D
|
57105D
57105-12121 Plate Sub-Assy, Front Side Member, Rh[04.1997 - 10.1999] AE11# |
57105-12121 |
US $32.47 |
||
|
57105D
|
57105D
57105-12130 Plate Sub-Assy, Front Side Member, Rh[10.1999 - 08.2000] AE11# |
57105-12130 |
US $32.61 |
||
|
57106D
|
57106D
57106-12080 Plate Sub-Assy, Front Side Member, Lh[05.1995 - 04.1997] AE11# |
57106-12080 |
US $32.18 |
||
|
57106D
|
57106D
57106-12110 Plate Sub-Assy, Front Side Member, Lh[04.1997 - 08.2000] AE11# |
57106-12110 |
from US $32.61 |
||
|
57163A
|
57163A
57163-12120 Reinforcement, Front Crossmember, No.1 Rh[05.1995 - 04.1997] AE11# |
57163-12120 |
US $25.77 |
||
|
57163A
|
57163A
57163-12130 Reinforcement, Front Crossmember, No.1 Rh[04.1997 - 08.2000] AE11# |
57163-12130 |
US $28.54 |
||
|
57164A
|
57164A
57164-12070 Reinforcement, Front Crossmember, No.1 Lh[05.1995 - 04.1997] AE11# |
57164-12070 |
US $25.77 |
||
|
57164A
|
57164A
57164-12080 Reinforcement, Front Crossmember, No.1 Lh[04.1997 - 08.2000] AE11# |
57164-12080 |
US $28.54 |
||
|
57167C
|
57167C
57167-12100 Gusset, Front Crossmember Side, Rh[05.1995 - 04.1997] AE11# |
57167-12100 |
US $18.20 |
||
|
57168B
|
57168B
57168-12100 Gusset, Front Crossmember Side, Lh[05.1995 - 04.1997] AE11# |
57168-12100 |
US $18.20 |
||
|
57265C
|
57265C
57265-12050 Bracket, Engine Mounting, Rh[05.1995 - 04.1997] AE11# |
57265-12050 |
US $18.35 |
||
|
57301A
|
57301A
57301-12150 Member Sub-Assy, Steering Gear Box Support[05.1995 - 04.1997] AE11#..BZG,FZ,XZ |
57301-12150 |
US $538.72 |
||
| replacements | |||||
|
57301A
|
57301A
57301-12180 Member Sub-Assy, Steering Gear Box Support[05.1995 - 04.1997] AE11#..BZG,FZ,XZ |
57301-12180 |
US $540.18 |
||
|
57301A
|
57301A
94223-80600 Retainer, Rear Door Open Switch Set, Rh[05.1995 - 04.1997] AE11#..BZG,FZ,XZ |
94223-80600 |
US $1.12 |
||
|
57301A
|
57301A
57301-12170 Member Sub-Assy, Steering Gear Box Support[05.1995 - 04.1997] AE111..BZV; AE111..BZG ｱﾘ(ｽ-ﾊﾟ-ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
57301-12170 |
US $532.90 |
||
|
57301A
|
57301A
57301-13010 Member Sub-Assy, Steering Gear Box Support[04.1997 - 08.2000] AE11#..BZG,FZ,XZ |
57301-13010 |
US $521.25 |
||
|
91621B0814
|
91621B0814
91621-B0814
Bolt (For Transmission Control Cable Bracket)
|
91621-B0814 |
— | ||
| replacement | |||||
|
91621B0814
|
91621B0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.82 |
||
|
9011910717
|
9011910717
90119-10717 New Genuine Part |
90119-10717 |
US $2.33 |
||
|
9018904055
|
9018904055
90189-04055 New Genuine Part |
90189-04055 |
US $1.44 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9046705055
|
9046705055
90467-05055 New Genuine Part |
90467-05055 |
US $3.20 |
||
|
9056111006
|
9056111006
90561-11006 New Genuine Part |
90561-11006 |
US $1.75 |
||
|
9090115013
|
9090115013
90901-15013 New Genuine Part |
90901-15013 |
US $0.87 |
||
|
9090467003
|
9090467003
90904-67003 New Genuine Part |
90904-67003 |
US $3.49 |
||
|
9090467018
|
9090467018
90904-67018 New Genuine Part |
90904-67018 |
US $4.22 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.16 |
||
|
9095001414
|
9095001414
90950-01414 Plug, Hole(For Front Suspension Lower Arm) |
90950-01414 |
US $2.80 |
||
|
9095001559
|
9095001559
90950-01559 Grommet, (For Cooler Pipe) |
90950-01559 |
US $2.48 |
||
|
9095001757
|
9095001757
90950-01757 New Genuine Part |
90950-01757 |
US $2.62 |
||
|
9095001784
|
9095001784
90950-01784 New Genuine Part |
90950-01784 |
US $3.04 |
||
|
9095001813
|
9095001813
90950-01813 New Genuine Part |
90950-01813 |
US $1.60 |
||
|
9095001847
|
9095001847
90950-01847
New Genuine Part
|
90950-01847 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
