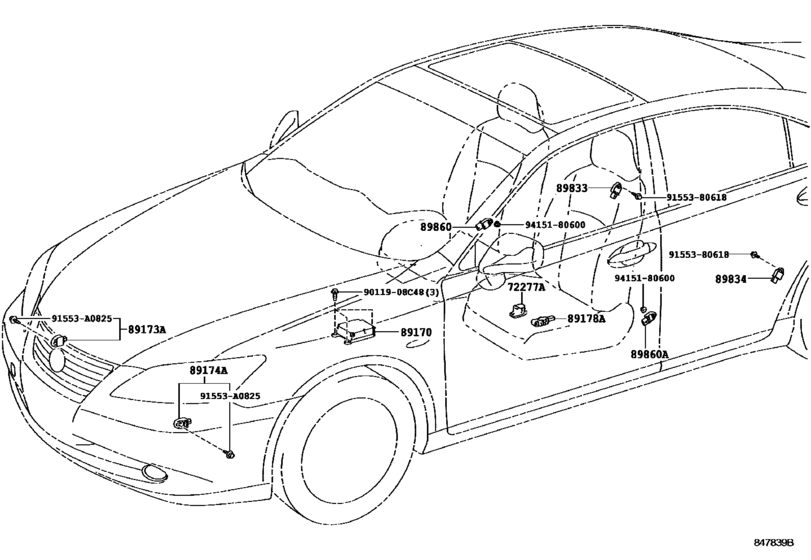

Air Bag ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72277A
|
72277A
72277-33021 Protector, Seat Slide Position Sensor[08.2009 -] ACV40,GSV40 |
72277-33021 |
US $5.53 |
||
|
89170
|
89170
89170-33580
Sensor Assy, Air Bag
[08.2009 - 06.2012] ACV40,GSV40 |
89170-33580 |
— | ||
|
89173A
|
89173A
89173-39435
Sensor, Air Bag, Front Rh
[08.2009 -] ACV40,GSV40 |
89173-39435 |
— | ||
|
89174A
|
89174A
89173-39435
Sensor, Air Bag, Front Rh
[08.2009 -] ACV40,GSV40 |
89173-39435 |
— | ||
|
89178A
|
89178A
89178-33050 Sensor, Seat Position Air Bag[08.2009 -] ACV40,GSV40 |
89178-33050 |
from US $33.83 |
||
|
89833
|
89833
89831-30020 Sensor, Air Bag, Rear Rh[08.2009 -] ACV40,GSV40 |
89831-30020 |
from US $108.62 |
||
|
89834
|
89834
89831-30020 Sensor, Air Bag, Rear Rh[08.2009 -] ACV40,GSV40 |
89831-30020 |
from US $108.62 |
||
|
89860
|
89860
89831-30010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2009 -] ACV40,GSV40 |
89831-30010 |
US $122.30 |
||
|
89860A
|
89860A
89831-30010 Sensor Assy, Side Air Bag, RhSIDE AIR BAG, RH [08.2009 -] ACV40,GSV40 |
89831-30010 |
US $122.30 |
||
|
91553A0825
|
91553A0825
91553-A0825 BOLTFLANGE |
91553-A0825 |
US $2.33 |
||
|
9011908C48
|
9011908C48
90119-08C48
Direct
|
90119-08C48 |
— | ||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
