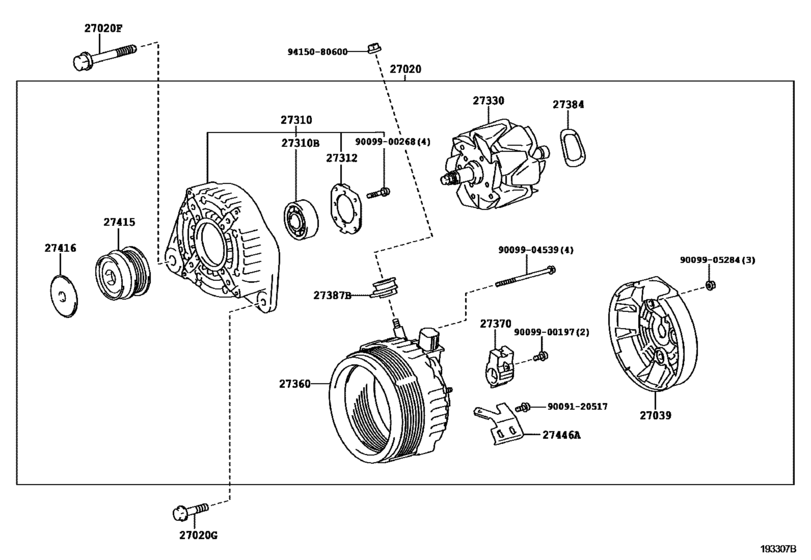

Alternator ([08.2009 - ] 12V 130A (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-28370
Alternator Assy
[08.2009 -] 2AZFE..ACV40 12V 130A |
27060-28370 |
— | ||
|
27020F
|
27020F
91512-81085 Bolt(For Alternator)[08.2009 - 06.2012] 2AZFE..ACV40 |
91512-81085 |
from US $0.84 |
||
|
27020G
|
27020G
91551-80840 Bolt(For Head To Camshaft Bearing Cap)[08.2009 -] 2AZFE..ACV40 |
91551-80840 |
US $2.15 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
27039-31390 |
— | ||
|
27310
|
27310
27310-28120
Frame Assy, Drive End, Alternator
[08.2009 -] 2AZFE..ACV40 |
27310-28120 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
90099-10223 |
from US $10.15 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
27312-72100 |
— | ||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
27330-33090 |
US $193.94 |
||
|
27360
|
27360
27360-28320
Coil Assy, Alternator
[08.2009 -] 2AZFE..ACV40 |
27360-28320 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[08.2009 -] 2AZFE..ACV40 |
27370-58460 |
from US $14.61 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[08.2009 -] 2AZFE,2GRFE..ACV40,GSV40 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W041
Pulley, Alternator W/clutch
[08.2009 - 06.2012] 2AZFE..ACV40 |
27415-0W041 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W042 Pulley, Alternator W/clutch[08.2009 - 06.2012] 2AZFE..ACV40 |
27415-0W042 |
from US $57.10 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[08.2009 - 06.2012] 2AZFE..ACV40 |
27416-0W050 |
from US $3.74 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[08.2009 - 06.2012] 2AZFE..ACV40 |
27416-0W020 |
US $6.09 |
||
|
27446A
|
27446A
27446-28120
Clip, Alternator Cord
[08.2009 -] 2AZFE..ACV40 |
27446-28120 |
— | ||
|
9009120517
|
9009120517
90091-20517
New Genuine Part
|
90091-20517 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.39 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
