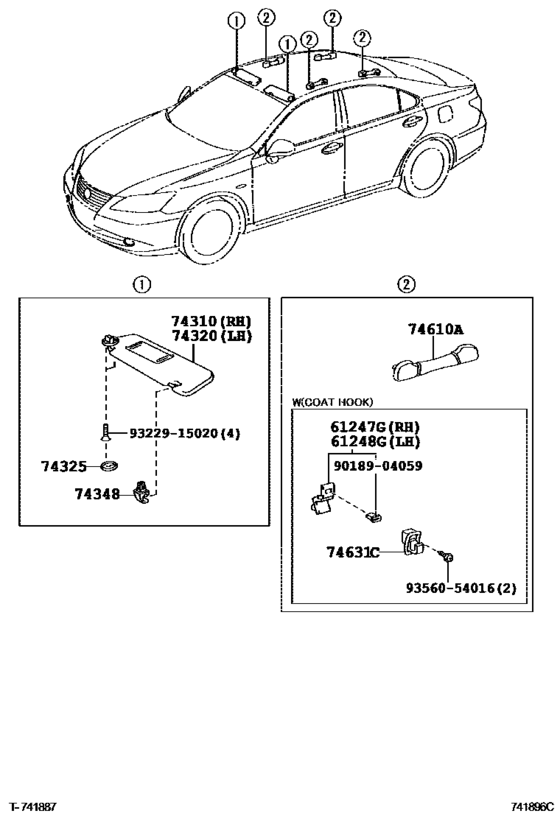

Armrest & Visor ([05.2006 - ] VISOR & ASSIST GRIP (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61247G
|
61247G
61247-33030
Reinforcement, Roof Side Rail, Inner Rh
[08.2009 -] ACV40,GSV40 |
61247-33030 |
— | ||
|
61248G
|
61248G
61248-33030
Reinforcement, Roof Side Rail, Inner Lh
[08.2009 -] ACV40,GSV40 |
61248-33030 |
— | ||
|
74310
|
74310
74310-33B80-A0
Visor Assy, Rh
[08.2009 - 11.2011] ACV40,GSV40..CHI IVORY,TRIM0# |
74310-33B80-A0 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-33B82-A0
Visor Assy, Rh
[08.2009 - 11.2011] ACV40,GSV40..CHI IVORY,TRIM0# |
74310-33B82-A0 |
— | ||
|
74310
|
74310
74310-33B80-B0
Visor Assy, Rh
[08.2009 - 11.2011] ACV40,GSV40..CHI LT.GRAY,TRIM1#,2# |
74310-33B80-B0 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-33B82-B0
Visor Assy, Rh
[08.2009 - 11.2011] ACV40,GSV40..CHI LT.GRAY,TRIM1#,2# |
74310-33B82-B0 |
— | ||
|
74310
|
74310
74310-33B81-A0
Visor Assy, Rh
[11.2011 - 06.2012] ACV40,GSV40..CHI IVORY,TRIM0# |
74310-33B81-A0 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-33B82-A0
Visor Assy, Rh
[11.2011 - 06.2012] ACV40,GSV40..CHI IVORY,TRIM0# |
74310-33B82-A0 |
— | ||
|
74310
|
74310
74310-33B81-B0
Visor Assy, Rh
[11.2011 - 06.2012] ACV40,GSV40..CHI LT.GRAY,TRIM1#,2# |
74310-33B81-B0 |
— | ||
| replacement | |||||
|
74310
|
74310
74310-33B82-B0
Visor Assy, Rh
[11.2011 - 06.2012] ACV40,GSV40..CHI LT.GRAY,TRIM1#,2# |
74310-33B82-B0 |
— | ||
|
74320
|
74320
74320-33B20-A1
Visor Assy, Lh
[08.2009 - 11.2011] ACV40,GSV40 IVORY,TRIM0# |
74320-33B20-A1 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-33B22-A1
Visor Assy, Lh
[08.2009 - 11.2011] ACV40,GSV40 IVORY,TRIM0# |
74320-33B22-A1 |
— | ||
|
74320
|
74320
74320-33B20-B0
Visor Assy, Lh
[08.2009 - 11.2011] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74320-33B20-B0 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-33B22-B0
Visor Assy, Lh
[08.2009 - 11.2011] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74320-33B22-B0 |
— | ||
|
74320
|
74320
74320-33B21-A1
Visor Assy, Lh
[11.2011 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74320-33B21-A1 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-33B22-A1
Visor Assy, Lh
[11.2011 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74320-33B22-A1 |
— | ||
|
74320
|
74320
74320-33B21-B0
Visor Assy, Lh
[11.2011 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74320-33B21-B0 |
— | ||
| replacement | |||||
|
74320
|
74320
74320-33B22-B0
Visor Assy, Lh
[11.2011 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74320-33B22-B0 |
— | ||
|
74325
|
74325
74317-60020-A4 Cover, Visor Bracket, RhVISOR BRACKET [08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74317-60020-A4 |
US $2.91 |
||
|
74325
|
74325
74317-60020-B1 Cover, Visor Bracket, Rh[08.2009 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74317-60020-B1 |
US $3.94 |
||
|
74348
|
74348
74348-12040-A5 Holder, VisorVISOR [08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74348-12040-A5 |
US $8.44 |
||
|
74348
|
74348
74348-12040-B0 Holder, Visor[08.2009 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74348-12040-B0 |
from US $5.91 |
||
|
74610A
|
74610A
74610-53030-A1 Grip Sub-Assy, AssistASSIST [08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74610-53030-A1 |
from US $28.65 |
||
|
74610A
|
74610A
74610-53030-B0 Grip Sub-Assy, Assist[08.2009 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74610-53030-B0 |
from US $32.91 |
||
|
74631C
|
74631C
74605-50030-A4 Hook, CoatCOAT [08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
74605-50030-A4 |
US $10.77 |
||
|
74631C
|
74631C
74605-50030-B2 Hook, CoatCOAT [08.2009 - 06.2012] ACV40,GSV40 LT.GRAY,TRIM1#,2# |
74605-50030-B2 |
US $10.77 |
||
|
9018904059
|
9018904059
90189-04059 CLIP |
90189-04059 |
from US $0.59 |
||
|
9322915020
|
9322915020
93229-15020 SCREW |
93229-15020 |
from US $0.72 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $1.08 |
||
