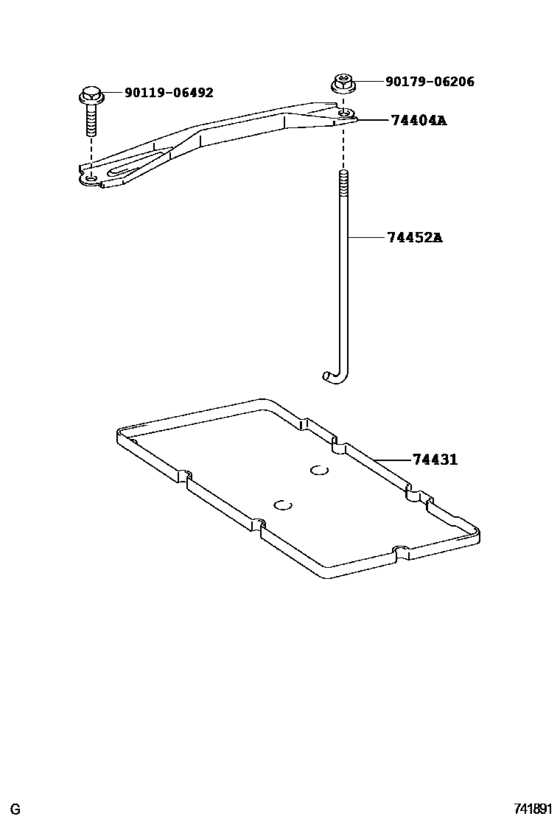

Battery Carrier ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-33100 Clamp Sub-Assy, Battery[08.2009 -] ACV40,GSV40 |
74404-33100 |
from US $19.48 |
||
|
74431
|
74431
74431-33011 Tray, Battery[08.2009 -] ACV40,GSV40 |
74431-33011 |
from US $26.75 |
||
|
74452A
|
74452A
74452-33010 Bolt, Battery Clamp[08.2009 -] ACV40,GSV40 |
74452-33010 |
from US $3.55 |
||
|
9011906492
|
9011906492
90119-06492 BOLT |
90119-06492 |
from US $0.76 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.76 |
