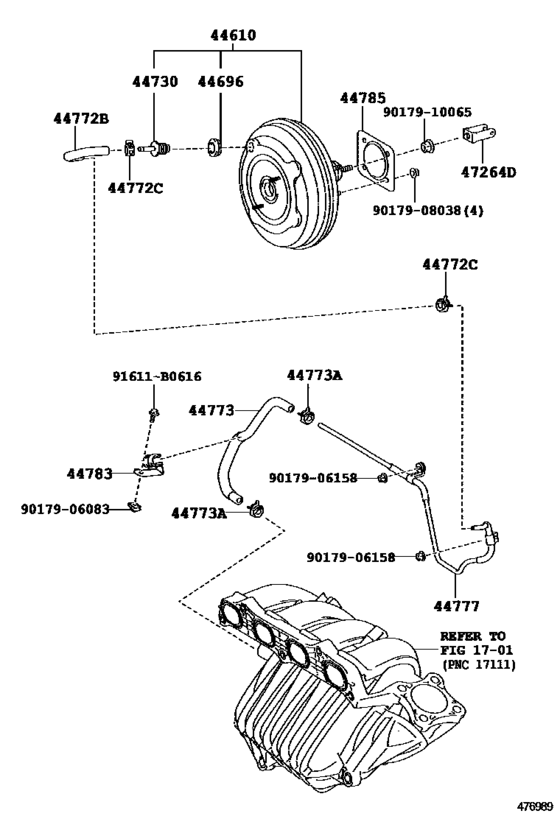

Brake Booster & Vacuum Tube ([08.2009 - ] (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-33791
Booster Assy, Brake
[08.2009 -] ACV40,GSV40 |
44610-33791 |
— | ||
|
44696
|
44696
90480-24015 Grommet, Check Valve[08.2009 -] ACV40,GSV40 |
90480-24015 |
from US $2.28 |
||
|
44730
|
44730
44730-28030 Valve Assy, Vacuum Check(For Brake)[08.2009 -] ACV40,GSV40 |
44730-28030 |
from US $22.85 |
||
|
44772B
|
44772B
44772-33150
Hose, Check Valve To Brake Booster
[08.2009 -] ACV40 |
44772-33150 |
— | ||
|
44772C
|
44772C
90467-16014 Clip(For Vacuum Hose)[08.2009 -] ACV40,GSV40 |
90467-16014 |
US $4.12 |
||
|
44773
|
44773
44772-33160
Hose, Vacuum, No.2
[08.2009 -] ACV40 |
44772-33160 |
— | ||
|
44773A
|
44773A
90467-16014 Clip(For Vacuum Hose)[08.2009 -] ACV40 |
90467-16014 |
US $4.12 |
||
|
44777
|
44777
44770-33090
Connector, Vacuum Hose, No.1
[08.2009 -] ACV40 |
44770-33090 |
— | ||
|
44783
|
44783
44783-28010 Clamp, Vacuum Hose[08.2009 -] ACV40 |
44783-28010 |
US $5.10 |
||
|
44785
|
44785
44785-16020 Gasket, Brake Booster[08.2009 -] ACV40,GSV40 |
44785-16020 |
from US $3.50 |
||
|
47264D
|
47264D
47264-63020 Clevis, Master Cylinder Push Rod[08.2009 -] ACV40,GSV40 |
47264-63020 |
from US $3.49 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9017906083
|
9017906083
90179-06083 New Genuine Part |
90179-06083 |
US $4.37 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
