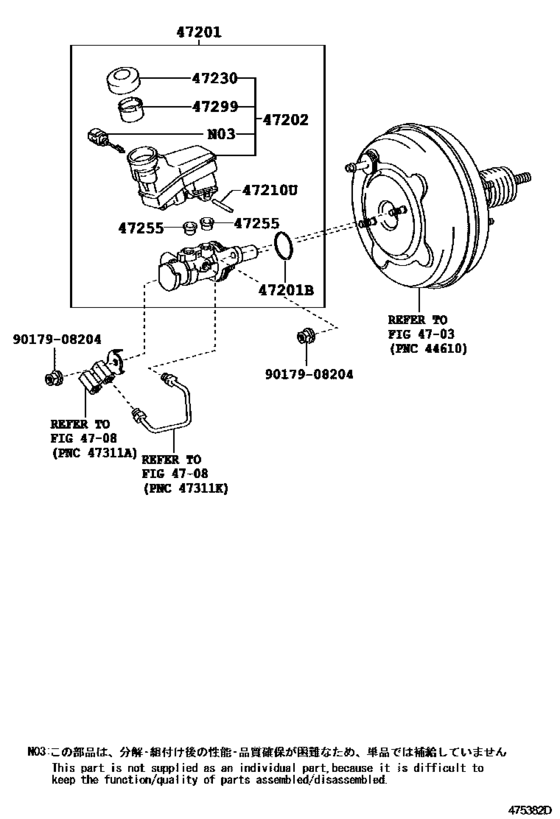

Brake Master Cylinder ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-33481 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [08.2009 -] ACV40,GSV40 |
47201-33481 |
US $314.45 |
||
|
47201B
|
47201B
90015-AH001 Ring, O(For Brake Master Cylinder)[08.2009 -] ACV40,GSV40 |
90015-AH001 |
from US $1.16 |
||
|
47202
|
47202
47220-33071
Reservoir Sub-Assy, Brake Master Cylinder
[08.2009 -] ACV40,GSV40 |
47220-33071 |
— | ||
|
47210U
|
47210U
90015-AE401 Ring Pin, Brake Master Cylinder[08.2009 -] ACV40,GSV40 |
90015-AE401 |
US $3.20 |
||
|
47230
|
47230
47230-33071 Cap Assy, Brake Master Cylinder Reservoir FillerBRAKE MASTER CYLINDER RESERVOIR FILLER [08.2009 -] ACV40,GSV40 |
47230-33071 |
US $12.67 |
||
| replacement | |||||
|
47230
|
47230
47230-33072 Cap Assy, Brake Master Cylinder Reservoir Filler[08.2009 -] ACV40,GSV40 |
47230-33072 |
from US $9.03 |
||
|
47255
|
47255
90015-AT001 Grommet, Master Cylinder Reservoir[08.2009 -] ACV40,GSV40 |
90015-AT001 |
US $9.32 |
||
|
47299
|
47299
47299-52110 Strainer, Brake Master Cylinder Reservoir[08.2009 -] ACV40,GSV40 |
47299-52110 |
US $6.99 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
