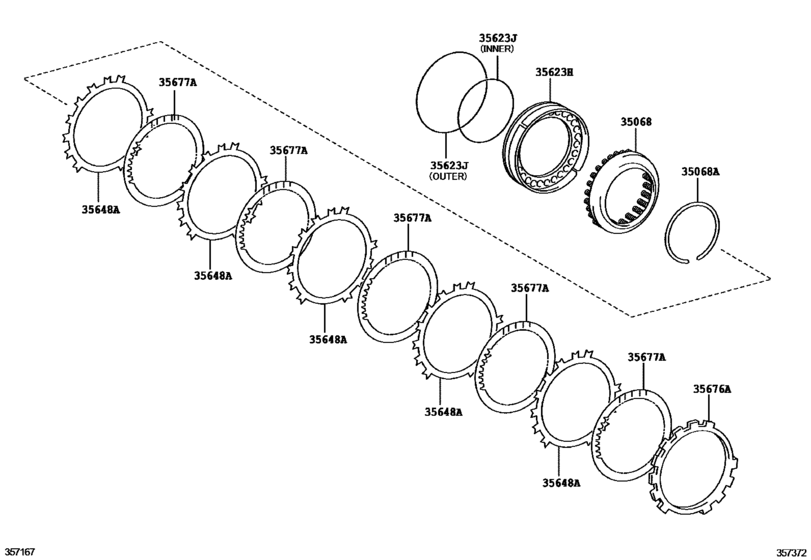

Brake No.3, 1St & Reverse Brake (Atm) ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-21011 Spring Sub-Assy, 1St & Reverse Brake Return[08.2009 -] ACV40 |
35068-21011 |
US $25.19 |
||
|
35068A
|
35068A
90520-99035 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[08.2009 -] ACV40 |
90520-99035 |
US $2.48 |
||
|
35623H
|
35623H
35623-33070
Piston, 1St & Reverse Brake
[08.2009 -] ACV40 |
35623-33070 |
— | ||
|
35623J
|
35623J
90301-99096 Ring, O (For Forward Clutch Piston)[08.2009 -] ACV40 INNER |
90301-99096 |
from US $2.80 |
||
|
35623J
|
35623J
90301-99098 Ring, O (For 1St & Reverse Brake)[08.2009 -] ACV40 OUTER |
90301-99098 |
US $2.91 |
||
| replacement | |||||
|
35623J
|
35623J
90301-99134 Ring, O (For 1St & Reverse Brake)[08.2009 -] ACV40 OUTER |
90301-99134 |
US $2.80 |
||
|
35648A
|
35648A
35692-21011 Plate, Clutch (For 1St & Reverse Brake)[08.2009 -] ACV40 |
35692-21011 |
US $12.39 |
||
|
35676A
|
35676A
35678-21010 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=1.8,MARK 1 |
35678-21010 |
US $39.82 |
||
|
35676A
|
35676A
35678-21020 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=1.9,MARK 2 |
35678-21020 |
US $25.33 |
||
|
35676A
|
35676A
35678-21030 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.0,MARK 3 |
35678-21030 |
from US $26.21 |
||
|
35676A
|
35676A
35678-21040 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.1,MARK 4 |
35678-21040 |
from US $26.21 |
||
|
35676A
|
35676A
35678-21050 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.2,MARK 5 |
35678-21050 |
US $27.08 |
||
|
35676A
|
35676A
35678-21060 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.3,MARK 6 |
35678-21060 |
from US $27.08 |
||
|
35676A
|
35676A
35678-21070 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.4,MARK 7 |
35678-21070 |
US $27.81 |
||
|
35676A
|
35676A
35678-21080 Flange, Brake (For 1St & Reverse Brake)[08.2009 -] ACV40 T=2.5,MARK 8 |
35678-21080 |
US $28.68 |
||
|
35677A
|
35677A
35682-28010 Disc, Clutch (For 1St & Reverse Brake)[08.2009 -] ACV40 |
35682-28010 |
from US $11.38 |
||
