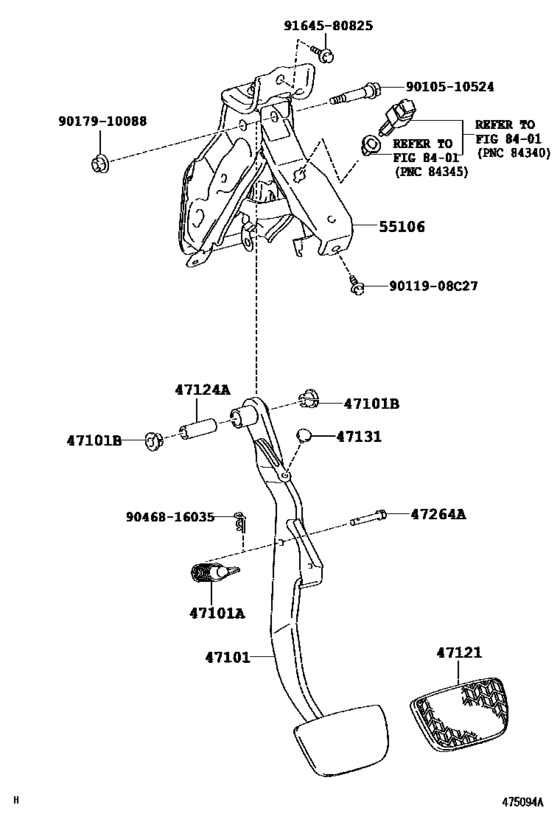

Brake Pedal & Bracket ([08.2009 - ] (0605-0908)GCC ; (0908- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-33100
Pedal Sub-Assy, Brake
[08.2009 -] ACV40,GSV40 |
47101-33100 |
— | ||
|
47101A
|
47101A
90507-14036 Spring(For Clutch Pedal)[08.2009 -] ACV40,GSV40 |
90507-14036 |
US $2.33 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[08.2009 -] ACV40,GSV40 |
90386-13015 |
from US $1.29 |
||
|
47121
|
47121
47121-50020 Pad, Brake Pedal[08.2009 -] ACV40,GSV40 |
47121-50020 |
from US $7.26 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[08.2009 -] ACV40,GSV40 |
90387-10003 |
from US $3.84 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[08.2009 -] ACV40,GSV40 |
90541-06036 |
from US $0.87 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[08.2009 -] ACV40,GSV40 |
90541060361 |
— | ||
|
47264A
|
47264A
47148-33011 Pin(For Push Rod)[08.2009 -] ACV40,GSV40 |
47148-33011 |
US $2.91 |
||
|
55106
|
55106
55106-33150
Support Sub-Assy, Brake Pedal
[08.2009 -] ACV40,GSV40 |
55106-33150 |
— | ||
|
9011908C27
|
9011908C27
90119-08C27 BOLT WWASHER |
90119-08C27 |
US $1.61 |
||
|
9010510524
|
9010510524
90105-10524 Shaft, Clutch Pedal |
90105-10524 |
US $2.04 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.97 |
||
|
9046816035
|
9046816035
90468-16035 CLIP |
90468-16035 |
from US $0.99 |
||
|
9164580825
|
9164580825
91645-80825 BOLT WWASHER |
91645-80825 |
US $1.79 |
||
