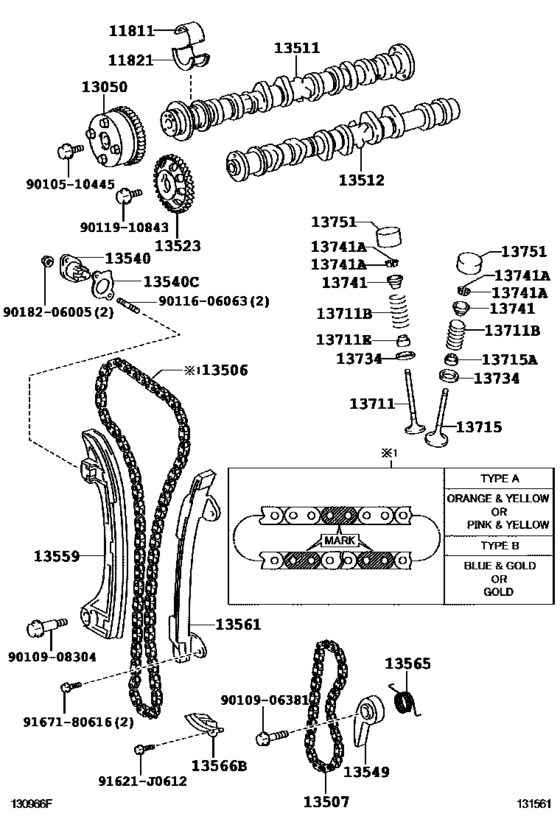

Camshaft & Valve ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11811
|
11811
11811-28010-01 Bearing, Camshaft, No.1[08.2009 -] 2AZFE..ACV40 MARK 1 |
11811-28010-01 |
from US $4.79 |
||
|
11811
|
11811
11811-28010-02 Bearing, Camshaft, No.1[08.2009 -] 2AZFE..ACV40 MARK 2 |
11811-28010-02 |
from US $4.83 |
||
|
11811
|
11811
11811-28010-03 Bearing, Camshaft, No.1[08.2009 -] 2AZFE..ACV40 MARK 3 |
11811-28010-03 |
from US $4.98 |
||
|
11821
|
11821
11821-28010-01 Bearing, Camshaft, No.2[08.2009 -] 2AZFE..ACV40 MARK 1 |
11821-28010-01 |
from US $4.75 |
||
| replacement | |||||
|
11821
|
11821
13281-28011-01 Bearing, Connecting RodCONNECTING ROD [08.2009 -] 2AZFE..ACV40 MARK 1 |
13281-28011-01 |
from US $5.30 |
||
|
11821
|
11821
11821-28010-02 Bearing, Camshaft, No.2[08.2009 -] 2AZFE..ACV40 MARK 2 |
11821-28010-02 |
from US $4.79 |
||
|
11821
|
11821
11821-28010-03 Bearing, Camshaft, No.2[08.2009 -] 2AZFE..ACV40 MARK 3 |
11821-28010-03 |
from US $4.81 |
||
|
13050
|
13050
13050-28021 Gear Assy, Camshaft Timing[08.2009 -] 2AZFE..ACV40 |
13050-28021 |
from US $153.58 |
||
|
13506
|
13506
13506-28011 Chain Sub-Assy[08.2009 -] 2AZFE..ACV40 TYPE A:REFER ILLUST. |
13506-28011 |
from US $95.06 |
||
|
13506
|
13506
13506-28020
Chain Sub-Assy
[08.2009 - 12.2011] 2AZFE..ACV40 TYPE B:REFER ILLUST. |
13506-28020 |
— | ||
| replacement | |||||
|
13506
|
13506
13506-28011 Chain Sub-Assy[08.2009 - 12.2011] 2AZFE..ACV40 TYPE B:REFER ILLUST. |
13506-28011 |
from US $95.06 |
||
|
13507
|
13507
13507-28010 Chain Sub-Assy, No.2[08.2009 -] 2AZFE..ACV40 |
13507-28010 |
from US $29.58 |
||
|
13511
|
13511
13501-0H040 Camshaft[08.2009 -] 2AZFE..ACV40 (L) |
13501-0H040 |
US $377.10 |
||
|
13511
|
13511
13501-28060 Camshaft[08.2009 -] 2AZFE..ACV40 (J) |
13501-28060 |
from US $340.70 |
||
|
13512
|
13512
13502-0H030 Camshaft, No.2[08.2009 -] 2AZFE..ACV40 (L) |
13502-0H030 |
US $374.19 |
||
|
13512
|
13512
13502-28030 Camshaft, No.2[08.2009 -] 2AZFE..ACV40 (J) |
13502-28030 |
US $340.70 |
||
|
13523
|
13523
13523-22020 Gear Or Sprocket, Camshaft Timing[08.2009 -] 2AZFE..ACV40 |
13523-22020 |
from US $24.93 |
||
|
13540
|
13540
13540-28010 Tensioner Assy, Chain, No.1[08.2009 -] 2AZFE..ACV40 |
13540-28010 |
from US $21.34 |
||
|
13540C
|
13540C
13552-28010 Gasket(For Chain Tensioner)[08.2009 -] 2AZFE..ACV40 |
13552-28010 |
from US $2.53 |
||
|
13549
|
13549
13549-28012 Plate, Chain Tensioner[08.2009 -] 2AZFE..ACV40 |
13549-28012 |
from US $7.01 |
||
|
13559
|
13559
13559-28010 Slipper, Chain Tensioner[08.2009 -] 2AZFE..ACV40 |
13559-28010 |
from US $22.61 |
||
|
13561
|
13561
13561-28010 Damper, Chain Vibration, No.1[08.2009 -] 2AZFE..ACV40 |
13561-28010 |
from US $40.53 |
||
|
13565
|
13565
13565-28012 Spring, Chain Damper[08.2009 -] 2AZFE..ACV40 |
13565-28012 |
from US $2.39 |
||
|
13566B
|
13566B
13566-28010 Guide, Timing Chain[08.2009 -] 2AZFE..ACV40 |
13566-28010 |
from US $1.29 |
||
|
13711
|
13711
13711-28010 Valve, Intake[08.2009 -] 2AZFE..ACV40 |
13711-28010 |
from US $13.66 |
||
|
13711B
|
13711B
90501-28038 Spring, Compression(For Inner)[08.2009 -] 2AZFE..ACV40 |
90501-28038 |
US $4.30 |
||
|
13711E
|
13711E
90913-02101 Seal Or Ring, O(For Valve Stem Oil)Intake side [08.2009 -] 2AZFE..ACV40 |
90913-02101 |
from US $4.84 |
||
|
13715
|
13715
13715-28040 Valve, Exhaust[08.2009 -] 2AZFE..ACV40 |
13715-28040 |
from US $20.24 |
||
|
13715A
|
13715A
90913-02112 Seal Or Ring, O(For Valve Stem Oil)[08.2009 -] 2AZFE..ACV40 |
90913-02112 |
from US $4.84 |
||
|
13734
|
13734
13734-74010 Seat, Valve Spring[08.2009 -] 2AZFE..ACV40 |
13734-74010 |
from US $0.57 |
||
|
13741
|
13741
13741-22021 Retainer, Valve Spring[08.2009 -] 2AZFE..ACV40 |
13741-22021 |
US $3.94 |
||
|
13741A
|
13741A
90913-03028 Lock, Valve Spring Retainer[08.2009 -] 2AZFE..ACV40 |
90913-03028 |
from US $0.95 |
||
|
13751
|
13751
13751-46030 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.06 |
13751-46030 |
from US $11 |
||
|
13751
|
13751
13751-46040 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.08 |
13751-46040 |
from US $11.72 |
||
|
13751
|
13751
13751-46050 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.10 |
13751-46050 |
from US $10.93 |
||
|
13751
|
13751
13751-46060 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.12 |
13751-46060 |
from US $10.74 |
||
|
13751
|
13751
13751-46070 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.14 |
13751-46070 |
from US $10.72 |
||
|
13751
|
13751
13751-46080 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.16 |
13751-46080 |
from US $11.04 |
||
|
13751
|
13751
13751-46090 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.18 |
13751-46090 |
from US $11.19 |
||
|
13751
|
13751
13751-46100 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.20 |
13751-46100 |
from US $11.08 |
||
|
13751
|
13751
13751-46110 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.22 |
13751-46110 |
from US $11.06 |
||
|
13751
|
13751
13751-46120 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.24 |
13751-46120 |
from US $11.70 |
||
|
13751
|
13751
13751-46130 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.26 |
13751-46130 |
from US $11.02 |
||
|
13751
|
13751
13751-46140 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.28 |
13751-46140 |
from US $10.91 |
||
|
13751
|
13751
13751-46150 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.30 |
13751-46150 |
from US $11.17 |
||
|
13751
|
13751
13751-46160 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.32 |
13751-46160 |
from US $11.04 |
||
|
13751
|
13751
13751-46170 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.34 |
13751-46170 |
from US $10.91 |
||
|
13751
|
13751
13751-46180 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.36 |
13751-46180 |
from US $11.08 |
||
|
13751
|
13751
13751-46190 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.38 |
13751-46190 |
from US $11.65 |
||
|
13751
|
13751
13751-46200 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.40 |
13751-46200 |
from US $11.02 |
||
|
13751
|
13751
13751-46210 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.42 |
13751-46210 |
from US $10.85 |
||
|
13751
|
13751
13751-46220 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.44 |
13751-46220 |
from US $10.98 |
||
|
13751
|
13751
13751-46230 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.46 |
13751-46230 |
from US $11 |
||
|
13751
|
13751
13751-46240 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.48 |
13751-46240 |
from US $10.87 |
||
|
13751
|
13751
13751-46250 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.50 |
13751-46250 |
from US $10.98 |
||
|
13751
|
13751
13751-46260 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.52 |
13751-46260 |
from US $10.93 |
||
|
13751
|
13751
13751-46270 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.54 |
13751-46270 |
from US $11.04 |
||
|
13751
|
13751
13751-46280 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.56 |
13751-46280 |
from US $10.93 |
||
|
13751
|
13751
13751-46290 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.58 |
13751-46290 |
from US $10.91 |
||
|
13751
|
13751
13751-46300 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.60 |
13751-46300 |
from US $10.98 |
||
|
13751
|
13751
13751-46310 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.62 |
13751-46310 |
from US $11.36 |
||
|
13751
|
13751
13751-46320 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.64 |
13751-46320 |
from US $11.12 |
||
|
13751
|
13751
13751-46330 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.66 |
13751-46330 |
from US $12.69 |
||
|
13751
|
13751
13751-46340 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.68 |
13751-46340 |
US $11.18 |
||
|
13751
|
13751
13751-46350 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.70 |
13751-46350 |
US $15.41 |
||
|
13751
|
13751
13751-46360 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.72 |
13751-46360 |
from US $12.69 |
||
|
13751
|
13751
13751-46370 Lifter, Valve[08.2009 -] 2AZFE..ACV40 T=5.74 |
13751-46370 |
from US $11.19 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9010510445
|
9010510445
90105-10445 BOLT WASHER BASED |
90105-10445 |
from US $1.10 |
||
|
9010906381
|
9010906381
90109-06381 BOLT |
90109-06381 |
from US $0.80 |
||
|
9010908304
|
9010908304
90109-08304 BOLT |
90109-08304 |
from US $1.25 |
||
|
9011606063
|
9011606063
90116-06063 Bolt, Stud(For Fuel Pipe) |
90116-06063 |
US $2.15 |
||
|
9011910843
|
9011910843
90119-10843 BOLT WWASHER |
90119-10843 |
from US $1.25 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
