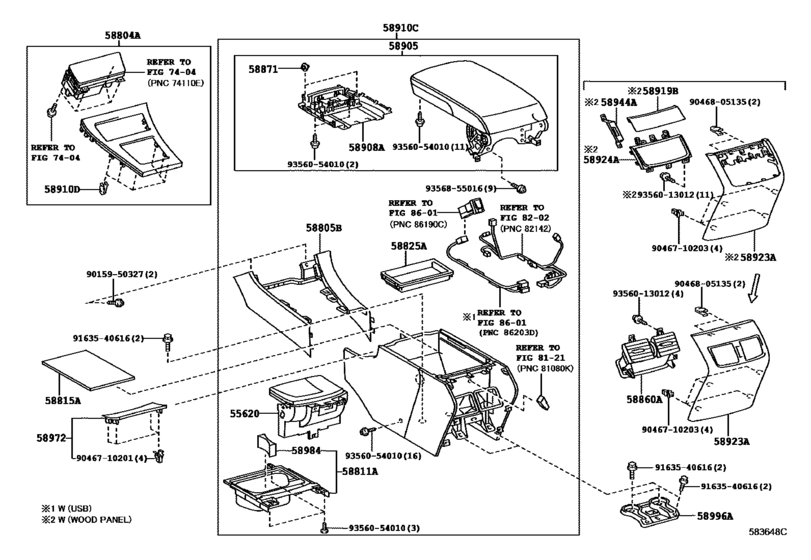

Console Box & Bracket ([08.2009 - ] (0908- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-33220-C1
Holder Assy, Instrument Panel Cup
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM10,20 |
55620-33220-C1 |
— | ||
|
55620
|
55620
55620-33220-C2
Holder Assy, Instrument Panel Cup
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM11,21 |
55620-33220-C2 |
— | ||
|
55620
|
55620
55620-33220-E6
Holder Assy, Instrument Panel Cup
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM00 |
55620-33220-E6 |
— | ||
|
55620
|
55620
55620-33220-E7
Holder Assy, Instrument Panel Cup
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM01 |
55620-33220-E7 |
— | ||
|
58804A
|
58804A
58804-33680-E0
Panel Sub-Assy, Console, Upper
[08.2009 - 06.2012] ACV40,GSV40 MD.BROWN,TRIM00,10,20 |
58804-33680-E0 |
— | ||
|
58804A
|
58804A
58804-33680-E2
Panel Sub-Assy, Console, Upper
[08.2009 - 06.2012] ACV40,GSV40 DK.BROWN,TRIM01,11,21 |
58804-33680-E2 |
— | ||
|
58805B
|
58805B
58805-33190-C0
Panel Sub-Assy, Console, Lower
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
58805-33190-C0 |
— | ||
|
58805B
|
58805B
58805-33190-E0
Panel Sub-Assy, Console, Lower
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
58805-33190-E0 |
— | ||
|
58811A
|
58811A
58802-33080
Box, Console, Front
[08.2009 -] ACV40,GSV40 |
58802-33080 |
— | ||
|
58815A
|
58815A
58815-33130
Carpet, Console Box
[08.2009 -] ACV40,GSV40 |
58815-33130 |
— | ||
|
58825A
|
58825A
58825-33030
Pocket, Console Box
[08.2009 -] ACV40,GSV40 |
58825-33030 |
— | ||
|
58860A
|
58860A
58860-33040-A0
Register Assy, Console Box
[08.2009 - 06.2012] ACV40;GSV40..GCC IVORY,TRIM0#; GSV40..CHI PREMIUM PLUS PACKAGE,IVORY,TRIM0# |
58860-33040-A0 |
— | ||
|
58860A
|
58860A
58860-33040-B0
Register Assy, Console Box
[08.2009 - 06.2012] ACV40;GSV40..GCC LT.GRAY,TRIM1#; GSV40..CHI PREMIUM PLUS PACKAGE,LT.GRAY,TRIM1# |
58860-33040-B0 |
— | ||
|
58860A
|
58860A
58860-33040-C0
Register Assy, Console Box
[08.2009 -] GSV40..GCC BLACK,TRIM2#; ACV40 BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE,BLACK,TRIM0#,1#,2# |
58860-33040-C0 |
— | ||
|
58871
|
58871
58871-48010 Cushion, Console BoxCONSOLE BOX [08.2009 -] ACV40,GSV40 |
58871-48010 |
US $1.60 |
||
|
58905
|
58905
58905-33421-C2
Door Sub-Assy, Console Compartment
[08.2009 - 06.2012] ACV40;GSV40..GCC BLACK/BLACK,TRIM2#; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/BLACK,TRIM2# |
58905-33421-C2 |
— | ||
|
58905
|
58905
58905-33421-C3
Door Sub-Assy, Console Compartment
[08.2009 - 06.2012] ACV40;GSV40..GCC BLACK/LIGHT GRAY,TRIM1#; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY,TRIM1# |
58905-33421-C3 |
— | ||
|
58905
|
58905
58905-33421-C4
Door Sub-Assy, Console Compartment
[10.2011 - 01.2012] ACV40,GSV40..CHI SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
58905-33421-C4 |
— | ||
|
58905
|
58905
58905-33421-E1
Door Sub-Assy, Console Compartment
[08.2009 - 06.2012] ACV40;GSV40..GCC ORCHID BROWN/IVORY,TRIM0#; GSV40..CHI PREMIUM PLUS PACKAGE,ORCHID BROWN/IVORY,TRIM0# |
58905-33421-E1 |
— | ||
|
58908A
|
58908A
58908-33080-C0
Lock Sub-Assy, Console Compartment Door
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
58908-33080-C0 |
— | ||
|
58908A
|
58908A
58908-33080-E0
Lock Sub-Assy, Console Compartment Door
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
58908-33080-E0 |
— | ||
|
58910C
|
58910C
58910-33391-C4
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 BLACK/BLACK/MD.BROWN,TRIM20; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/BLACK/MD.BROWN,TRIM20; GSV40..GCC AUDIO JACK-MINI JACK & USB,BLACK/BLACK/MD.BROWN,TRIM20 |
58910-33391-C4 |
— | ||
|
58910C
|
58910C
58910-33391-C5
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 BLACK/BLACK/DK.BROWN,TRIM21; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/BLACK/DK.BROWN,TRIM21; GSV40..GCC AUDIO JACK-MINI JACK & USB,BLACK/BLACK/DK.BROWN,TRIM21 |
58910-33391-C5 |
— | ||
|
58910C
|
58910C
58910-33391-C6
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 BLACK/LIGHT GRAY/MD.BROWN,TRIM10; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY/MD.BROWN,TRIM10; GSV40..GCC AUDIO JACK-MINI JACK & USB,BLACK/LIGHT GRAY/MD.BROWN,TRIM10 |
58910-33391-C6 |
— | ||
|
58910C
|
58910C
58910-33391-C7
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 BLACK/LIGHT GRAY/DK.BROWN,TRIM11; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK/LIGHT GRAY/DK.BROWN,TRIM11; GSV40..GCC AUDIO JACK-MINI JACK & USB,BLACK/LIGHT GRAY/DK.BROWN,TRIM11 |
58910-33391-C7 |
— | ||
|
58910C
|
58910C
58910-33391-E2
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 ORCHID BROWN/MD.BROWN,TRIM00; GSV40..CHI PREMIUM PLUS PACKAGE,ORCHID BROWN/MD.BROWN,TRIM00; GSV40..GCC AUDIO JACK-MINI JACK & USB,ORCHID BROWN/MD.BROWN,TRIM00 |
58910-33391-E2 |
— | ||
|
58910C
|
58910C
58910-33391-E3
Box Assy, Console, Rear
[08.2009 - 06.2012] ACV40 ORCHID BROWN/DK.BROWN,TRIM01; GSV40..CHI PREMIUM PLUS PACKAGE,ORCHID BROWN/DK.BROWN,TRIM01; GSV40..GCC AUDIO JACK-MINI JACK & USB,ORCHID BROWN/DK.BROWN,TRIM01 |
58910-33391-E3 |
— | ||
|
58910C
|
58910C
58910-33480-C2
Box Assy, Console, Rear
[10.2011 - 01.2012] ACV40,GSV40..CHI SPECIAL EDITION,MD.BROWN,TRIM20 |
58910-33480-C2 |
— | ||
|
58910C
|
58910C
58910-33480-C3
Box Assy, Console, Rear
[10.2011 - 01.2012] ACV40,GSV40..CHI SPECIAL EDITION,DK.BROWN,TRIM21 |
58910-33480-C3 |
— | ||
|
58910D
|
58910D
90468-05135 Clip, Instrument Panel[08.2009 -] ACV40,GSV40 |
90468-05135 |
from US $0.91 |
||
|
58919B
|
58919B
58919-33040-E0
Plate, Console Box
[08.2009 - 06.2012] GSV40..CHI MD.BROWN,TRIM00,10,20; ACV40 ULTRA LUXURY PACKAGE,MD.BROWN,TRIM00,10,20; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),MD.BROWN,TRIM00,10,20 |
58919-33040-E0 |
— | ||
|
58919B
|
58919B
58919-33040-E1
Plate, Console Box
[08.2009 - 06.2012] GSV40..CHI DK.BROWN,TRIM01,11,21; ACV40 ULTRA LUXURY PACKAGE,DK.BROWN,TRIM01,11,21; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),DK.BROWN,TRIM01,11,21 |
58919-33040-E1 |
— | ||
|
58923A
|
58923A
58923-33050-A0
Panel, Console Rear End
[08.2009 - 06.2012] ACV40;GSV40..GCC IVORY,TRIM0#; GSV40..CHI PREMIUM PLUS PACKAGE,IVORY,TRIM0# |
58923-33050-A0 |
— | ||
|
58923A
|
58923A
58923-33050-B0
Panel, Console Rear End
[08.2009 - 06.2012] ACV40;GSV40..GCC LT.GRAY,TRIM1#; GSV40..CHI PREMIUM PLUS PACKAGE,LT.GRAY,TRIM1# |
58923-33050-B0 |
— | ||
|
58923A
|
58923A
58923-33050-C0
Panel, Console Rear End
[08.2009 - 06.2012] ACV40;GSV40..GCC BLACK,TRIM2#; GSV40..CHI PREMIUM PLUS PACKAGE,BLACK,TRIM2# |
58923-33050-C0 |
— | ||
|
58923A
|
58923A
58923-33060-A0
Panel, Console Rear End
[08.2009 - 06.2012] GSV40..CHI IVORY,TRIM0#; ACV40 ULTRA LUXURY PACKAGE,IVORY,TRIM0#; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0# |
58923-33060-A0 |
— | ||
|
58923A
|
58923A
58923-33060-B0
Panel, Console Rear End
[08.2009 - 06.2012] GSV40..CHI LT.GRAY,TRIM1#; ACV40 ULTRA LUXURY PACKAGE,LT.GRAY,TRIM1#; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),LT.GRAY,TRIM1# |
58923-33060-B0 |
— | ||
|
58923A
|
58923A
58923-33060-C0
Panel, Console Rear End
[08.2009 - 06.2012] GSV40..CHI BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE,BLACK,TRIM2#; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2# |
58923-33060-C0 |
— | ||
|
58924A
|
58924A
58924-33010
Panel, Console Rear End, No.2
[08.2009 -] GSV40..CHI; ACV40 ULTRA LUXURY PACKAGE; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE) |
58924-33010 |
— | ||
|
58944A
|
58944A
58944-33040-C0 Cover, Console, RearCONSOLE, REAR [08.2009 - 06.2012] GSV40..CHI BLACK,TRIM0#,1#,2#; ACV40 ULTRA LUXURY PACKAGE,BLACK,TRIM0#,1#,2#; GSV40..GCC *DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM0#,1#,2# |
58944-33040-C0 |
US $6.26 |
||
|
58972
|
58972
58972-33090-C0
Base, Heater Seat Switch Console
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
58972-33090-C0 |
— | ||
|
58972
|
58972
58972-33090-E0
Base, Heater Seat Switch Console
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
58972-33090-E0 |
— | ||
|
58984
|
58984
58984-33020 Retainer, Upper Console[08.2009 - 06.2012] ACV40,GSV40 |
58984-33020 |
US $31.54 |
||
|
58996A
|
58996A
58996-33060
Bracket, Console Box Mounting, No.2
[08.2009 -] ACV40,GSV40 |
58996-33060 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9356013012
|
9356013012
93560-13012 New Genuine Part |
93560-13012 |
US $1.25 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
