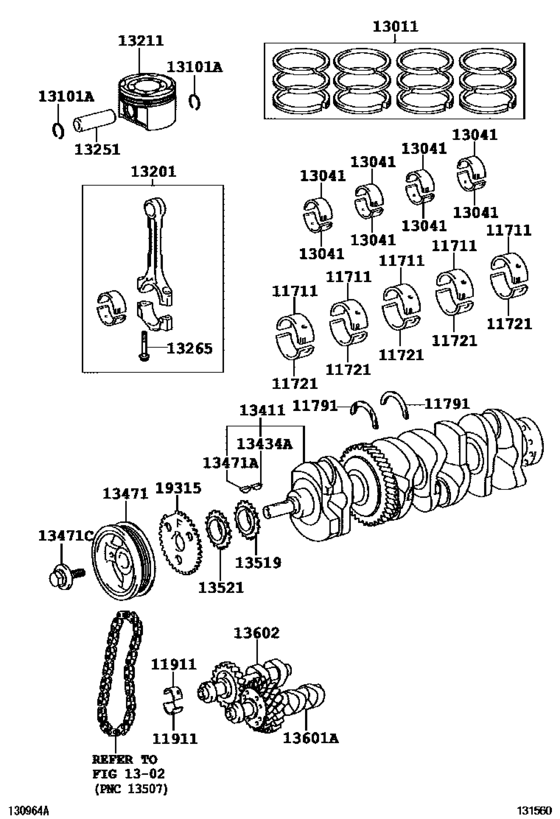

Crankshaft & Piston ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11711-28021-01 Bearing, CrankshaftCRANKSHAFT [08.2009 - 06.2012] 2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
11711-28021-01 |
from US $8.15 |
||
|
11711
|
11711
11711-28021-02 Bearing, CrankshaftCRANKSHAFT [08.2009 - 06.2012] 2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
11711-28021-02 |
from US $8.30 |
||
|
11711
|
11711
11711-28021-03 Bearing, CrankshaftCRANKSHAFT [08.2009 - 06.2012] 2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
11711-28021-03 |
from US $8.19 |
||
|
11711
|
11711
11711-28021-04 Bearing, CrankshaftCRANKSHAFT [08.2009 - 06.2012] 2AZFE..ACV40 MARK 4,REFER REPAIR MANUAL |
11711-28021-04 |
from US $8.27 |
||
|
11721
|
11721
11721-28021-01 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2009 - 06.2012] 2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
11721-28021-01 |
from US $8.36 |
||
|
11721
|
11721
11721-28021-02 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2009 - 06.2012] 2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
11721-28021-02 |
from US $8.27 |
||
|
11721
|
11721
11721-28021-03 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2009 - 06.2012] 2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
11721-28021-03 |
from US $8.27 |
||
|
11721
|
11721
11721-28021-04 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [08.2009 - 06.2012] 2AZFE..ACV40 MARK 4,REFER REPAIR MANUAL |
11721-28021-04 |
US $28.39 |
||
|
11791
|
11791
11791-28020 Washer, Crankshaft Thrust, Upper[08.2009 -] 2AZFE..ACV40 STD |
11791-28020 |
from US $15.64 |
||
|
11911
|
11911
11911-28011-01 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [08.2009 -] 2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
11911-28011-01 |
from US $6.33 |
||
|
11911
|
11911
11911-28011-02 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [08.2009 -] 2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
11911-28011-02 |
from US $6.37 |
||
|
11911
|
11911
11911-28011-03 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [08.2009 -] 2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
11911-28011-03 |
from US $6.27 |
||
|
13011
|
13011
13011-28160
Ring Set, Piston
[08.2009 - 12.2009] 2AZFE..ACV40 STD |
13011-28160 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-28161 Ring Set, PistonPISTON [08.2009 - 12.2009] 2AZFE..ACV40 STD |
13011-28161 |
from US $115.46 |
||
|
13011
|
13011
13011-28161 Ring Set, PistonPISTON [12.2009 -] 2AZFE..ACV40 STD |
13011-28161 |
from US $115.46 |
||
|
13041
|
13041
13281-28011-01 Bearing, Connecting RodCONNECTING ROD [08.2009 -] 2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
13281-28011-01 |
from US $5.30 |
||
|
13041
|
13041
13281-28011-02 Bearing, Connecting RodCONNECTING ROD [08.2009 -] 2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
13281-28011-02 |
from US $5.26 |
||
|
13041
|
13041
13281-28011-03 Bearing, Connecting RodCONNECTING ROD [08.2009 -] 2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
13281-28011-03 |
from US $5.34 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[08.2009 -] 2AZFE..ACV40 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-09791-A0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFE..ACV40 MARK A,(L):REFER R/M |
13201-09791-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK A,(L):REFER R/M |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-09791-B0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFE..ACV40 MARK B,(L):REFER R/M |
13201-09791-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK B,(L):REFER R/M |
13201-29686-B0 |
from US $172.77 |
||
|
13201
|
13201
13201-09791-C0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFE..ACV40 MARK C,(L):REFER R/M |
13201-09791-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK C,(L):REFER R/M |
13201-29686-C0 |
from US $168.90 |
||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK A,(J):REFER R/M |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK B,(J):REFER R/M |
13201-29686-B0 |
from US $172.77 |
||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFE..ACV40 MARK C,(J):REFER R/M |
13201-29686-C0 |
from US $168.90 |
||
|
13211
|
13211
13211-28111-A0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK A,REFER REPAIR MANUAL |
13211-28111-A0 |
US $78.62 |
||
| replacement | |||||
|
13211
|
13211
13211-28112-A0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK A,REFER REPAIR MANUAL |
13211-28112-A0 |
from US $48.37 |
||
|
13211
|
13211
13211-28111-B0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK B,REFER REPAIR MANUAL |
13211-28111-B0 |
US $78.62 |
||
| replacement | |||||
|
13211
|
13211
13211-28112-B0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK B,REFER REPAIR MANUAL |
13211-28112-B0 |
from US $47.25 |
||
|
13211
|
13211
13211-28111-C0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK C,REFER REPAIR MANUAL |
13211-28111-C0 |
US $78.62 |
||
| replacement | |||||
|
13211
|
13211
13211-28112-C0 Piston[08.2009 - 11.2009] 2AZFE..ACV40 MARK C,REFER REPAIR MANUAL |
13211-28112-C0 |
from US $50.69 |
||
|
13211
|
13211
13211-28112-A0 Piston[11.2009 -] 2AZFE..ACV40 MARK A,REFER REPAIR MANUAL |
13211-28112-A0 |
from US $48.37 |
||
|
13211
|
13211
13211-28112-B0 Piston[11.2009 -] 2AZFE..ACV40 MARK B,REFER REPAIR MANUAL |
13211-28112-B0 |
from US $47.25 |
||
|
13211
|
13211
13211-28112-C0 Piston[11.2009 -] 2AZFE..ACV40 MARK C,REFER REPAIR MANUAL |
13211-28112-C0 |
from US $50.69 |
||
|
13251
|
13251
13251-28020-A0 Pin, Piston[08.2009 -] 2AZFE..ACV40 MARK A,REFER REPAIR MANUAL |
13251-28020-A0 |
from US $9.82 |
||
|
13251
|
13251
13251-28020-B0 Pin, Piston[08.2009 -] 2AZFE..ACV40 MARK B,REFER REPAIR MANUAL |
13251-28020-B0 |
from US $9.94 |
||
|
13251
|
13251
13251-28020-C0 Pin, Piston[08.2009 -] 2AZFE..ACV40 MARK C,REFER REPAIR MANUAL |
13251-28020-C0 |
from US $7.54 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[08.2009 - 06.2012] 2AZFE..ACV40 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[08.2009 - 06.2012] 2AZFE..ACV40 |
13265-28020 |
from US $2.77 |
||
|
13411
|
13411
13401-0H010 Crankshaft[08.2009 - 04.2012] 2AZFE..ACV40 (L) |
13401-0H010 |
US $1,528.80 |
||
|
13411
|
13411
13401-28010 Crankshaft[08.2009 - 06.2012] 2AZFE..ACV40 (J) |
13401-28010 |
from US $748.51 |
||
|
13434A
|
13434A
95161-30416 Pin, Straight(For Crankshaft)[08.2009 - 06.2012] 2AZFE..ACV40 |
95161-30416 |
from US $1.39 |
||
|
13471
|
13471
13470-28020 Pulley, Crankshaft[08.2009 -] 2AZFE..ACV40 |
13470-28020 |
from US $161.92 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[08.2009 - 06.2012] 2AZFE..ACV40 |
95161-30416 |
from US $1.39 |
||
|
13471C
|
13471C
90119-14106 Bolt(For Crankshaft Pulley Set)[08.2009 -] 2AZFE..ACV40 |
90119-14106 |
US $6.45 |
||
|
13519
|
13519
13519-28010 Gear, Oil Pump Drive[08.2009 -] 2AZFE..ACV40 |
13519-28010 |
from US $5.21 |
||
|
13521
|
13521
13521-28030 Gear Or Sprocket, Crankshaft Timing[08.2009 -] 2AZFE..ACV40 |
13521-28030 |
from US $10.66 |
||
|
13601A
|
13601A
13601-28020
Balanceshaft Sub-Assy, No.1
[08.2009 -] 2AZFE..ACV40 |
13601-28020 |
— | ||
| replacement | |||||
|
13601A
|
13601A
13601-28021 Balanceshaft Sub-Assy, No.1[08.2009 -] 2AZFE..ACV40 |
13601-28021 |
from US $114.61 |
||
|
13602
|
13602
13602-28020 Balanceshaft Sub-Assy, No.2[08.2009 -] 2AZFE..ACV40 |
13602-28020 |
from US $69.14 |
||
|
19315
|
19315
19315-28010 Plate, Crank Angle Sensor, No.1[08.2009 -] 2AZFE..ACV40 |
19315-28010 |
from US $9.86 |
||
