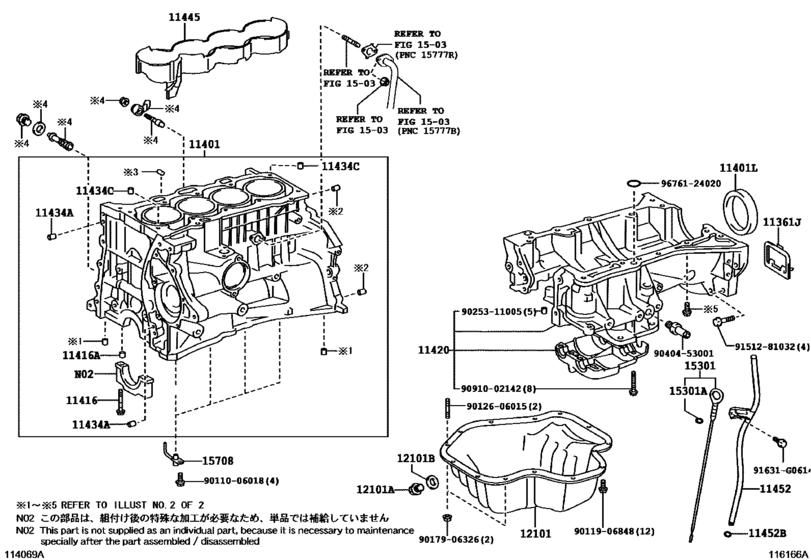

Cylinder Block ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[08.2009 -] 2AZFE..ACV40 |
11361-28010 |
from US $5.04 |
||
|
11401
|
11401
11410-29345
Block Sub-Assy, Cylinder
[08.2009 - 06.2012] 2AZFE..ACV40 |
11410-29345 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[08.2009 - 06.2012] 2AZFE..ACV40 |
11410-29346 |
US $2,761.20 |
||
|
11401L
|
11401L
90311-89003
Seal, Engine Rear Oil
[08.2009 - 04.2012] 2AZFE..ACV40 |
90311-89003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[08.2009 - 04.2012] 2AZFE..ACV40 |
90311-89010 |
from US $23.35 |
||
|
11401L
|
11401L
90311-89007
Seal, Engine Rear Oil
[04.2012 - 06.2012] 2AZFE..ACV40 |
90311-89007 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[04.2012 - 06.2012] 2AZFE..ACV40 |
90311-89010 |
from US $23.35 |
||
|
11416
|
11416
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
[08.2009 - 06.2012] 2AZFE..ACV40 |
90910-02124 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02206 BOLT[08.2009 - 06.2012] 2AZFE..ACV40 |
90910-02206 |
from US $2.66 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[08.2009 - 06.2012] 2AZFE..ACV40 |
90253-13017 |
from US $1.31 |
||
|
11420
|
11420
11420-0H050
Crankcase Assy, Stiffening
[08.2009 - 10.2010] 2AZFE..ACV40 (L) |
11420-0H050 |
— | ||
| replacement | |||||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[08.2009 - 10.2010] 2AZFE..ACV40 (L) |
11420-0H051 |
— | ||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[10.2010 -] 2AZFE..ACV40 (L) |
11420-0H051 |
— | ||
|
11420
|
11420
11420-28020 Crankcase Assy, Stiffening[08.2009 - 10.2010] 2AZFE..ACV40 (J) |
11420-28020 |
US $765.86 |
||
| replacement | |||||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[08.2009 - 10.2010] 2AZFE..ACV40 (J) |
11420-28021 |
from US $392.39 |
||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[10.2010 -] 2AZFE..ACV40 (J) |
11420-28021 |
from US $392.39 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[08.2009 -] 2AZFE..ACV40 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[08.2009 -] 2AZFE..ACV40 L=12,OD=14 |
90253-14003 |
from US $1.27 |
||
|
11445
|
11445
11445-28020 Spacer, Cylinder Block Water Jacket[08.2009 -] 2AZFE..ACV40 |
11445-28020 |
from US $15.37 |
||
|
11452
|
11452
11452-28040 Guide, Oil Level Gage[08.2009 -] 2AZFE..ACV40 |
11452-28040 |
US $18.93 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.2009 -] 2AZFE..ACV40 |
96721-19010 |
from US $1.56 |
||
|
12101
|
12101
12101-28060 Pan Sub-Assy, Oil[08.2009 -] 2AZFE..ACV40 |
12101-28060 |
from US $86.77 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
90341-T0004 |
US $3.50 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
90430-12031 |
from US $0.80 |
||
|
15301
|
15301
15301-28030 Gage Sub-Assy, Oil Level[08.2009 - 06.2012] 2AZFE..ACV40 |
15301-28030 |
US $13.40 |
||
| replacement | |||||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[08.2009 - 06.2012] 2AZFE..ACV40 |
15301-28031 |
from US $10.03 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[08.2009 - 06.2012] 2AZFE..ACV40 |
96741-19005 |
from US $2.36 |
||
|
15708
|
15708
15708-28011 Nozzle Sub-Assy, Oil, No.1[08.2009 -] 2AZFE..ACV40 |
15708-28011 |
from US $8.11 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.68 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
from US $0.70 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.20 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
US $1.08 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $1.08 |
||
|
9040453001
|
9040453001
90404-53001 Union(For Cylinder Block) |
90404-53001 |
US $6.45 |
||
|
9091002142
|
9091002142
90910-02142 New Genuine Part |
90910-02142 |
US $3.23 |
||
|
9151281032
|
9151281032
91512-81032 New Genuine Part |
91512-81032 |
US $1.97 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.17 |
||
