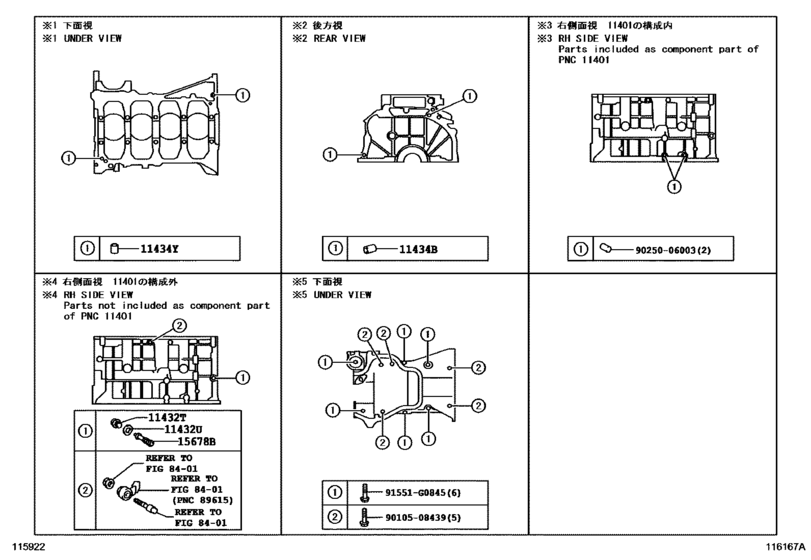

Cylinder Block ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11432T
|
11432T
90341-14013 Plug, W/head Taper Screw, No.1[08.2009 -] 2AZFE..ACV40 |
90341-14013 |
US $2.15 |
||
|
11432U
|
11432U
90430-14011 Gasket, Straight Screw Plug No.1(For Cylinder Block)[08.2009 -] 2AZFE..ACV40 |
90430-14011 |
US $0.90 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.2009 -] 2AZFE..ACV40 L=22,OD=10 |
90250-10113 |
from US $0.97 |
||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[08.2009 -] 2AZFE..ACV40 |
90250-08074 |
US $1.79 |
||
|
15678B
|
15678B
15678-28010 Filter, Oil Control Valve[08.2009 -] 2AZFE..ACV40 |
15678-28010 |
from US $4.98 |
||
|
91551G0845
|
91551G0845
91551-G0845 Bolt(For Camshaft Housing Set) |
91551-G0845 |
US $1.79 |
||
|
9010508439
|
9010508439
90105-08439 BOLT FLANGE |
90105-08439 |
US $2.48 |
||
|
9025006003
|
9025006003
90250-06003 Pin, Straight |
90250-06003 |
US $1.61 |
