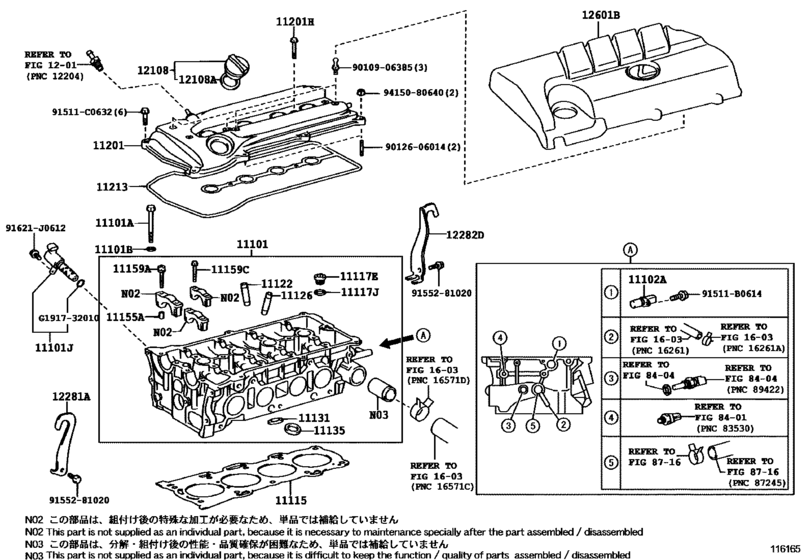

Cylinder Head ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-0H011
Head Sub-Assy, Cylinder
[08.2009 - 04.2012] 2AZFE..ACV40 (L) |
11101-0H011 |
— | ||
|
11101
|
11101
11101-28012 Head Sub-Assy, Cylinder[08.2009 - 04.2012] 2AZFE..ACV40 (J) |
11101-28012 |
from US $1,890.91 |
||
|
11101A
|
11101A
90910-02162 Bolt(For Cylinder Head Set)[08.2009 -] 2AZFE..ACV40 |
90910-02162 |
from US $5.56 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[08.2009 -] 2AZFE..ACV40 |
90201-11034 |
from US $0.87 |
||
|
11101J
|
11101J
15330-28020
Valve Assy, Camshaft Timing Oil Control
[08.2009 -] 2AZFE..ACV40 |
15330-28020 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-28010 VALVE ASSY CAM[08.2009 -] 2AZFE..ACV40 |
15330-28010 |
from US $57.46 |
||
|
11102A
|
11102A
90919-05026 Sensor, Position[08.2009 -] 2AZFE..ACV40 |
90919-05026 |
from US $73.83 |
||
|
11115
|
11115
11115-28040 Gasket, Cylinder Head[08.2009 -] 2AZFE..ACV40 |
11115-28040 |
from US $51.60 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[08.2009 - 06.2012] 2AZFE..ACV40 |
90341-27006 |
from US $5.73 |
||
|
11117J
|
11117J
90430-27005 Gasket(For Cylinder Head Screw Plug)[08.2009 - 06.2012] 2AZFE..ACV40 |
90430-27005 |
from US $1.25 |
||
|
11122
|
11122
11122-28010 Bush, Intake Valve Guide[08.2009 -] 2AZFE..ACV40 STD |
11122-28010 |
from US $8.25 |
||
|
11122
|
11122
11123-28010 Bush, Intake Valve Guide[08.2009 -] 2AZFE..ACV40 O/S 0.05 |
11123-28010 |
US $7.43 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[08.2009 -] 2AZFE..ACV40 STD |
11126-20020 |
from US $6.05 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[08.2009 -] 2AZFE..ACV40 O/S 0.05 |
11127-20020 |
US $8.60 |
||
|
11131
|
11131
11131-0H020
Seat, Intake Valve
[08.2009 - 04.2012] 2AZFE..ACV40 STD,(L) |
11131-0H020 |
— | ||
|
11131
|
11131
11131-28021 Seat, Intake Valve[08.2009 - 04.2012] 2AZFE..ACV40 STD,(J) |
11131-28021 |
US $17.47 |
||
|
11131
|
11131
11132-0H020
Seat, Intake Valve
[08.2009 - 04.2012] 2AZFE..ACV40 O/S 0.03,(L) |
11132-0H020 |
— | ||
|
11131
|
11131
11132-28021 Seat, Intake Valve[08.2009 - 04.2012] 2AZFE..ACV40 O/S 0.03,(J) |
11132-28021 |
US $11.50 |
||
|
11135
|
11135
11135-0H020
Seat, Exhaust Valve
[08.2009 - 04.2012] 2AZFE..ACV40 STD,(L) |
11135-0H020 |
— | ||
|
11135
|
11135
11135-28040 Seat, Exhaust Valve[08.2009 - 04.2012] 2AZFE..ACV40 STD,(J) |
11135-28040 |
US $10.34 |
||
|
11135
|
11135
11136-0H020
Seat, Exhaust Valve
[08.2009 - 04.2012] 2AZFE..ACV40 O/S 0.03,(L) |
11136-0H020 |
— | ||
|
11135
|
11135
11136-28040
Seat, Exhaust Valve
[08.2009 - 04.2012] 2AZFE..ACV40 O/S 0.03,(J) |
11136-28040 |
— | ||
|
11155A
|
11155A
90253-11021 Pin, Ring[08.2009 - 06.2012] 2AZFE..ACV40 |
90253-11021 |
from US $1.41 |
||
|
11159A
|
11159A
90080-10210 Bolt(For Head To Camshaft Bearing Cap)[08.2009 - 04.2012] 2AZFE..ACV40 (L) |
90080-10210 |
US $1.75 |
||
|
11159A
|
11159A
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[08.2009 - 06.2012] 2AZFE..ACV40 (J) |
90105-08353 |
from US $0.89 |
||
|
11159C
|
11159C
90080-11292
Bolt(For Head To Camshaft Bearing Cap)
[08.2009 - 04.2012] 2AZFE..ACV40 (L) |
90080-11292 |
— | ||
|
11159C
|
11159C
90119-06902 Bolt(For Head To Camshaft Bearing Cap)[08.2009 - 06.2012] 2AZFE..ACV40 (J) |
90119-06902 |
US $1.61 |
||
|
11201
|
11201
11201-28031
Cover Sub-Assy, Cylinder Head
[08.2009 - 03.2011] 2AZFE..ACV40 |
11201-28031 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[08.2009 - 03.2011] 2AZFE..ACV40 |
11201-28033 |
from US $285.17 |
||
|
11201
|
11201
11201-28032 Cover Sub-Assy, Cylinder Head[03.2011 - 06.2012] 2AZFE..ACV40 |
11201-28032 |
US $253.34 |
||
| replacement | |||||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[03.2011 - 06.2012] 2AZFE..ACV40 |
11201-28033 |
from US $285.17 |
||
|
11201H
|
11201H
90119-06903 Bolt(For Cylinder Head Cover)[08.2009 -] 2AZFE..ACV40 |
90119-06903 |
US $1.43 |
||
|
11213
|
11213
11213-28021 Gasket, Cylinder Head Cover[08.2009 -] 2AZFE..ACV40 |
11213-28021 |
from US $15.11 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[08.2009 -] 2AZFE..ACV40 |
12180-38010 |
from US $11.13 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[08.2009 -] 2AZFE..ACV40 |
90430-35001 |
from US $1.14 |
||
|
12281A
|
12281A
12281-0H010
Hanger, Engine, No.1
[08.2009 -] 2AZFE..ACV40 (L) |
12281-0H010 |
— | ||
|
12281A
|
12281A
12281-28010 Hanger, Engine, No.1[08.2009 -] 2AZFE..ACV40 (J) |
12281-28010 |
US $12.75 |
||
|
12282D
|
12282D
12282-0H010
Hanger, Engine, No.2
[08.2009 -] 2AZFE..ACV40 (L) |
12282-0H010 |
— | ||
|
12282D
|
12282D
12282-28010 Hanger, Engine, No.2[08.2009 -] 2AZFE..ACV40 (J) |
12282-28010 |
US $26.04 |
||
|
12601B
|
12601B
12601-28230
Cover Sub-Assy, Engine, No.1
[08.2009 -] 2AZFE..ACV40 |
12601-28230 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
91511C0632
|
91511C0632
91511-C0632 BOLTFLANGE |
91511-C0632 |
US $1.97 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9010906385
|
9010906385
90109-06385 Bolt , V-Bank Cover, No.1 |
90109-06385 |
from US $0.72 |
||
|
9012606014
|
9012606014
90126-06014 STUD HEX LOBULAR |
90126-06014 |
US $3.40 |
||
|
9155281020
|
9155281020
91552-81020 Bolt(For Alternator) |
91552-81020 |
US $1.79 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
|
G191732010
|
G191732010
G1917-32010 RING O SOLENOID |
G1917-32010 |
from US $2.24 |
||
