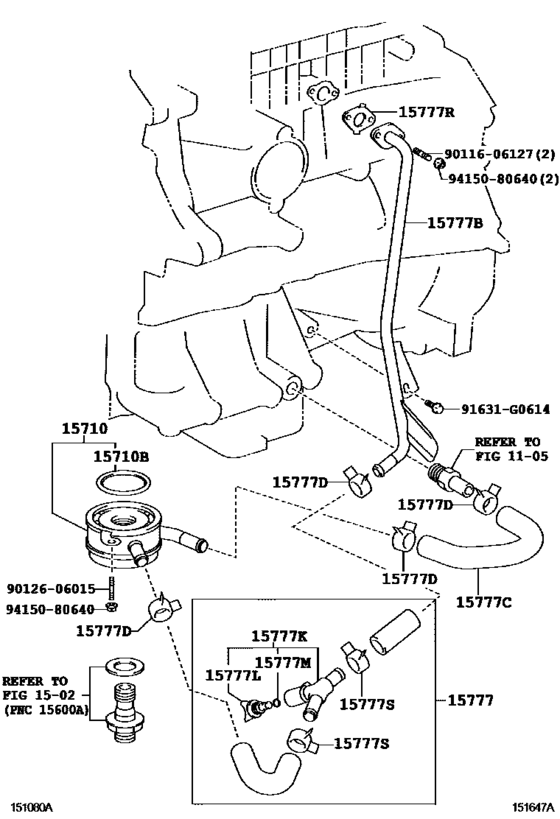

Engine Oil Cooler ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-28020 Cooler Assy, Oil[08.2009 -] 2AZFE..ACV40 |
15710-28020 |
from US $396.80 |
||
|
15710B
|
15710B
90301-52006 Ring, O(For Oil Cooler)[08.2009 -] 2AZFE..ACV40 |
90301-52006 |
from US $3.19 |
||
|
15777
|
15777
16267-28020 Hose, Oil Cooler[08.2009 - 06.2012] 2AZFE..ACV40 |
16267-28020 |
US $14.27 |
||
| replacement | |||||
|
15777
|
15777
16267-28080 Hose, Oil CoolerOIL COOLER [08.2009 - 06.2012] 2AZFE..ACV40 |
16267-28080 |
from US $7.62 |
||
|
15777B
|
15777B
16279-28010 Pipe, Oil Cooler[08.2009 -] 2AZFE..ACV40 |
16279-28010 |
US $33.49 |
||
|
15777C
|
15777C
16281-28010 Hose, Oil Cooler[08.2009 -] 2AZFE..ACV40 |
16281-28010 |
from US $5.09 |
||
|
15777D
|
15777D
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2009 - 06.2012] 2AZFE..ACV40 |
96134-41900 |
from US $1.58 |
||
|
15777K
|
15777K
90910-09119 Cock Assy, Drain(For Oil Cooler Hose)[08.2009 - 06.2012] 2AZFE..ACV40 |
90910-09119 |
US $23.52 |
||
|
15777L
|
15777L
23322-54010 Plug,air(For Oil Cooler Drain Cock)[08.2009 - 06.2012] 2AZFE..ACV40 |
23322-54010 |
from US $4.73 |
||
|
15777M
|
15777M
16492-21050 Ring, O(For Oil Cooler Drain Cock)[08.2009 - 06.2012] 2AZFE..ACV40 |
16492-21050 |
from US $2.13 |
||
|
15777R
|
15777R
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[08.2009 -] 2AZFE..ACV40 |
16258-28040 |
from US $2.53 |
||
|
15777S
|
15777S
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2009 - 06.2012] 2AZFE..ACV40 |
96134-41900 |
from US $1.58 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.20 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.72 |
||
