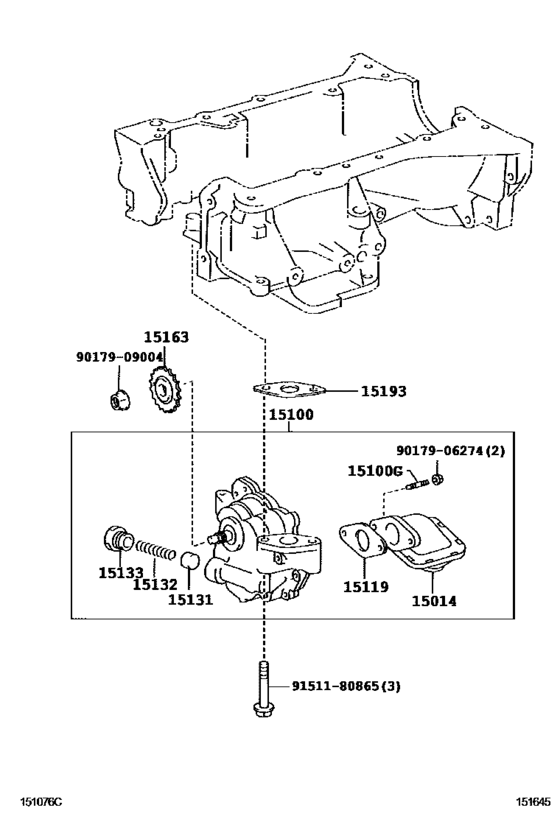

Engine Oil Pump ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15014
|
15014
15014-28020 Strainer Set, Oil Pump[08.2009 -] 2AZFE..ACV40 |
15014-28020 |
from US $14.90 |
||
|
15100
|
15100
15100-28020 Pump Assy, Oil[08.2009 -] 2AZFE..ACV40 |
15100-28020 |
from US $78.13 |
||
|
15100G
|
15100G
15183-28020 Bolt,stud(For Oil Pump)[08.2009 -] 2AZFE..ACV40 |
15183-28020 |
US $5.02 |
||
|
15119
|
15119
15119-28020 Gasket, Oil Pump Cover[08.2009 -] 2AZFE..ACV40 |
15119-28020 |
from US $4.09 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[08.2009 -] 2AZFE..ACV40 |
15131-46040 |
from US $2.87 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
15133-28020 |
from US $2.19 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[08.2009 -] 2AZFE..ACV40 |
15163-28010 |
from US $3.59 |
||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[08.2009 -] 2AZFE..ACV40 |
15193-28010 |
from US $4.88 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.01 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
