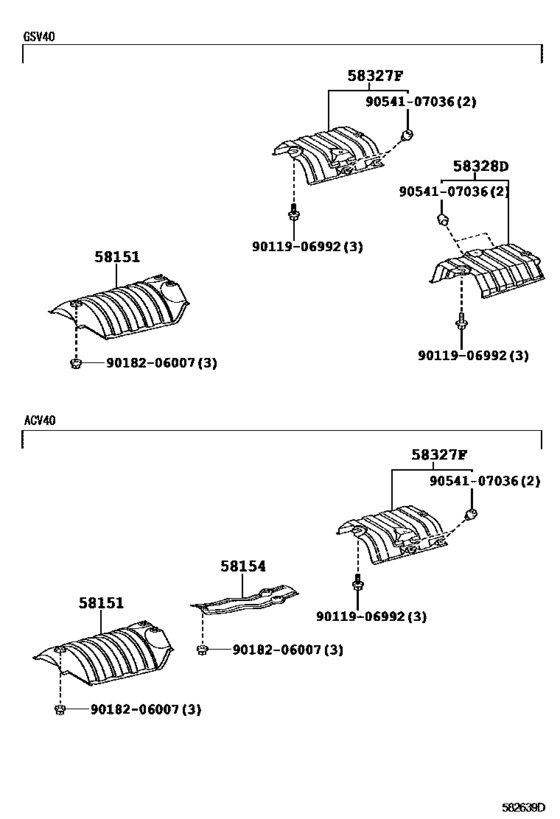

Floor Insulator ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58151
|
58151
58152-33060 Insulator, Front Floor Heat, No.1[08.2009 -] ACV40,GSV40 |
58152-33060 |
from US $35.53 |
||
|
58154
|
58154
58154-33010 Insulator, Front Floor Heat, No.2 Lower[08.2009 -] ACV40 |
58154-33010 |
US $16.31 |
||
|
58327F
|
58327F
58327-33050 Insulator, Main Muffler Heat, Rh[08.2009 -] ACV40,GSV40 |
58327-33050 |
from US $38.29 |
||
|
9011906992
|
9011906992
90119-06992 BOLT WWASHER |
90119-06992 |
from US $0.57 |
||
|
9018206007
|
9018206007
90182-06007 NUT WWASHER |
90182-06007 |
from US $0.43 |
||
|
9054107036
|
9054107036
90541-07036 CUSHION |
90541-07036 |
from US $1.88 |
