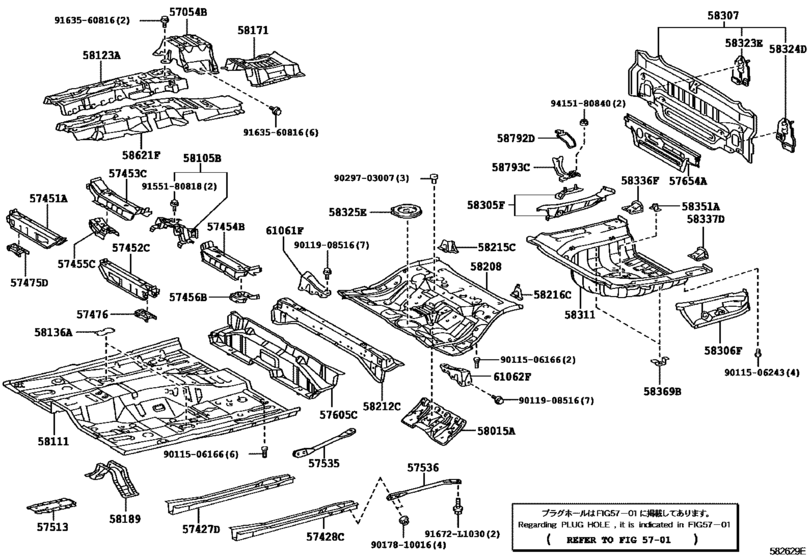

Floor Pan & Lower Back Panel ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57054B
|
57054B
57054-33050
Reinforcet Sub-Assy, Cross Member Floor, No.4
[08.2009 -] ACV40,GSV40 |
57054-33050 |
— | ||
|
57427D
|
57427D
57419-33050 Reinforcement, Front Floor Under, Rear Rh[08.2009 -] ACV40,GSV40 |
57419-33050 |
US $62.46 |
||
|
57428C
|
57428C
57429-33020 Reinforcement, Front Floor Under, Rear Lh[08.2009 -] ACV40,GSV40 |
57429-33020 |
US $62.46 |
||
|
57451A
|
57451A
57451-33060 Member, Front Floor Cross, Rh[08.2009 -] ACV40,GSV40 |
57451-33060 |
from US $62.61 |
||
|
57452C
|
57452C
57452-33031 Member, Front Floor Cross, Lh[08.2009 -] ACV40,GSV40 |
57452-33031 |
US $62.32 |
||
|
57453C
|
57453C
57453-33050 Member, Front Floor Cross Side, Rh[08.2009 -] ACV40,GSV40 |
57453-33050 |
US $110.66 |
||
|
57454B
|
57454B
57454-33051 Member, Front Floor Cross Side, Lh[08.2009 -] ACV40,GSV40 |
57454-33051 |
US $109.20 |
||
|
57455C
|
57455C
57455-33030 Bracket, Front Seat Mounting, Outside Rh[08.2009 -] ACV40,GSV40 |
57455-33030 |
US $47.47 |
||
|
57456B
|
57456B
57456-33030 Bracket, Front Seat Mounting, Outside Lh[08.2009 -] ACV40,GSV40 |
57456-33030 |
US $47.47 |
||
|
57475D
|
57475D
57475-33010 Plate, Front Floor Crossmember, Rh[08.2009 -] ACV40,GSV40 |
57475-33010 |
US $17.33 |
||
|
57476
|
57476
57476-33010 Plate, Front Floor Crossmember, Lh[08.2009 -] ACV40,GSV40 |
57476-33010 |
US $17.33 |
||
|
57513
|
57513
57513-33020
Reinforcement, Front Floor, Lh
[08.2009 -] ACV40,GSV40 |
57513-33020 |
— | ||
|
57535
|
57535
57535-33010
Brace, Front Floor, Rh
[08.2009 -] ACV40,GSV40 |
57535-33010 |
— | ||
|
57536
|
57536
57536-33010
Brace, Front Floor, Lh
[08.2009 -] ACV40,GSV40 |
57536-33010 |
— | ||
|
57605C
|
57605C
57605-33080 Member Sub-Assy, Rear Floor Cross[08.2009 -] ACV40,GSV40 |
57605-33080 |
US $267.90 |
||
|
57654A
|
57654A
57654-33020 Member, Rear Floor Cross, No.3[08.2009 -] ACV40,GSV40 |
57654-33020 |
US $104.96 |
||
|
58015A
|
58015A
58015-33041 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[08.2009 -] ACV40,GSV40 |
58015-33041 |
US $71.78 |
||
|
58105B
|
58105B
58105-33020 Panel Sub-Assy, Front Floor Rear Upper Sub[08.2009 -] ACV40,GSV40 |
58105-33020 |
US $37.42 |
||
|
58111
|
58111
58111-33070 Pan, Front Floor[08.2009 -] ACV40,GSV40 |
58111-33070 |
US $417.87 |
||
|
58123A
|
58123A
58013-33070 Support, Shift & Select Lever[08.2009 -] ACV40,GSV40 |
58013-33070 |
US $88.82 |
||
|
58136A
|
58136A
58136-33010 Cover, Front Floor Hole[08.2009 - 06.2012] ACV40,GSV40 |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58171-33080 Reinforcement, Parking Brake Base[08.2009 -] ACV40,GSV40 |
58171-33080 |
US $63.63 |
||
|
58189
|
58189
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket[08.2009 - 04.2011] ACV40,GSV40 |
58189-33050 |
US $55.47 |
||
|
58189
|
58189
58189-33070 Reinforcement, Exhaust Pipe Clamp Bracket[05.2011 -] ACV40,GSV40 |
58189-33070 |
US $74.26 |
||
| replacement | |||||
|
58189
|
58189
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket[05.2011 -] ACV40,GSV40 |
58189-33050 |
US $55.47 |
||
|
58208
|
58208
58211-33142 Pan, Center Floor[08.2009 -] ACV40,GSV40 |
58211-33142 |
US $238.78 |
||
|
58212C
|
58212C
58202-33010 Pan Sub-Assy, Center Floor, Front[08.2009 -] ACV40,GSV40 |
58202-33010 |
US $198.02 |
||
|
58215C
|
58215C
58215-33040 Reinforcement, Center Floor Panel, No.2 Rh[08.2009 -] ACV40,GSV40 |
58215-33040 |
US $9.76 |
||
|
58216C
|
58216C
58216-33030 Reinforcement, Center Floor Panel, No.2 Lh[08.2009 -] ACV40,GSV40 |
58216-33030 |
US $9.76 |
||
|
58305F
|
58305F
58305-33070 Panel Sub-Assy, Rear Floor Side, Rh[08.2009 -] ACV40,GSV40 |
58305-33070 |
US $211.01 |
||
| replacement | |||||
|
58305F
|
58305F
58305-06090 Panel Sub-Assy, Rear Floor Side, Rh[08.2009 -] ACV40,GSV40 |
58305-06090 |
US $211.01 |
||
|
58306F
|
58306F
58306-33030 Panel Sub-Assy, Rear Floor Side, Lh[08.2009 -] ACV40,GSV40 |
58306-33030 |
US $56.73 |
||
|
58307
|
58307
58307-33140 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.2009 -] ACV40,GSV40 |
58307-33140 |
US $417.15 |
||
|
58311
|
58311
58311-33070 Pan, Rear Floor[08.2009 - 01.2011] ACV40,GSV40 |
58311-33070 |
US $371.28 |
||
| replacements | |||||
|
58311
|
58311
58311-33071 Pan, Rear Floor[08.2009 - 01.2011] ACV40,GSV40 |
58311-33071 |
from US $279.55 |
||
|
58311
|
58311
90333-30002 Cover, Front Floor Hole[08.2009 - 01.2011] ACV40,GSV40 |
90333-30002 |
from US $1.05 |
||
|
58311
|
58311
58311-33071 Pan, Rear Floor[01.2011 -] ACV40,GSV40 |
58311-33071 |
from US $279.55 |
||
|
58323E
|
58323E
58323-33090
Reinforcement, Rear Bumper Arm Support, Rh
[08.2009 -] ACV40,GSV40 |
58323-33090 |
— | ||
|
58324D
|
58324D
58324-33070
Reinforcement, Rear Bumper Arm Support, Lh
[08.2009 -] ACV40,GSV40 |
58324-33070 |
— | ||
|
58325E
|
58325E
58325-33050 Cover, Rear Floor Service Hole[08.2009 -] ACV40,GSV40 |
58325-33050 |
US $13.83 |
||
|
58336F
|
58336F
58336-33020 Reinforcement, Rear Floor Pan, Rh[08.2009 -] ACV40,GSV40 |
58336-33020 |
from US $17.04 |
||
|
58337D
|
58337D
58337-33030 Reinforcement, Rear Floor Pan, Lh[08.2009 -] ACV40,GSV40 |
58337-33030 |
from US $17.04 |
||
|
58351A
|
58351A
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[08.2009 -] ACV40,GSV40 |
58351-33010 |
US $7.35 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[08.2009 -] ACV40,GSV40 |
58369-32010 |
US $3.32 |
||
|
58621F
|
58621F
58621-33110
Silencer, Center Console, No.1
[08.2009 -] ACV40,GSV40 |
58621-33110 |
— | ||
|
58792D
|
58792D
58792-33010 Support, Jack[08.2009 - 12.2009] ACV40,GSV40 |
58792-33010 |
US $8.44 |
||
|
58792D
|
58792D
58792-33020
Support, Jack
[01.2010 -] ACV40,GSV40 |
58792-33020 |
— | ||
|
58793C
|
58793C
58793-33010 Bracket, Jack Carrier, No.1[08.2009 -] ACV40,GSV40 |
58793-33010 |
US $9.61 |
||
|
61061F
|
61061F
61061-33010 Gusset Sub-Assy, Quarter Wheel House, No.1[08.2009 -] ACV40,GSV40 |
61061-33010 |
US $63.77 |
||
|
61062F
|
61062F
61062-33010 Gusset Sub-Assy, Quarter Wheel House, No.2[08.2009 -] ACV40,GSV40 |
61062-33010 |
US $63.77 |
||
|
91672L1030
|
91672L1030
91672-L1030 New Genuine Part |
91672-L1030 |
US $2.15 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.91 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.43 |
||
|
9011908516
|
9011908516
90119-08516 BOLT |
90119-08516 |
from US $0.78 |
||
|
9017810016
|
9017810016
90178-10016 NUT FLANGE |
90178-10016 |
from US $0.87 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
||
|
9163560816
|
9163560816
91635-60816 New Genuine Part |
91635-60816 |
US $0.73 |
||
|
9415180840
|
9415180840
94151-80840 NUT FLANGE |
94151-80840 |
from US $0.78 |
||
