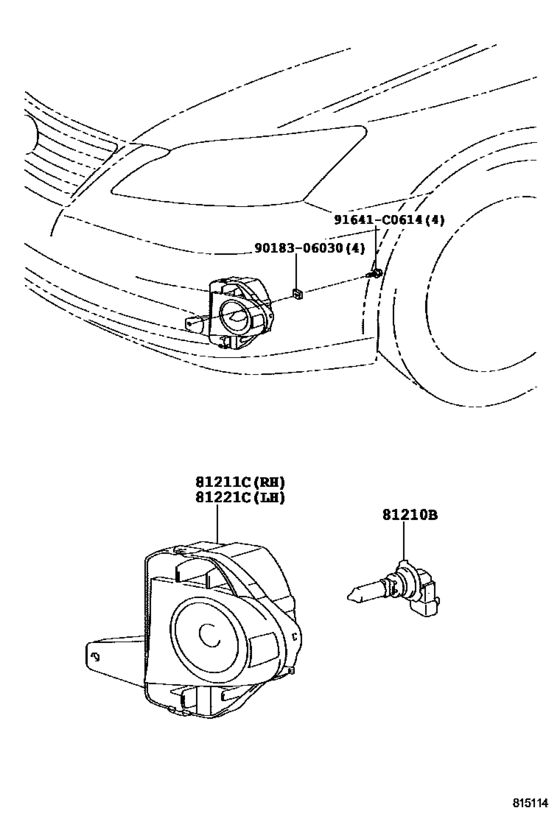

Fog Lamp ([08.2009 - 06.2012] (0908-1206)) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210B
|
81210B
90981-13047 Bulb (HB4)[08.2009 - 06.2012] ACV40,GSV40 12V 51W,HALOGEN |
90981-13047 |
from US $14.90 |
||
|
81211C
|
81211C
81211-33230 Lamp Unit, Fog Lamp, RhFOG LAMP, RH [08.2009 - 06.2012] ACV40,GSV40..CHI |
81211-33230 |
US $346.92 |
||
|
81221C
|
81221C
81221-33230 Lamp Unit, Fog Lamp, LhFOG LAMP, LH [08.2009 - 06.2012] ACV40,GSV40..CHI |
81221-33230 |
US $331.46 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.65 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.65 |
