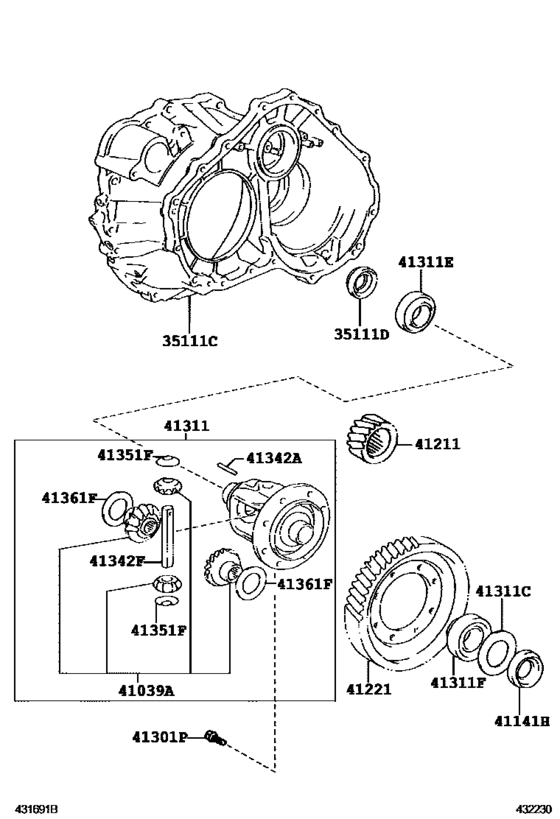

Front Axle Housing & Differential ([08.2009 - ] U250E (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-28032 Housing, Transaxle[08.2009 -] ACV40 |
35105-28032 |
from US $521.25 |
||
|
35111D
|
35111D
90311-40031 Oil Seal, Front Drive Shaft, Rh[08.2009 -] ACV40 |
90311-40031 |
from US $6.23 |
||
|
41039A
|
41039A
41039-28020 Gear Kit, Differential[08.2009 -] ACV40 |
41039-28020 |
US $154.34 |
||
|
41141H
|
41141H
90311-50036
Oil Seal, Front Drive Shaft, Lh
[08.2009 - 08.2011] ACV40 |
90311-50036 |
— | ||
| replacement | |||||
|
41141H
|
41141H
90311-50048 Oil Seal, Front Drive Shaft, Lh[08.2009 - 08.2011] ACV40 |
90311-50048 |
from US $9.68 |
||
|
41141H
|
41141H
90311-50048 Oil Seal, Front Drive Shaft, Lh[08.2011 -] ACV40 |
90311-50048 |
from US $9.68 |
||
|
41211
|
41211
41211-33150 Pinion, Differential DriveDIFFERENTIAL DRIVE [08.2009 -] ACV40 |
41211-33150 |
US $134.08 |
||
|
41221
|
41221
41221-33170
Gear, Front Differential Ring
[08.2009 -] ACV40 |
41221-33170 |
— | ||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[08.2009 -] ACV40 |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-28090 Case, Front Differential[08.2009 -] ACV40 |
41301-28090 |
US $374.19 |
||
|
41311C
|
41311C
90564-68006 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=1.90,MARK 0 |
90564-68006 |
US $1.60 |
||
|
41311C
|
41311C
90564-68007 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=1.95,MARK 1 |
90564-68007 |
US $1.60 |
||
|
41311C
|
41311C
90564-68008 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.00,MARK 2 |
90564-68008 |
US $2.48 |
||
|
41311C
|
41311C
90564-68009 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.05,MARK 3 |
90564-68009 |
US $2.48 |
||
|
41311C
|
41311C
90564-68010 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.10,MARK 4 |
90564-68010 |
US $2.48 |
||
|
41311C
|
41311C
90564-68011 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.15,MARK 5 |
90564-68011 |
US $2.48 |
||
|
41311C
|
41311C
90564-68012 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.20,MARK 6 |
90564-68012 |
US $2.48 |
||
|
41311C
|
41311C
90564-68013 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.25,MARK 7 |
90564-68013 |
US $2.48 |
||
|
41311C
|
41311C
90564-68014 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.30,MARK 8 |
90564-68014 |
US $2.48 |
||
|
41311C
|
41311C
90564-68015 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.35,MARK 9 |
90564-68015 |
US $2.48 |
||
|
41311C
|
41311C
90564-68016 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.40,MARK A |
90564-68016 |
US $2.48 |
||
|
41311C
|
41311C
90564-68017 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.45,MARK B |
90564-68017 |
US $2.48 |
||
|
41311C
|
41311C
90564-68018 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.50,MARK C |
90564-68018 |
US $2.48 |
||
|
41311C
|
41311C
90564-68019 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.55,MARK D |
90564-68019 |
US $2.48 |
||
|
41311C
|
41311C
90564-68020 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.60,MARK E |
90564-68020 |
US $2.48 |
||
|
41311C
|
41311C
90564-68021 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.65,MARK F |
90564-68021 |
US $2.48 |
||
|
41311C
|
41311C
90564-68022 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.70,MARK G |
90564-68022 |
US $2.48 |
||
|
41311C
|
41311C
90564-68023 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.75,MARK H |
90564-68023 |
US $2.48 |
||
|
41311C
|
41311C
90564-68024 Shim (For Front Differential Case Rear)[08.2009 -] ACV40 T=2.80,MARK J |
90564-68024 |
US $2.48 |
||
|
41311E
|
41311E
90366-50075 Bearing, Tapered Roller (For Front Differential Case Front)[08.2009 -] ACV40 |
90366-50075 |
US $16.95 |
||
|
41311F
|
41311F
90366-50078 Bearing, Tapered Roller (For Front Differential Case Rear)[08.2009 -] ACV40 |
90366-50078 |
from US $19.74 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[08.2009 -] ACV40,GSV40 |
90250-06058 |
from US $2.03 |
||
|
41342F
|
41342F
41342-28030 Shaft, Front Differential Pinion, No.1[08.2009 -] ACV40 |
41342-28030 |
US $19.51 |
||
|
41351F
|
41351F
41351-28010 Washer, Front Differential Pinion Thrust[08.2009 -] ACV40 |
41351-28010 |
US $2.18 |
||
|
41361F
|
41361F
41361-28230 Washer, Front Differential Side Gear Thrust, No.1[08.2009 -] ACV40 T=1.0,MARK 1 |
41361-28230 |
US $2.62 |
||
|
41361F
|
41361F
41361-28240 Washer, Front Differential Side Gear Thrust, No.1[08.2009 -] ACV40 T=1.1,MARK 2 |
41361-28240 |
US $2.62 |
||
|
41361F
|
41361F
41361-28250 Washer, Front Differential Side Gear Thrust, No.1[08.2009 -] ACV40 T=1.2,MARK 3 |
41361-28250 |
US $2.62 |
||
|
41361F
|
41361F
41361-28260 Washer, Front Differential Side Gear Thrust, No.1[08.2009 -] ACV40 T=1.3,MARK 4 |
41361-28260 |
US $2.62 |
||
