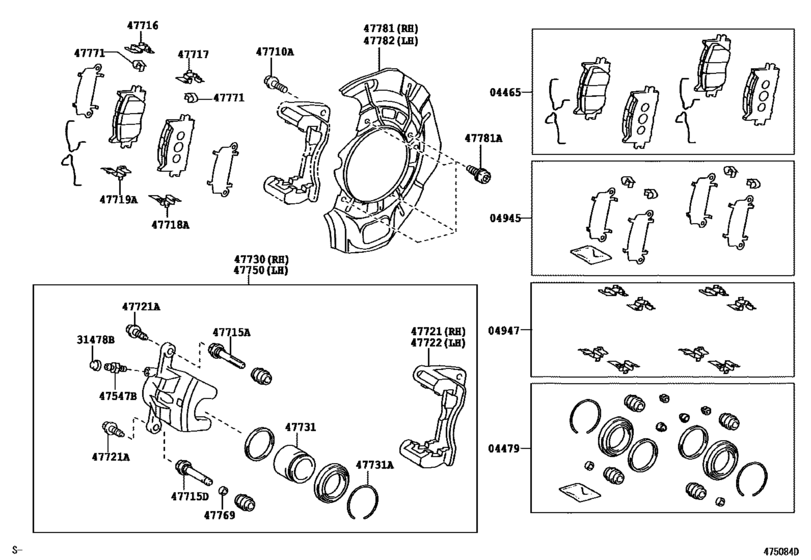

Front Disc Brake Caliper & Dust Cover ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-33470
Pad Kit, Disc Brake, Front
[08.2009 - 09.2011] ACV40,GSV40 MARK NBK D6911H |
04465-33470 |
— | ||
| replacement | |||||
|
04465
|
04465
04465-33471 Pad Kit, Disc Brake, Front[08.2009 - 09.2011] ACV40,GSV40 MARK NBK D6911H |
04465-33471 |
from US $103.34 |
||
|
04465
|
04465
04465-33471 Pad Kit, Disc Brake, Front[09.2011 -] ACV40,GSV40 MARK NBK D6911H |
04465-33471 |
from US $103.34 |
||
|
04479
|
04479
04478-33100 Cylinder Kit, Disc Brake, Front[08.2009 - 09.2011] ACV40,GSV40 |
04478-33100 |
from US $30.24 |
||
|
04479
|
04479
04478-58010 Cylinder Kit, Disc Brake, Front[09.2011 -] ACV40,GSV40 |
04478-58010 |
from US $33.65 |
||
|
04945
|
04945
04945-33260 Shim Kit, Anti Squeal, Front[08.2009 -] ACV40,GSV40 |
04945-33260 |
from US $21.91 |
||
|
04947
|
04947
04947-33240 Fitting Kit, Disc Brake, Front[08.2009 -] ACV40,GSV40 |
04947-33240 |
from US $36.90 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[08.2009 -] ACV40,GSV40 |
31478-30010 |
from US $1.48 |
||
|
47547B
|
47547B
47547-20010 Plug, Bleeder(For Release Cylinder)[08.2009 -] ACV40,GSV40 |
47547-20010 |
from US $3.58 |
||
|
47710A
|
47710A
90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)[08.2009 - 06.2012] ACV40,GSV40 *12-1.25PX29.5-23 |
90105-12208 |
US $2.87 |
||
|
47715A
|
47715A
47714-33361 Pin, Front Disc Brake Cylinder Slide[09.2011 -] ACV40,GSV40 |
47714-33361 |
from US $6.16 |
||
|
47715A
|
47715A
47715-52190 Pin, Main(For Front Disc Brake Cylinder Slide)[08.2009 - 09.2011] ACV40,GSV40 |
47715-52190 |
from US $5.57 |
||
|
47715D
|
47715D
47715-33340 Pin, Front Disc Brake Cylinder Slide, No.2[08.2009 -] ACV40,GSV40 |
47715-33340 |
from US $5.68 |
||
|
47716
|
47716
47718-33340 Plate, Pad Support, No.1(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
47718-33340 |
US $3.49 |
||
|
47717
|
47717
47719-33340 Plate, Pad Support, No.2(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
47719-33340 |
US $3.49 |
||
|
47718A
|
47718A
47718-33340 Plate, Pad Support, No.1(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
47718-33340 |
US $3.49 |
||
|
47719A
|
47719A
47719-33340 Plate, Pad Support, No.2(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
47719-33340 |
US $3.49 |
||
|
47721
|
47721
47721-33340 Mounting, Front Disc Brake Cylinder, Rh[08.2009 - 09.2011] ACV40,GSV40 |
47721-33340 |
from US $98.59 |
||
|
47721
|
47721
47721-33361 Mounting, Front Disc Brake Cylinder, Rh[09.2011 -] ACV40,GSV40 |
47721-33361 |
US $110.07 |
||
|
47721A
|
47721A
90105-08164 Bolt(For Front Disc Brake Cylinder Slide)[08.2009 -] ACV40,GSV40 *8-1.00PX23-15 |
90105-08164 |
from US $0.89 |
||
|
47722
|
47722
47722-33340 Mounting, Front Disc Brake Cylinder, Lh[08.2009 - 09.2011] ACV40,GSV40 |
47722-33340 |
from US $93.18 |
||
|
47722
|
47722
47722-33361 Mounting, Front Disc Brake Cylinder, Lh[09.2011 -] ACV40,GSV40 |
47722-33361 |
US $139.40 |
||
|
47730
|
47730
47730-33340 Cylinder Assy, Front Disc Brake, Rh[08.2009 - 09.2011] ACV40,GSV40 |
47730-33340 |
US $529.98 |
||
|
47730
|
47730
47730-33361 Cylinder Assy, Front Disc Brake, Rh[09.2011 -] ACV40,GSV40 |
47730-33361 |
US $614.64 |
||
|
47731
|
47731
47731-33340 Piston, Front Disc Brake[08.2009 -] ACV40,GSV40 |
47731-33340 |
from US $30.02 |
||
|
47731A
|
47731A
90522-76002 Ring, Set(For Front Disc Brake Piston)[08.2009 -] ACV40,GSV40 |
90522-76002 |
US $2.48 |
||
|
47750
|
47750
47750-33340 Cylinder Assy, Disc Brake, Lh[08.2009 - 09.2011] ACV40,GSV40 |
47750-33340 |
US $529.98 |
||
|
47750
|
47750
47750-33361 Cylinder Assy, Disc Brake, Lh[09.2011 -] ACV40,GSV40 |
47750-33361 |
US $400.40 |
||
|
47769
|
47769
47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[08.2009 -] ACV40,GSV40 |
47769-50010 |
from US $0.74 |
||
|
47771
|
47771
47771-53060 Plate, Pad Wear Indicator, No.1[08.2009 -] ACV40,GSV40 |
47771-53060 |
from US $1.37 |
||
|
47781
|
47781
47781-33040 Cover, Disc Brake Dust, Front Rh[08.2009 - 06.2012] ACV40,GSV40 |
47781-33040 |
US $22.13 |
||
|
47781A
|
47781A
90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[08.2009 - 06.2012] ACV40,GSV40 |
90119-06227 |
from US $0.67 |
||
|
47782
|
47782
47782-33040 Cover, Disc Brake Dust, Front Lh[08.2009 - 06.2012] ACV40,GSV40 |
47782-33040 |
US $22.13 |
||
