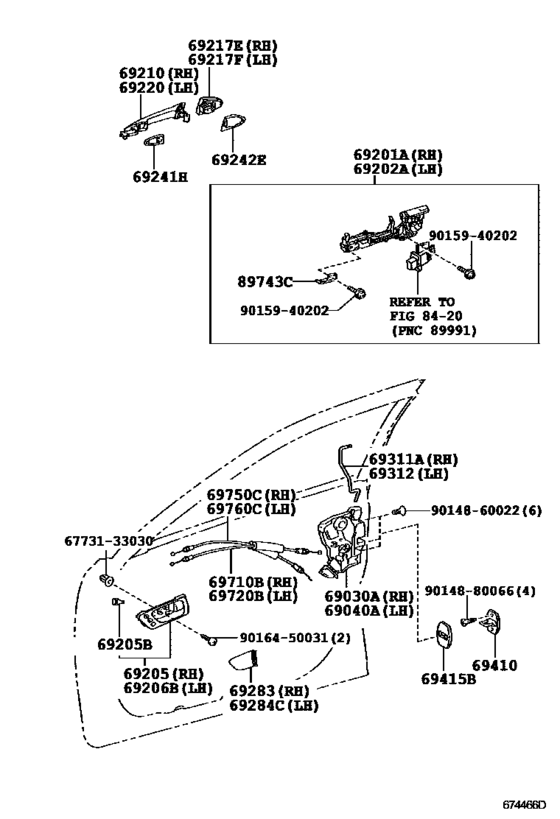

Front Door Lock & Handle ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-42221 Lock Assy, Front Door W/motor, RhFRONT DOOR, RH [08.2009 -] ACV40,GSV40 |
69030-42221 |
US $182.84 |
||
|
69030A
|
69030A
69030-42230 Lock Assy, Front Door W/motor, Rh[08.2010 -] ACV40 TAIWAN SPEC |
69030-42230 |
from US $129.78 |
||
|
69040A
|
69040A
69040-42241 Lock Assy, Front Door W/motor, LhFRONT DOOR, LH [08.2009 -] ACV40,GSV40 |
69040-42241 |
from US $200 |
||
|
69040A
|
69040A
69040-42250 Lock Assy, Front Door W/motor, Lh[08.2010 -] ACV40 TAIWAN SPEC |
69040-42250 |
from US $200 |
||
|
69201A
|
69201A
69201-33030 Frame Sub-Assy, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [08.2009 -] ACV40,GSV40 |
69201-33030 |
US $276.64 |
||
|
69202A
|
69202A
69202-33030
Frame Sub-Assy, Front Door Outside Handle, Lh
[08.2009 -] ACV40,GSV40 |
69202-33030 |
— | ||
|
69205
|
69205
67705-33400-C0
Handle Sub-Assy, Front Door Inside, Rh
[08.2009 - 06.2012] ACV40 BLACK,TRIM1#,2# |
67705-33400-C0 |
— | ||
|
69205
|
69205
67705-33400-E0
Handle Sub-Assy, Front Door Inside, Rh
[08.2009 - 06.2012] ACV40 ORCHID BROWN,TRIM0# |
67705-33400-E0 |
— | ||
|
69205
|
69205
67705-33410-C0
Handle Sub-Assy, Front Door Inside, Rh
[08.2009 - 06.2012] GSV40 BLACK,TRIM1#,2#; ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM1#,2# |
67705-33410-C0 |
— | ||
|
69205
|
69205
67705-33410-E0
Handle Sub-Assy, Front Door Inside, Rh
[08.2009 - 06.2012] GSV40 ORCHID BROWN,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),ORCHID BROWN,TRIM0# |
67705-33410-E0 |
— | ||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[08.2009 -] ACV40,GSV40 |
90541-04014 |
from US $0.78 |
||
|
69206B
|
69206B
67706-33410-C0
Handle Sub-Assy, Front Door Inside, Lh
[08.2009 - 06.2012] ACV40 BLACK,TRIM1#,2# |
67706-33410-C0 |
— | ||
|
69206B
|
69206B
67706-33410-E0
Handle Sub-Assy, Front Door Inside, Lh
[08.2009 - 06.2012] ACV40 ORCHID BROWN,TRIM0# |
67706-33410-E0 |
— | ||
|
69206B
|
69206B
67706-33420-C0
Handle Sub-Assy, Front Door Inside, Lh
[08.2009 - 06.2012] GSV40 BLACK,TRIM1#,2#; ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM1#,2# |
67706-33420-C0 |
— | ||
|
69206B
|
69206B
67706-33420-E0
Handle Sub-Assy, Front Door Inside, Lh
[08.2009 - 06.2012] GSV40 ORCHID BROWN,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY),ORCHID BROWN,TRIM0# |
67706-33420-E0 |
— | ||
|
69210
|
69210
69210-33090 Handle Assy, Front Door, Outside Rh[08.2009 -] ACV40,GSV40 *CR |
69210-33090 |
from US $154.70 |
||
|
69217E
|
69217E
69217-33040 Cover, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [08.2009 -] ACV40,GSV40 *CR |
69217-33040 |
from US $16.45 |
||
|
69217F
|
69217F
69218-33010 Cover, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [08.2009 -] ACV40,GSV40 *CR |
69218-33010 |
from US $5.91 |
||
|
69220
|
69220
69220-33060 Handle Assy, Front Door Outside, Lh[08.2009 -] ACV40,GSV40 *CR |
69220-33060 |
from US $133.67 |
||
|
69241H
|
69241H
69241-53010 Pad, Rear Door Outside Handle, Front[08.2009 -] ACV40,GSV40 RH |
69241-53010 |
US $11.65 |
||
|
69241H
|
69241H
69242-53010 Pad, Rear Door Outside Handle, Front[08.2009 -] ACV40,GSV40 LH |
69242-53010 |
from US $6.44 |
||
|
69242E
|
69242E
69241-50030 Pad, Front Door Outside Handle, Rear[08.2009 -] ACV40,GSV40 RH |
69241-50030 |
from US $8.28 |
||
|
69242E
|
69242E
69242-50030 Pad, Front Door Outside Handle, Rear[08.2009 -] ACV40,GSV40 LH |
69242-50030 |
from US $7.56 |
||
|
69283
|
69283
69283-30050-C0 Plug, Front Door Inside Handle Bezel, Rh[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM10,11,2# |
69283-30050-C0 |
from US $12.01 |
||
|
69283
|
69283
69283-30050-E0 Plug, Front Door Inside Handle Bezel, Rh[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM00,01 |
69283-30050-E0 |
US $10.05 |
||
|
69284C
|
69284C
69284-30050-C0 Plug, Front Door Inside Handle Bezel, Lh[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM10,11,2# |
69284-30050-C0 |
from US $12.01 |
||
|
69284C
|
69284C
69284-30050-E0 Plug, Front Door Inside Handle Bezel, Lh[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM00,01 |
69284-30050-E0 |
US $10.05 |
||
|
69311A
|
69311A
69311-33080
Rod, Front Door Lock Open, Rh
[08.2009 -] ACV40,GSV40 |
69311-33080 |
— | ||
|
69312
|
69312
69312-33080
Rod, Front Door Lock Open, Lh
[08.2009 -] ACV40,GSV40 |
69312-33080 |
— | ||
|
69410
|
69410
69410-33030 Plate Assy, Front Door Lock StrikerFRONT DOOR LOCK STRIKER [08.2009 -] ACV40,GSV40 |
69410-33030 |
from US $17.23 |
||
|
69415B
|
69415B
69415-33010 Cover, Door Lock Striker, Front[08.2009 -] ACV40,GSV40 |
69415-33010 |
from US $3.36 |
||
|
69710B
|
69710B
69710-33070
Cable Assy, Front Door Lock Remote Control, Rh
[08.2009 -] ACV40,GSV40 |
69710-33070 |
— | ||
|
69720B
|
69720B
69710-33070
Cable Assy, Front Door Lock Remote Control, Rh
[08.2009 -] ACV40,GSV40 |
69710-33070 |
— | ||
|
69750C
|
69750C
69750-33060
Cable Assy, Front Door Inside Locking, Rh
[08.2009 -] ACV40,GSV40 |
69750-33060 |
— | ||
|
69760C
|
69760C
69750-33060
Cable Assy, Front Door Inside Locking, Rh
[08.2009 -] ACV40,GSV40 |
69750-33060 |
— | ||
|
89743C
|
89743C
89743-53010 Bracket, Electrical Key Wire Harness[08.2009 - 06.2012] ACV40,GSV40 RH |
89743-53010 |
US $6.26 |
||
|
89743C
|
89743C
89743-53020 Bracket, Electrical Key Wire Harness[08.2009 - 06.2012] ACV40,GSV40 LH |
89743-53020 |
US $6.26 |
||
|
6773133030
|
6773133030
67731-33030
Spacer, Side Trim, No.1
|
67731-33030 |
— | ||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.65 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.63 |
