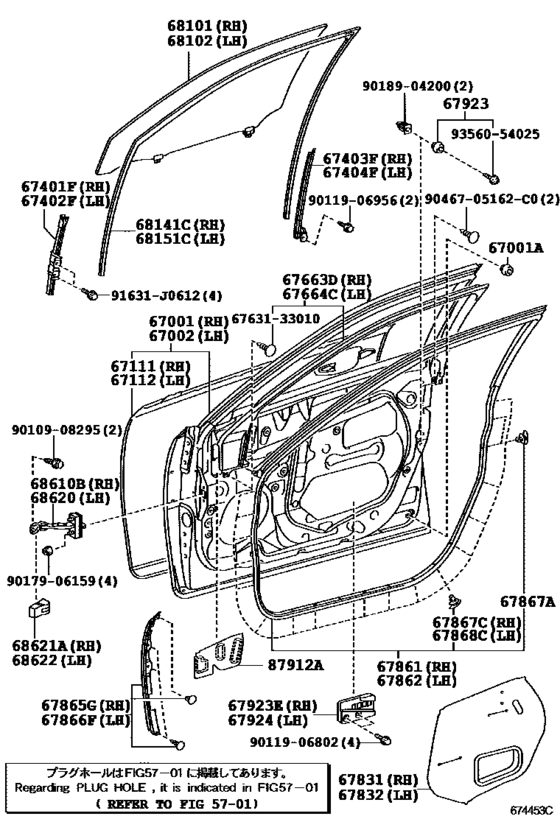

Front Door Panel & Glass ([05.2006 - ] DOOR PANEL (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-33180 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [08.2009 - 06.2012] ACV40,GSV40 |
67001-33180 |
from US $1,023.95 |
||
|
67001A
|
67001A
90541-09069 Cushion, Hood Bumper[08.2009 -] ACV40,GSV40 |
90541-09069 |
from US $2.17 |
||
|
67002
|
67002
67002-33180 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [08.2009 - 06.2012] ACV40,GSV40 |
67002-33180 |
from US $1,023.95 |
||
|
67111
|
67111
67111-33080 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [08.2009 -] ACV40,GSV40 |
67111-33080 |
US $365.31 |
||
|
67112
|
67112
67112-33080
Panel, Front Door, Outer Lh
[08.2009 -] ACV40,GSV40 |
67112-33080 |
— | ||
|
67401F
|
67401F
67401-33080
Frame Sub-Assy, Front Door, Front Lower Rh
[08.2009 -] ACV40,GSV40 |
67401-33080 |
— | ||
|
67402F
|
67402F
67402-33080
Frame Sub-Assy, Front Door, Front Lower Lh
[08.2009 -] ACV40,GSV40 |
67402-33080 |
— | ||
|
67403F
|
67403F
67403-33060
Frame Sub-Assy, Front Door, Rear Lower Rh
[08.2009 -] ACV40,GSV40 |
67403-33060 |
— | ||
|
67404F
|
67404F
67404-33060
Frame Sub-Assy, Front Door, Rear Lower Lh
[08.2009 -] ACV40,GSV40 |
67404-33060 |
— | ||
|
67663D
|
67663D
67663-33020
Garnish, Door Frame, Rh
[08.2009 -] ACV40,GSV40 |
67663-33020 |
— | ||
|
67664C
|
67664C
67664-33020
Garnish, Door Frame, Lh
[08.2009 -] ACV40,GSV40 |
67664-33020 |
— | ||
|
67831
|
67831
67831-33100 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [08.2009 -] ACV40,GSV40 |
67831-33100 |
US $20.97 |
||
|
67832
|
67832
67832-33100
Cover, Front Door Service Hole, Lh
[08.2009 -] ACV40,GSV40 |
67832-33100 |
— | ||
|
67861
|
67861
67861-33070
Weatherstrip, Front Door, Rh
[08.2009 -] ACV40,GSV40 |
67861-33070 |
— | ||
|
67862
|
67862
67862-33070
Weatherstrip, Front Door, Lh
[08.2009 -] ACV40,GSV40 |
67862-33070 |
— | ||
|
67865G
|
67865G
67865-33010 Weatherstrip, Front Door, No.3 RhFRONT DOOR, NO.3 RH [08.2009 -] ACV40,GSV40 |
67865-33010 |
US $30.23 |
||
|
67866F
|
67866F
67866-33010
Weatherstrip, Front Door, No.3 Lh
[08.2009 -] ACV40,GSV40 |
67866-33010 |
— | ||
|
67867A
|
67867A
90467-04034 Clip[08.2009 -] ACV40,GSV40 |
90467-04034 |
US $1.08 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2009 -] ACV40,GSV40 |
67867-12150 |
from US $1.79 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2009 -] ACV40,GSV40 |
67867-12150 |
from US $1.79 |
||
|
67923
|
67923
67923-48060 Cushion, Front Door Stiffener, No.1FRONT DOOR STIFFENER, NO.1 [08.2009 -] ACV40,GSV40 |
67923-48060 |
from US $2.39 |
||
|
67923E
|
67923E
67923-33070
Cushion, Front Door Stiffener, No.1
[08.2009 -] ACV40,GSV40 |
67923-33070 |
— | ||
|
67924
|
67924
67924-33040
Cushion, Front Door Stiffener, No.2
[08.2009 -] ACV40,GSV40 |
67924-33040 |
— | ||
|
68101
|
68101
68101-33151
Glass Sub-Assy, Front Door, Rh
[08.2009 - 07.2011] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68101-33151 |
— | ||
| replacement | |||||
|
68101
|
68101
68101-33152
Glass Sub-Assy, Front Door, Rh
[08.2009 - 07.2011] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68101-33152 |
— | ||
|
68101
|
68101
68101-33152
Glass Sub-Assy, Front Door, Rh
[07.2011 - 05.2012] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68101-33152 |
— | ||
|
68102
|
68102
68102-33151
Glass Sub-Assy, Front Door, Lh
[08.2009 - 07.2011] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68102-33151 |
— | ||
| replacement | |||||
|
68102
|
68102
68102-33152
Glass Sub-Assy, Front Door, Lh
[08.2009 - 07.2011] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68102-33152 |
— | ||
|
68102
|
68102
68102-33152
Glass Sub-Assy, Front Door, Lh
[07.2011 - 05.2012] ACV40,GSV40 *UVCT,T=5.0,GREEN |
68102-33152 |
— | ||
|
68141C
|
68141C
68141-33100
Run, Front Door Glass, Rh
[08.2009 -] ACV40,GSV40 |
68141-33100 |
— | ||
|
68151C
|
68151C
68151-33090
Run, Front Door Glass, Lh
[08.2009 -] ACV40,GSV40 |
68151-33090 |
— | ||
|
68610B
|
68610B
68610-33080
Check Assy, Front Door, Rh
[08.2009 - 05.2010] ACV40,GSV40 |
68610-33080 |
— | ||
| replacement | |||||
|
68610B
|
68610B
68610-33081 Check Assy, Front Door, Rh[08.2009 - 05.2010] ACV40,GSV40 |
68610-33081 |
US $50.09 |
||
|
68610B
|
68610B
68610-33081 Check Assy, Front Door, Rh[06.2010 -] ACV40,GSV40 |
68610-33081 |
US $50.09 |
||
|
68620
|
68620
68620-33080
Check Assy, Front Door, Lh
[08.2009 - 05.2010] ACV40,GSV40 |
68620-33080 |
— | ||
| replacement | |||||
|
68620
|
68620
68620-33081 Check Assy, Front Door, Lh[08.2009 - 05.2010] ACV40,GSV40 |
68620-33081 |
US $88.71 |
||
|
68620
|
68620
68620-33081 Check Assy, Front Door, Lh[06.2010 -] ACV40,GSV40 |
68620-33081 |
US $88.71 |
||
|
68621A
|
68621A
68621-53010 Cover, Front Door Check, Rh[08.2009 -] ACV40,GSV40 |
68621-53010 |
from US $2.20 |
||
|
68622
|
68622
68622-53010 Cover, Front Door Check, Lh[08.2009 -] ACV40,GSV40 |
68622-53010 |
from US $2.20 |
||
|
87912A
|
87912A
87912-33010
Protector, Outer Mirror
[08.2009 -] ACV40,GSV40 RH |
87912-33010 |
— | ||
|
87912A
|
87912A
87912-33020
Protector, Outer Mirror
[08.2009 -] ACV40,GSV40 LH |
87912-33020 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
6763133010
|
6763133010
67631-33010
Seal, Door Trim Panel(for Front Door)
|
67631-33010 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.76 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9011906956
|
9011906956
90119-06956 BOLT WWASHER |
90119-06956 |
US $1.08 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.65 |
||
|
9046705162C0
|
9046705162C0
90467-05162-C0 Clip, Heater To Register Duct |
90467-05162-C0 |
from US $0.65 |
||
|
9356054025
|
9356054025
93560-54025 SCREW |
93560-54025 |
US $0.52 |
||
