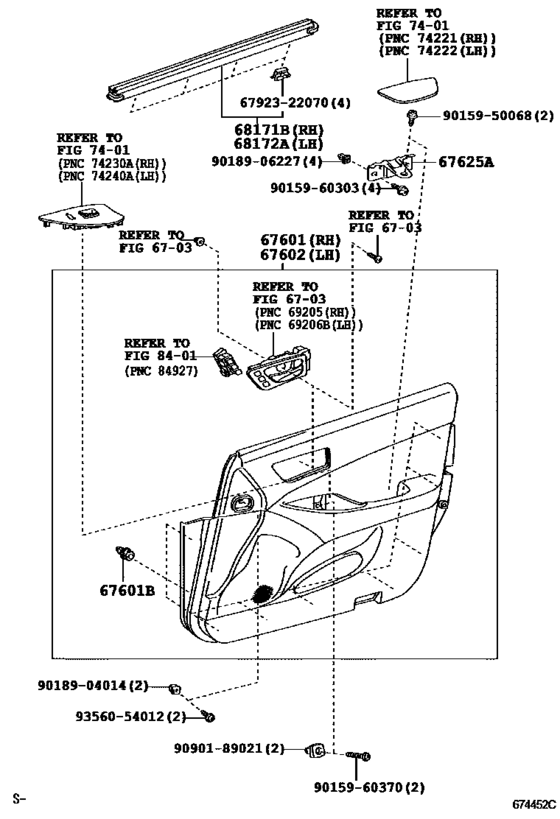

Front Door Panel & Glass ([05.2006 - ] DOOR TRIM (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-33C40-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,IVORY,TRIM0# |
67610-33C40-A1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33D80-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,IVORY,TRIM0# |
67610-33D80-A1 |
— | ||
|
67601
|
67601
67610-33C40-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
67610-33C40-B1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33D80-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,LT.GRAY,TRIM1# |
67610-33D80-B1 |
— | ||
|
67601
|
67601
67610-33C40-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,BLACK,TRIM2# |
67610-33C40-C1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33D80-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,BLACK,TRIM2# |
67610-33D80-C1 |
— | ||
|
67601
|
67601
67610-33C50-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,IVORY/IVORY,TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY, TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY |
67610-33C50-A1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33C60-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,IVORY/IVORY,TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY, TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY |
67610-33C60-A1 |
— | ||
|
67601
|
67601
67610-33C50-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.G RAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14S |
67610-33C50-B1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33C60-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.G RAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14S |
67610-33C60-B1 |
— | ||
|
67601
|
67601
67610-33C50-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,BLACK/BLACK,TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK, TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK |
67610-33C50-C1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-33C60-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,BLACK/BLACK,TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK, TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK |
67610-33C60-C1 |
— | ||
|
67601
|
67601
67610-33C60-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI IVORY,TRIM00,01; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
67610-33C60-A1 |
— | ||
|
67601
|
67601
67610-33C60-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI LT.GRAY,TRIM10,11; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
67610-33C60-B1 |
— | ||
|
67601
|
67601
67610-33C60-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] GSV40..CHI BLACK,TRIM20,21; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
67610-33C60-C1 |
— | ||
|
67601
|
67601
67610-33D80-A1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 IVORY,TRIM0# |
67610-33D80-A1 |
— | ||
|
67601
|
67601
67610-33D80-B1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 LT.GRAY,TRIM1# |
67610-33D80-B1 |
— | ||
|
67601
|
67601
67610-33D80-C1
Board Sub-Assy, Front Door Trim, Rh
[08.2009 - 08.2010] ACV40 BLACK,TRIM2# |
67610-33D80-C1 |
— | ||
|
67601
|
67601
67610-33F20-C0
Board Sub-Assy, Front Door Trim, Rh
[10.2011 - 01.2012] ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
67610-33F20-C0 |
— | ||
|
67601
|
67601
67610-33G00-A0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] ACV40 IVORY,TRIM0# |
67610-33G00-A0 |
— | ||
|
67601
|
67601
67610-33G00-B0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] ACV40 LT.GRAY,TRIM1# |
67610-33G00-B0 |
— | ||
|
67601
|
67601
67610-33G00-C0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] ACV40 BLACK,TRIM2# |
67610-33G00-C0 |
— | ||
|
67601
|
67601
67610-33G10-A0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] GSV40 IVORY/IVORY,TRIM00,01; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0 # |
67610-33G10-A0 |
— | ||
|
67601
|
67601
67610-33G10-B0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] GSV40 LT.GRAY/LT.GRAY,TRIM10,11; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM1#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,T RIM1# |
67610-33G10-B0 |
— | ||
|
67601
|
67601
67610-33G10-C0
Board Sub-Assy, Front Door Trim, Rh
[09.2011 - 06.2012] GSV40 BLACK/BLACK,TRIM20,21; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/BLACK,TRIM2 # |
67610-33G10-C0 |
— | ||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[08.2009 -] ACV40,GSV40 |
90467-09206 |
from US $0.89 |
||
|
67602
|
67602
67620-33C10-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,IVORY,TRIM0# |
67620-33C10-A1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33D50-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,IVORY,TRIM0# |
67620-33D50-A1 |
— | ||
|
67602
|
67602
67620-33C10-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,LT. GRAY,TRIM1# |
67620-33C10-B1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33D50-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,LT. GRAY,TRIM1# |
67620-33D50-B1 |
— | ||
|
67602
|
67602
67620-33C10-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,BLACK,TRIM2# |
67620-33C10-C1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33D50-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 TAIWAN SPEC,BLACK,TRIM2# |
67620-33D50-C1 |
— | ||
|
67602
|
67602
67620-33C20-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,IVORY/IVORY,TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY, TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY |
67620-33C20-A1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33C30-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,IVORY/IVORY,TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY, TRIM00,01; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY |
67620-33C30-A1 |
— | ||
|
67602
|
67602
67620-33C20-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.G RAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14S |
67620-33C20-B1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33C30-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,LT.GRAY/LT.GRAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.G RAY,TRIM10,11; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14S |
67620-33C30-B1 |
— | ||
|
67602
|
67602
67620-33C20-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,BLACK/BLACK,TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK, TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK |
67620-33C20-C1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-33C30-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI TAIWAN SPEC,BLACK/BLACK,TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK/BLACK, TRIM20,21; ACV40 TAIWAN SPEC&ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK |
67620-33C30-C1 |
— | ||
|
67602
|
67602
67620-33C30-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI IVORY,TRIM00,01; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0# |
67620-33C30-A1 |
— | ||
|
67602
|
67602
67620-33C30-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI LT.GRAY,TRIM10,11; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1# |
67620-33C30-B1 |
— | ||
|
67602
|
67602
67620-33C30-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] GSV40..CHI BLACK,TRIM20,21; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
67620-33C30-C1 |
— | ||
|
67602
|
67602
67620-33D50-A1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 IVORY,TRIM0# |
67620-33D50-A1 |
— | ||
|
67602
|
67602
67620-33D50-B1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 LT.GRAY,TRIM1# |
67620-33D50-B1 |
— | ||
|
67602
|
67602
67620-33D50-C1
Board Sub-Assy, Front Door Trim, Lh
[08.2009 - 08.2010] ACV40 BLACK,TRIM2# |
67620-33D50-C1 |
— | ||
|
67602
|
67602
67620-33F30-C0
Board Sub-Assy, Front Door Trim, Lh
[10.2011 - 01.2012] ACV40 SPECIAL EDITION,BLACK/SADDLE TAN,TRIM20,21 |
67620-33F30-C0 |
— | ||
|
67602
|
67602
67620-33F80-A0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] ACV40 IVORY,TRIM0# |
67620-33F80-A0 |
— | ||
|
67602
|
67602
67620-33F80-B0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] ACV40 LT.GRAY,TRIM1# |
67620-33F80-B0 |
— | ||
|
67602
|
67602
67620-33F80-C0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] ACV40 BLACK,TRIM2# |
67620-33F80-C0 |
— | ||
|
67602
|
67602
67620-33F90-A0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] GSV40 IVORY/IVORY,TRIM00,01; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY/IVORY,TRIM0#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/IVORY,TRIM0 # |
67620-33F90-A0 |
— | ||
|
67602
|
67602
67620-33F90-B0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] GSV40 LT.GRAY/LT.GRAY,TRIM10,11; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/LT.GRAY,TRIM1#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/LT.GRAY,T RIM1# |
67620-33F90-B0 |
— | ||
|
67602
|
67602
67620-33F90-C0
Board Sub-Assy, Front Door Trim, Lh
[09.2011 - 06.2012] GSV40 BLACK,TRIM20,21; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2#; ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2# |
67620-33F90-C0 |
— | ||
|
67625A
|
67625A
67645-33010
Bracket, Front Door Trim, No.1
[08.2009 -] ACV40,GSV40 |
67645-33010 |
— | ||
|
68171B
|
68171B
68171-33070 Weatherstrip, Front Door Glass, Inner RhFRONT DOOR GLASS, INNER RH [08.2009 -] ACV40,GSV40 |
68171-33070 |
US $57.97 |
||
|
68172A
|
68172A
68172-33080 Weatherstrip, Front Door Glass, Inner LhFRONT DOOR GLASS, INNER LH [08.2009 -] ACV40,GSV40 |
68172-33080 |
US $58.18 |
||
|
6792322070
|
6792322070
67923-22070 Clamp, Rear Door Trim |
67923-22070 |
US $2.77 |
||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.25 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960370
|
9015960370
90159-60370 SCREW WWASHER |
90159-60370 |
US $1.25 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.95 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.65 |
||
|
9090189021
|
9090189021
90901-89021 GROMMET SCREW |
90901-89021 |
from US $3.38 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.65 |
||
