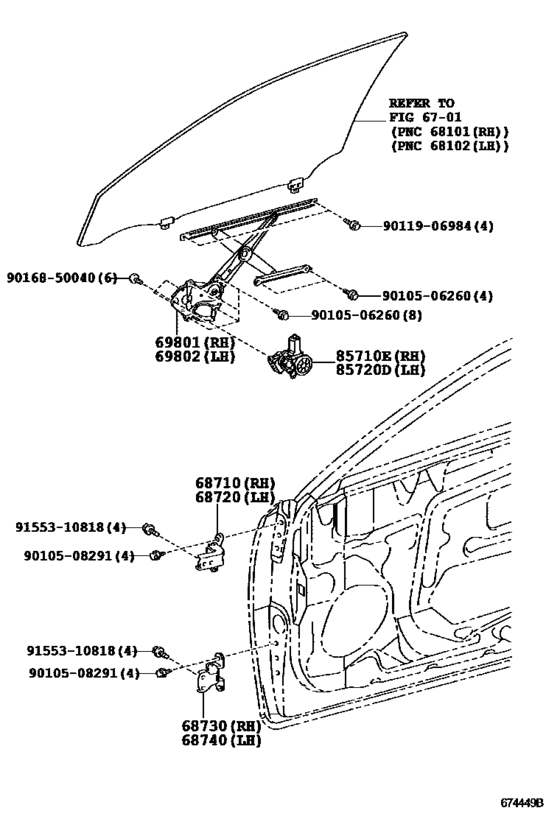

Front Door Window Regulator & Hinge ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[08.2009 -] ACV40,GSV40 |
68710-12151 |
from US $29.91 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[08.2009 -] ACV40,GSV40 |
68720-12151 |
from US $30.97 |
||
|
68730
|
68730
68730-33021 Hinge Assy, Front Door, Lower Rh[08.2009 -] ACV40,GSV40 |
68730-33021 |
from US $34.03 |
||
|
68740
|
68740
68740-33021 Hinge Assy, Front Door, Lower Lh[08.2009 -] ACV40,GSV40 |
68740-33021 |
from US $35 |
||
|
69801
|
69801
69801-33080
Regulator Sub-Assy, Front Door Window, Rh
[08.2009 -] ACV40,GSV40 |
69801-33080 |
— | ||
|
69802
|
69802
69802-33080
Regulator Sub-Assy, Front Door Window, Lh
[08.2009 -] ACV40,GSV40 |
69802-33080 |
— | ||
|
85710E
|
85710E
85710-33201
Motor Assy, Power Window Regulator, Rh
[08.2009 -] ACV40,GSV40 |
85710-33201 |
— | ||
|
85720D
|
85720D
85720-33211
Motor Assy, Power Window Regulator, Lh
[08.2009 -] ACV40,GSV40 |
85720-33211 |
— | ||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.65 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.80 |
||
|
9155310818
|
9155310818
91553-10818 BOLT FLANGE |
91553-10818 |
US $1.97 |
