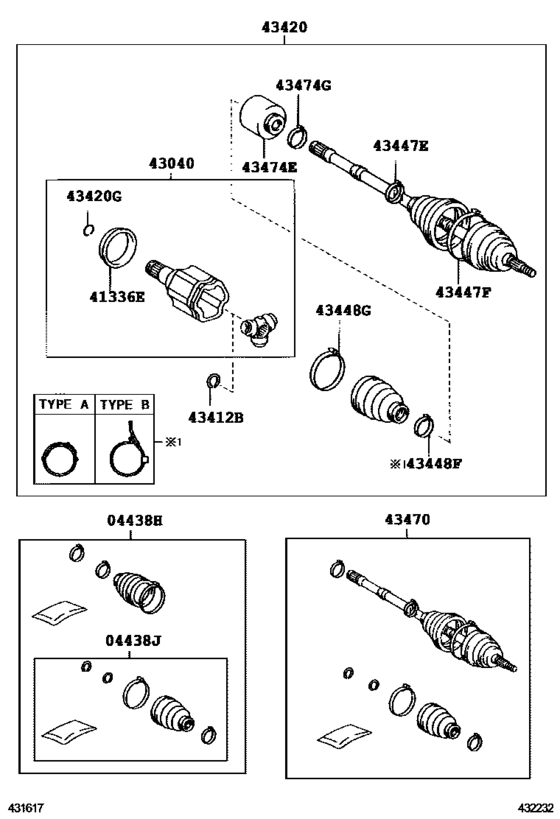

Front Drive Shaft ([08.2009 - ] LH (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-42110
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[08.2009 -] ACV40 |
04428-42110 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-42113 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2009 -] ACV40 |
04428-42113 |
from US $136.80 |
||
|
04438J
|
04438J
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[08.2009 -] ACV40 |
04438-42180 |
from US $64.09 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[08.2009 -] ACV40 |
41336-28020 |
from US $4.43 |
||
|
43040
|
43040
43040-28011 Joint Assy, Front Drive Inboard, Lh[08.2009 -] ACV40 |
43040-28011 |
from US $245.71 |
||
|
43412B
|
43412B
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[08.2009 -] ACV40 |
43425-28010 |
US $0.72 |
||
|
43420
|
43420
43420-33250 Shaft Assy, Front Drive, Lh[08.2009 -] ACV40 |
43420-33250 |
US $841.57 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2009 -] ACV40 |
90521-33002 |
from US $1.79 |
||
|
43447E
|
43447E
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [08.2009 -] ACV40 |
42345-42100 |
US $3.94 |
||
|
43447F
|
43447F
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [08.2009 -] ACV40 |
42345-42090 |
from US $5.26 |
||
|
43448F
|
43448F
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [08.2009 -] ACV40 TYPE A:REFER ILLUST. |
42345-42010 |
from US $1.63 |
||
|
43448F
|
43448F
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[08.2009 -] ACV40 TYPE B:REFER ILLUST. |
90949-01559 |
US $5.73 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [08.2009 -] ACV40 |
42345-12160 |
from US $4.31 |
||
|
43470
|
43470
43470-39545 Shaft Assy, Front Drive Outboard Joint, Rh[08.2009 -] ACV40 |
43470-39545 |
US $655.20 |
||
|
43474E
|
43474E
43474-33050 Damper, Front Drive Shaft, Lh[08.2009 -] ACV40 |
43474-33050 |
US $58.68 |
||
| replacement | |||||
|
43474E
|
43474E
43474-48100 Damper, Front Drive Shaft, Lh[08.2009 -] ACV40 |
43474-48100 |
US $58.68 |
||
|
43474G
|
43474G
42345-14010 Clamp, Rear Drive Shaft Boot[08.2009 -] ACV40 |
42345-14010 |
US $12.54 |
||
