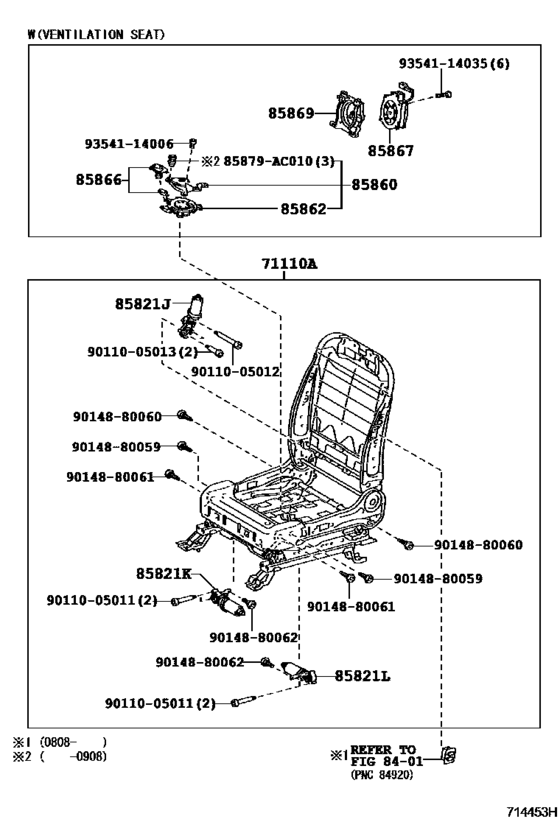

Front Seat & Seat Track ([05.2006 - ] RH SEAT (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71110A
|
71110A
71110-33150
Frame Assy, Front Seat W/adjuster, Rh
[08.2009 - 08.2010] ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
71110-33150 |
— | ||
|
71110A
|
71110A
71110-33430
Frame Assy, Front Seat W/adjuster, Rh
[08.2009 - 07.2010] ACV40 |
71110-33430 |
— | ||
|
85821J
|
85821J
85801-28090 Motor Assy, Power SeatPOWER SEAT RECLINING, RH [08.2009 - 07.2010] ACV40 |
85801-28090 |
US $202.38 |
||
|
85821J
|
85821J
85801-58020 Motor Assy, Power Seat[08.2009 - 08.2010] ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
85801-58020 |
US $243.15 |
||
|
85821K
|
85821K
85801-28120 Motor Assy, Power SeatPOWER SEAT TILT, RH [08.2009 - 07.2010] ACV40 |
85801-28120 |
US $202.38 |
||
|
85821K
|
85821K
85801-58040 Motor Assy, Power Seat[08.2009 - 08.2010] ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
85801-58040 |
US $284.79 |
||
|
85821L
|
85821L
85801-28110 Motor Assy, Power SeatPOWER SEAT LIFTER, RH [08.2009 - 07.2010] ACV40 |
85801-28110 |
US $202.38 |
||
|
85821L
|
85821L
85801-58030 Motor Assy, Power Seat[08.2009 - 08.2010] ACV40 ULTRA LUXURY PACKAGE&*DRP(MEMORY) |
85801-58030 |
US $243.15 |
||
|
85860
|
85860
85860-30020 Blower Assy, Seat Cushion Climate Control[08.2009 -] ACV40,GSV40 |
85860-30020 |
US $164.73 |
||
|
85862
|
85862
85862-30020
Blower, Seat Climate Control, Rh
[08.2009 -] ACV40,GSV40 |
85862-30020 |
— | ||
|
85866
|
85866
85866-30010
Duct, Seat Cushion Climate Control, Rh
[08.2009 -] ACV40,GSV40 |
85866-30010 |
— | ||
|
85867
|
85867
85867-33010
Blower, Seat Back Climate Control, Rh
[08.2009 -] ACV40,GSV40 |
85867-33010 |
— | ||
|
85869
|
85869
85869-30010
Cover, Seat Back Climate Control, Rh
[08.2009 -] ACV40,GSV40 |
85869-30010 |
— | ||
|
85879AC010
|
85879AC010
85879-AC010
Bush, Seat Cushion Climate Control
|
85879-AC010 |
— | ||
|
9011005011
|
9011005011
90110-05011 New Genuine Part |
90110-05011 |
US $1.16 |
||
|
9011005012
|
9011005012
90110-05012 New Genuine Part |
90110-05012 |
US $1.16 |
||
|
9011005013
|
9011005013
90110-05013 New Genuine Part |
90110-05013 |
US $0.87 |
||
|
9014880059
|
9014880059
90148-80059 New Genuine Part |
90148-80059 |
US $1.60 |
||
|
9014880060
|
9014880060
90148-80060 New Genuine Part |
90148-80060 |
US $1.60 |
||
|
9014880061
|
9014880061
90148-80061 New Genuine Part |
90148-80061 |
US $0.87 |
||
|
9014880062
|
9014880062
90148-80062 New Genuine Part |
90148-80062 |
US $2.91 |
||
|
9354114006
|
9354114006
93541-14006 New Genuine Part |
93541-14006 |
US $0.73 |
||
|
9354114035
|
9354114035
93541-14035 New Genuine Part |
93541-14035 |
US $0.73 |
