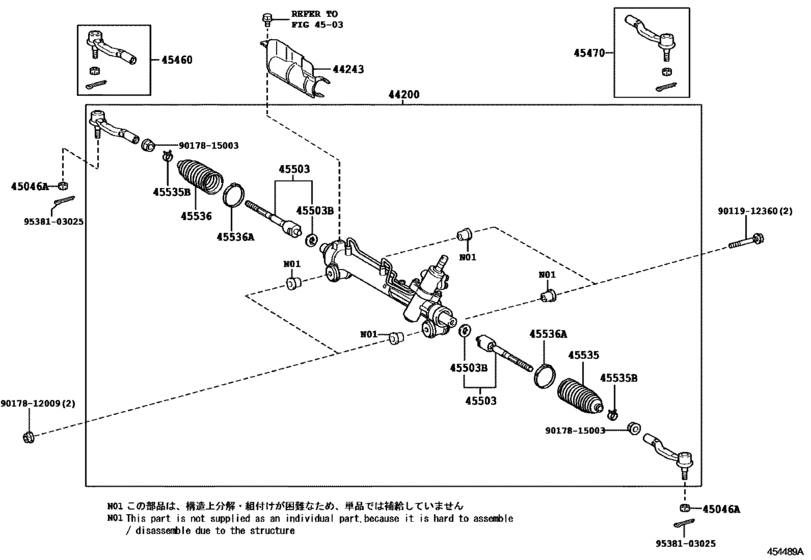

Front Steering Gear & Link ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-33530 Link Assy, Power SteeringPOWER STEERING [08.2009 -] ACV40,GSV40 |
44200-33530 |
US $1,733.03 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.2009 -] ACV40,GSV40 |
90171-12028 |
from US $1.33 |
||
|
45460
|
45460
45460-39635 Rod Assy, Tie, Rh[08.2009 -] ACV40,GSV40 |
45460-39635 |
from US $72.35 |
||
|
45470
|
45470
45470-39225 Rod Assy, Tie, Lh[08.2009 -] ACV40,GSV40 |
45470-39225 |
from US $72.60 |
||
|
45503
|
45503
45503-39275 End Sub-Assy, Steering Rack[08.2009 -] ACV40,GSV40 |
45503-39275 |
from US $111.36 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[08.2009 -] ACV40,GSV40 OD=35.2 |
90214-14009 |
from US $1.27 |
||
|
45535
|
45535
45535-33050 Boot, Steering Rack, No.1[08.2009 -] ACV40,GSV40 |
45535-33050 |
from US $15.05 |
||
|
45535B
|
45535B
90080-46153
Clip(For Steering Rack Boot)
[08.2009 -] ACV40,GSV40 |
90080-46153 |
— | ||
|
45536
|
45536
45535-33050 Boot, Steering Rack, No.1[08.2009 -] ACV40,GSV40 |
45535-33050 |
from US $15.05 |
||
|
45536A
|
45536A
90460-60009 Clamp(For Steering Rack Boot No.2)[08.2009 -] ACV40,GSV40 |
90460-60009 |
from US $5.64 |
||
|
9011912360
|
9011912360
90119-12360 BOLT WWASHER |
90119-12360 |
US $4.08 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
from US $1.03 |
||
|
9017815003
|
9017815003
90178-15003 Nut, Rack End Lock |
90178-15003 |
from US $1.10 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.76 |
