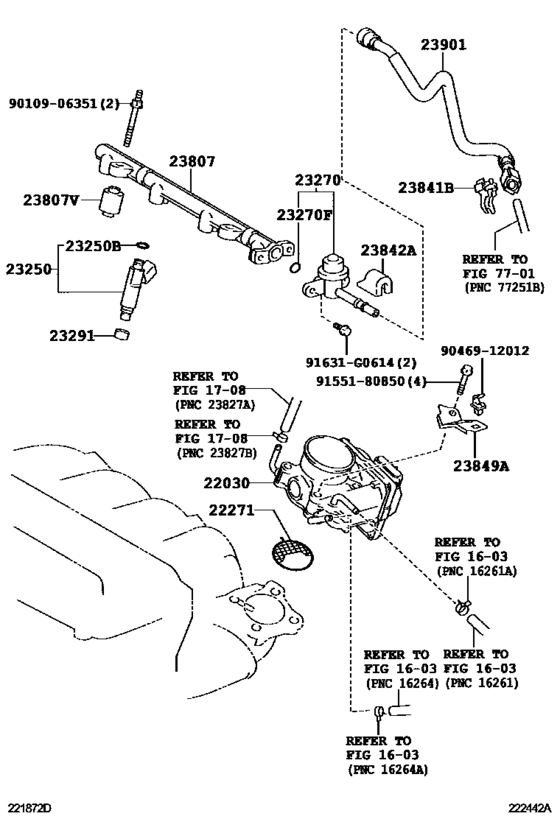

Fuel Injection System ([08.2009 - ] (0908- )2AZFE) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-28071 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [08.2009 -] 2AZFE..ACV40 |
22030-28071 |
from US $723.24 |
||
|
22271
|
22271
22271-75031 Gasket, Throttle Body[08.2009 -] 2AZFE..ACV40 |
22271-75031 |
from US $2.79 |
||
|
23250
|
23250
23209-28080 Injector Assy, Fuel[08.2009 -] 2AZFE..ACV40 |
23209-28080 |
from US $157.15 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[08.2009 -] 2AZFE..ACV40 |
90301-07037 |
from US $2.07 |
||
|
23270
|
23270
23270-28052 Damper Assy, Fuel Pressure Pulsation[08.2009 -] 2AZFE..ACV40 |
23270-28052 |
from US $98.95 |
||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[08.2009 -] 2AZFE..ACV40 |
90301-07037 |
from US $2.07 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.2009 - 06.2012] 2AZFE..ACV40 |
23291-41010 |
from US $2.62 |
||
|
23807
|
23807
23814-28031 Pipe Sub-Assy, Fuel Delivery[08.2009 -] 2AZFE..ACV40 |
23814-28031 |
US $70.91 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[08.2009 -] 2AZFE..ACV40 |
90561-08053 |
from US $1.40 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[08.2009 -] 2GRFE..GSV40; 2AZFE..ACV40 |
23841-21050 |
US $3.94 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[08.2009 -] 2AZFE..ACV40 |
23842-28010 |
from US $5.36 |
||
|
23849A
|
23849A
23849-28050 Support, Fuel Pipe[08.2009 -] 2AZFE..ACV40 |
23849-28050 |
US $2.91 |
||
|
23901
|
23901
23901-28320 Tube Sub-Assy, Fuel[08.2009 -] 2AZFE..ACV40 |
23901-28320 |
from US $49.59 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
9010906351
|
9010906351
90109-06351 New Genuine Part |
90109-06351 |
US $1.31 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $2.96 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
from US $1.05 |
