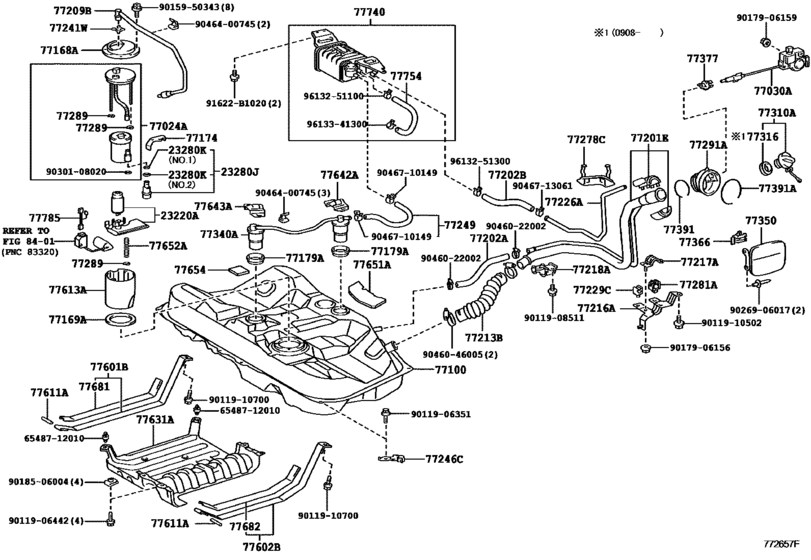

Fuel Tank & Tube ([08.2009 - ] FUEL TANK (0908- )ACV40) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23220A
|
23220A
23220-28320
Pump Assy, Fuel W/filter
[08.2009 - 03.2012] 2AZFE..ACV40 |
23220-28320 |
— | ||
|
23220A
|
23220A
23220-28321
Pump, Fuel
[04.2012 -] 2AZFE..ACV40 |
23220-28321 |
— | ||
| replacement | |||||
|
23220A
|
23220A
23220-28360 Pump, Fuel[04.2012 -] 2AZFE..ACV40 |
23220-28360 |
from US $426.61 |
||
|
23280J
|
23280J
23280-21010 Regulator Assy, Fuel Pressure[08.2009 -] 2AZFE..ACV40 |
23280-21010 |
from US $51.40 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[08.2009 -] 2AZFE..ACV40 NO.1 |
90301-04013 |
from US $2.13 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[08.2009 -] 2AZFE..ACV40 NO.2 |
90301-15024 |
from US $2.09 |
||
|
77024A
|
77024A
77024-33060 Plate Sub-Assy, Fuel Suction[08.2009 -] ACV40 |
77024-33060 |
from US $125.38 |
||
|
77030A
|
77030A
77030-33050 Lock Sub-Assy, Fuel Filler Opening Lid[08.2009 -] ACV40,GSV40 |
77030-33050 |
US $553.61 |
||
|
77100
|
77100
77001-33231
Tank Assy, Fuel
[08.2009 -] ACV40,GSV40 |
77001-33231 |
— | ||
|
77168A
|
77168A
77168-33050 Plate, Fuel Tank Vent Tube Set[08.2009 -] ACV40,GSV40 |
77168-33050 |
from US $18.91 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[08.2009 -] ACV40,GSV40 |
77169-33020 |
from US $7.88 |
||
|
77174
|
77174
77174-33020 Support, Fuel Suction, No.1[08.2009 -] ACV40 |
77174-33020 |
US $27.37 |
||
|
77179A
|
77179A
77179-33010 Gasket, Fuel Tank Evap/vent Tube[08.2009 -] ACV40,GSV40 |
77179-33010 |
from US $3.20 |
||
|
77201E
|
77201E
77201-33280 Pipe Sub-Assy, Fuel Tank Filler[08.2009 -] ACV40,GSV40 |
77201-33280 |
US $122.30 |
||
| replacements | |||||
|
77201E
|
77201E
77201-33282 Pipe Sub-Assy, Fuel Tank Filler[08.2009 -] ACV40,GSV40 |
77201-33282 |
from US $108.19 |
||
|
77201E
|
77201E
90105-08158 Plug(For Fuel Sub-Tank)[08.2009 -] ACV40,GSV40 |
90105-08158 |
from US $1.03 |
||
|
77201E
|
77201E
77300-12020 Cap Assy, Fuel Tank[08.2009 -] ACV40,GSV40 |
77300-12020 |
from US $26.98 |
||
|
77202A
|
77202A
95312-13024 Hose, Fuel, No.1 (For Breather Tube)[08.2009 -] ACV40,GSV40 L=240 |
95312-13024 |
US $4.54 |
||
|
77202B
|
77202B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.2009 -] ACV40,GSV40 *H,L=240 |
95333-08030 |
US $11.83 |
||
|
77209B
|
77209B
77209-33080
Tube Sub-Assy, Fuel Pump
[08.2009 -] ACV40,GSV40 |
77209-33080 |
— | ||
|
77213B
|
77213B
77213-33050
Hose, Fuel Tank To Filler Pipe
[08.2009 - 09.2011] ACV40,GSV40 L=240 |
77213-33050 |
— | ||
| replacement | |||||
|
77213B
|
77213B
77213-33120 Hose, Fuel Tank To Filler Pipe[08.2009 - 09.2011] ACV40,GSV40 L=240 |
77213-33120 |
from US $30.55 |
||
|
77213B
|
77213B
77213-33120 Hose, Fuel Tank To Filler Pipe[10.2011 -] ACV40,GSV40 L=240 |
77213-33120 |
from US $30.55 |
||
|
77216A
|
77216A
77216-33090 Support, Fuel Tank Filler Pipe, No.1[08.2009 -] ACV40,GSV40 |
77216-33090 |
US $21.50 |
||
|
77217A
|
77217A
77217-33020 Support, Fuel Tank Filler Pipe, No.2[08.2009 -] ACV40,GSV40 |
77217-33020 |
US $13.62 |
||
|
77218A
|
77218A
77218-33010 Support, Fuel Tank Filler Pipe, No.3[08.2009 -] ACV40,GSV40 |
77218-33010 |
US $11.83 |
||
|
77226A
|
77226A
77226-33040 Tube, Fuel Tank Breather, No.6[08.2009 -] ACV40,GSV40 |
77226-33040 |
from US $22.86 |
||
|
77229C
|
77229C
77229-33090 Clamp, Breather Tube[08.2009 -] ACV40,GSV40 |
77229-33090 |
US $3.58 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[08.2009 -] ACV40,GSV40 |
77241-33011 |
from US $0.84 |
||
|
77246C
|
77246C
77246-33020 Support, Fuel Main Tube[08.2009 -] ACV40,GSV40 |
77246-33020 |
US $5.53 |
||
|
77249
|
77249
77249-33090 Hose, Fuel Emission[08.2009 -] ACV40,GSV40 |
77249-33090 |
US $4.80 |
||
|
77278C
|
77278C
77278-33030 Protector, Fuel Tank Filler Pipe, No.2[08.2009 -] ACV40,GSV40 |
77278-33030 |
US $30.74 |
||
|
77281A
|
77281A
77281-48030 Clamp, Fuel Filler Pipe[08.2009 -] ACV40,GSV40 |
77281-48030 |
US $4.30 |
||
|
77289
|
77289
77289-52090 Holder, Fuel Tank Pipe Setting[08.2009 -] ACV40 |
77289-52090 |
US $8.42 |
||
|
77291A
|
77291A
77291-33080
Shield, Fuel Tank Filler Pipe
[08.2009 -] ACV40,GSV40 |
77291-33080 |
— | ||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[08.2009 -] ACV40,GSV40 |
77300-52030 |
from US $25.57 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2009 -] ACV40,GSV40 |
77316-52040 |
from US $4.12 |
||
|
77340A
|
77340A
77340-33020 Valve Assy, Fuel Cut Off W/tube[08.2009 -] ACV40,GSV40 |
77340-33020 |
from US $30.10 |
||
|
77350
|
77350
77350-33200 Lid Assy, Fuel Filler OpeningFUEL FILLER OPENING [08.2009 -] ACV40,GSV40 |
77350-33200 |
from US $45.28 |
||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[08.2009 -] ACV40,GSV40 |
77360-30070 |
from US $3.40 |
||
| replacement | |||||
|
77366
|
77366
77360-0R010 Spring Assy, Charging Port Opening Lid[08.2009 -] ACV40,GSV40 |
77360-0R010 |
US $8.45 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[08.2009 -] ACV40,GSV40 |
77377-12050 |
from US $3.90 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[08.2009 -] ACV40,GSV40 |
77391-12020 |
from US $1.92 |
||
|
77391A
|
77391A
77391-35020 Ring, Fuel Inlet Box[08.2009 -] ACV40,GSV40 |
77391-35020 |
US $3.20 |
||
|
77601B
|
77601B
77601-33040 Band Sub-Assy, Fuel Tank, No.1 Rh[08.2009 -] ACV40,GSV40 |
77601-33040 |
US $25.79 |
||
|
77602B
|
77602B
77602-33050 Band Sub-Assy, Fuel Tank, No.1 Lh[08.2009 -] ACV40,GSV40 |
77602-33050 |
US $26.91 |
||
|
77611A
|
77611A
90250-08019 Pin (For Fuel Tank Band)[08.2009 -] ACV40,GSV40 |
90250-08019 |
US $2.62 |
||
|
77613A
|
77613A
77613-33030 Case Sub-Assy, Fuel Tank, Lower[08.2009 -] ACV40 |
77613-33030 |
US $5.10 |
||
|
77631A
|
77631A
77631-33070
Protector, Fuel Tank, Lower Center
[08.2009 -] ACV40,GSV40 |
77631-33070 |
— | ||
|
77642A
|
77642A
77642-33040 Protector, Fuel Tank, No.2[08.2009 -] ACV40,GSV40 |
77642-33040 |
US $7.60 |
||
|
77643A
|
77643A
77643-33030 Protector, Fuel Tank, No.3[08.2009 -] ACV40,GSV40 |
77643-33030 |
US $9.26 |
||
|
77651A
|
77651A
77651-33020 Cushion, Fuel Tank, No.1[08.2009 -] ACV40,GSV40 |
77651-33020 |
US $13.83 |
||
|
77652A
|
77652A
77652-33040 Cushion, Fuel Tank, No.3[08.2009 -] ACV40 |
77652-33040 |
US $5.24 |
||
|
77654
|
77654
77652-33020 Cushion, Fuel Tank, No.2[08.2009 -] ACV40 |
77652-33020 |
US $5.24 |
||
|
77681
|
77681
77681-32060 Seat, Fuel Tank Band, Rh[08.2009 -] ACV40,GSV40 |
77681-32060 |
US $38.30 |
||
|
77682
|
77682
77681-32060 Seat, Fuel Tank Band, Rh[08.2009 -] ACV40,GSV40 |
77681-32060 |
US $38.30 |
||
|
77740
|
77740
77740-33160 Canister Assy, Charcoal[08.2009 - 06.2012] ACV40,GSV40 |
77740-33160 |
from US $153.75 |
||
|
77754
|
77754
77754-33030 Hose, Fuel(For Charcoal Canister)[08.2009 -] ACV40,GSV40 |
77754-33030 |
US $7.43 |
||
|
77785
|
77785
77785-33040 Harness, Fuel Pump[08.2009 -] ACV40 |
77785-33040 |
US $6.55 |
||
| replacement | |||||
|
77785
|
77785
77785-33041 Harness, Fuel Pump[08.2009 -] ACV40 |
77785-33041 |
from US $10.57 |
||
|
91622B1020
|
91622B1020
91622-B1020 Bolt(For Transaxle & Engine Setting) |
91622-B1020 |
US $2.15 |
||
|
6548712010
|
6548712010
65487-12010 Clip, Corner Protector |
65487-12010 |
US $4.95 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.96 |
||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.89 |
||
|
9011908511
|
9011908511
90119-08511 BOLT |
90119-08511 |
US $6.09 |
||
|
9011910502
|
9011910502
90119-10502 BOLT WWASHER |
90119-10502 |
US $2.69 |
||
|
9011910700
|
9011910700
90119-10700 New Genuine Part |
90119-10700 |
US $2.34 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.63 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018506004
|
9018506004
90185-06004
New Genuine Part
|
90185-06004 |
— | ||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9030108020
|
9030108020
90301-08020 Ring, O(For Fuel Pump) |
90301-08020 |
from US $2.57 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9046400745
|
9046400745
90464-00745 Clamp, Fuel Tube, No.4 |
90464-00745 |
US $3.58 |
||
|
9046710149
|
9046710149
90467-10149 Clip, No.2(For Idle-Up Hose) |
90467-10149 |
from US $2.36 |
||
|
9046713061
|
9046713061
90467-13061 Crip (For Fuel Tank Filler Pipe) |
90467-13061 |
US $1.25 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9613341300
|
9613341300
96133-41300 Clip(For Air Hose No.6) |
96133-41300 |
US $1.61 |
||
