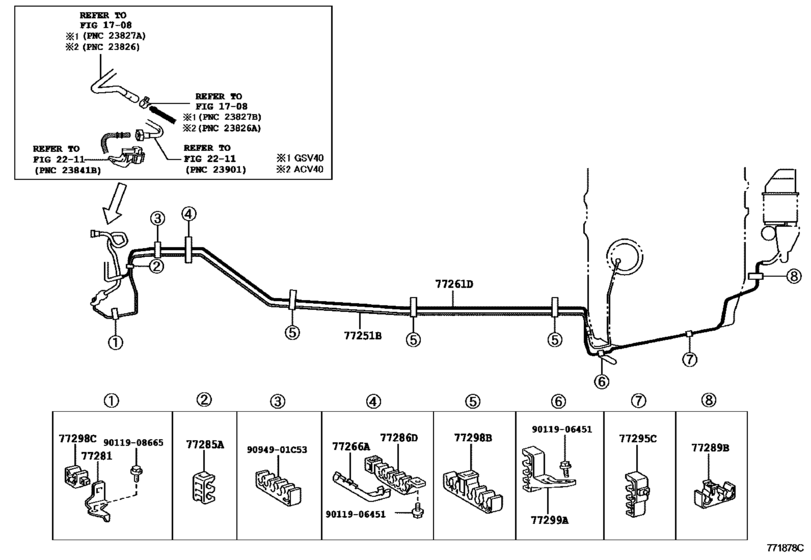

Fuel Tank & Tube ([05.2006 - ] FUEL TUBE (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-33150 Tube, Fuel Main, No.2 (For Front Fuel Main)[08.2009 -] ACV40,GSV40 |
77251-33150 |
US $78.62 |
||
|
77261D
|
77261D
77261-33140 Tube, Fuel Tank To Canister, No.3[08.2009 -] ACV40,GSV40 |
77261-33140 |
US $77.17 |
||
|
77266A
|
77266A
77266-33041
Protector, Fuel Tube, No.1
[08.2009 -] ACV40,GSV40 |
77266-33041 |
— | ||
|
77281
|
77281
77281-33030 Bracket, Fuel Main Tube, No.1[08.2009 -] ACV40,GSV40 |
77281-33030 |
from US $2.09 |
||
|
77285A
|
77285A
77285-42110 Support, Fuel Return And Main Tube[08.2009 -] ACV40,GSV40 |
77285-42110 |
US $4.48 |
||
|
77286D
|
77286D
77286-33040 Clamp, Fuel Tube, No.2[08.2009 -] ACV40,GSV40 |
77286-33040 |
US $9.76 |
||
|
77289B
|
77289B
77289-33050 Clamp, Fuel Tube, No.3[08.2009 -] ACV40,GSV40 |
77289-33050 |
US $6.26 |
||
|
77295C
|
77295C
77295-33020 Grommet, Fuel Tube[08.2009 -] ACV40,GSV40 |
77295-33020 |
US $11.29 |
||
|
77298B
|
77298B
77298-20110 Clamp, Fuel Tube, No.1[08.2009 -] ACV40,GSV40 |
77298-20110 |
from US $5.95 |
||
|
77298C
|
77298C
77298-30170 Clamp, Fuel Tube, No.3[08.2009 -] ACV40,GSV40 |
77298-30170 |
US $4.84 |
||
|
77299A
|
77299A
77299-33040 Clamp, Fuel Tube, No.1[08.2009 -] ACV40,GSV40 |
77299-33040 |
US $8.88 |
||
|
9094901C53
|
9094901C53
90949-01C53 Clamp, Brake Tube, No.9 |
90949-01C53 |
US $5.68 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
from US $0.76 |
||
|
9011908665
|
9011908665
90119-08665 BOLT |
90119-08665 |
US $1.61 |
