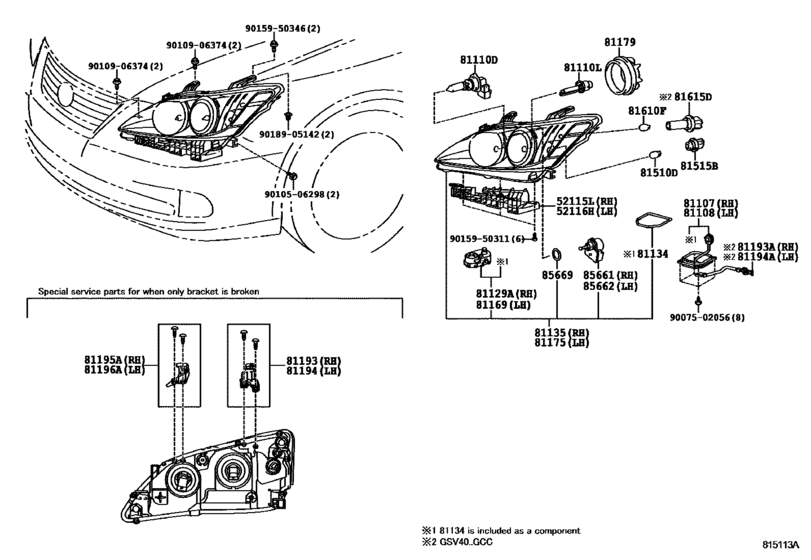

Headlamp ([08.2009 - ] (0908- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115L
|
52115L
52115-33100 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [08.2009 -] ACV40,GSV40 |
52115-33100 |
US $96.79 |
||
|
52116H
|
52116H
52116-33090 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [08.2009 -] ACV40,GSV40 |
52116-33090 |
US $92.74 |
||
|
81107
|
81107
81107-22A10
Computer Sub-Assy, Headlamp Light Control
[08.2009 - 04.2010] ACV40,GSV40 |
81107-22A10 |
— | ||
| replacement | |||||
|
81107
|
81107
81107-33761 Computer Sub-Assy, Headlamp Light Control[08.2009 - 04.2010] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81107
|
81107
81107-33761 Computer Sub-Assy, Headlamp Light Control[04.2010 -] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81108
|
81108
81107-22A10
Computer Sub-Assy, Headlamp Light Control
[08.2009 - 04.2010] ACV40,GSV40 |
81107-22A10 |
— | ||
| replacement | |||||
|
81108
|
81108
81107-33761 Computer Sub-Assy, Headlamp Light Control[08.2009 - 04.2010] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81108
|
81108
81107-33761 Computer Sub-Assy, Headlamp Light Control[04.2010 -] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.2009 -] ACV40,GSV40 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[08.2009 -] ACV40,GSV40 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81129A
|
81129A
81129-50381 Reflector, Headlamp, RhHEADLAMP SWIVEL, RH [08.2009 -] ACV40,GSV40 |
81129-50381 |
US $168.90 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[08.2009 -] ACV40,GSV40 |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81145-33760
Unit Assy, Headlamp, Rh
[08.2009 - 09.2011] ACV40,GSV40..CHI |
81145-33760 |
— | ||
|
81135
|
81135
81145-33761
Unit Assy, Headlamp, Rh
[09.2011 -] ACV40,GSV40..CHI |
81145-33761 |
— | ||
|
81169
|
81169
81169-50381 Reflector, Headlamp, LhHEADLAMP SWIVEL, LH [08.2009 -] ACV40,GSV40 |
81169-50381 |
US $168.90 |
||
|
81175
|
81175
81185-33760
Unit Assy, Headlamp, Lh
[08.2009 - 09.2011] ACV40,GSV40..CHI |
81185-33760 |
— | ||
|
81175
|
81175
81185-33761
Unit Assy, Headlamp, Lh
[09.2011 -] ACV40,GSV40..CHI |
81185-33761 |
— | ||
|
81179
|
81179
81179-22820 Cover, Headlamp Socket[08.2009 -] ACV40,GSV40 |
81179-22820 |
from US $12.06 |
||
|
81193
|
81193
81193-33070
Retainer, Headlamp Protector, Upper Rh
[08.2009 -] ACV40,GSV40 |
81193-33070 |
— | ||
|
81194
|
81194
81194-33070
Retainer, Headlamp Protector, Upper Lh
[08.2009 -] ACV40,GSV40 |
81194-33070 |
— | ||
|
81195A
|
81195A
81195-33040
Retainer, Headlamp Protector, Lower Rh
[08.2009 -] ACV40,GSV40 |
81195-33040 |
— | ||
|
81196A
|
81196A
81196-33040
Retainer, Headlamp Protector, Lower Lh
[08.2009 -] ACV40,GSV40 |
81196-33040 |
— | ||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[08.2009 -] ACV40,GSV40 12V 21W,AMBER |
90981-15021 |
from US $3.14 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[08.2009 -] ACV40,GSV40 |
90075-60028 |
from US $6.19 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2009 - 09.2011] ACV40,GSV40..CHI 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2009 - 09.2011] ACV40,GSV40..CHI 12V 5W |
90080-81053 |
US $0.99 |
||
|
85661
|
85661
85661-28011 Motor, Headlamp Leveling, RhHEADLAMP LEVELING, RH [08.2009 -] ACV40,GSV40 |
85661-28011 |
from US $141.23 |
||
|
85662
|
85662
85691-28011 Motor, Headlamp Leveling, LhHEADLAMP LEVELING, LH [08.2009 -] ACV40,GSV40 |
85691-28011 |
from US $164.24 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[08.2009 -] ACV40,GSV40 |
90075-99120 |
from US $2.32 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.67 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
