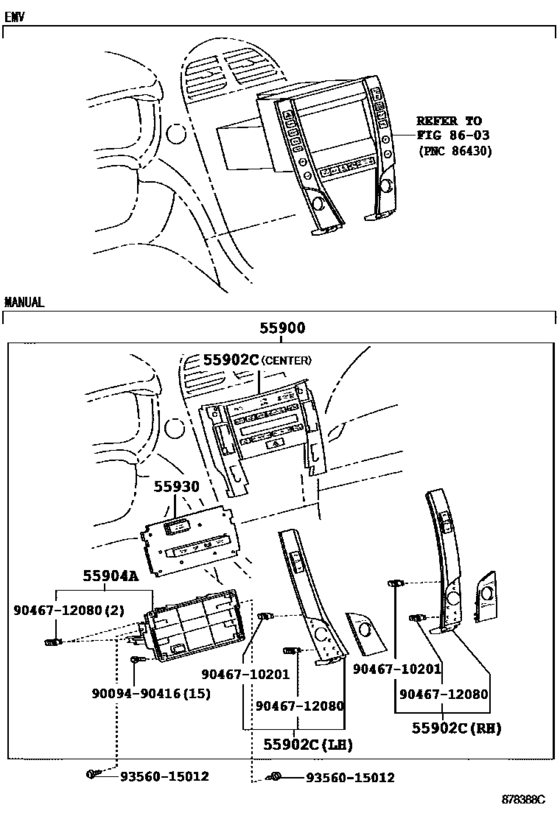

Heating & Air Conditioning - Control & Air Duct ([05.2006 - ] CONTROL (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900
|
55900
55900-33C22-E0
Control Assy, Air Conditioner
[08.2009 - 09.2011] ACV40;GSV40..GCC MD.BROWN,TRIM00,10,20; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
55900-33C22-E0 |
— | ||
|
55900
|
55900
55900-33C22-E1
Control Assy, Air Conditioner
[08.2009 - 09.2011] ACV40;GSV40..GCC DK.BROWN,TRIM01,11,21; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
55900-33C22-E1 |
— | ||
|
55900
|
55900
55900-33E70-E0
Control Assy, Air Conditioner
[09.2011 - 06.2012] ACV40;GSV40..GCC MD.BROWN,TRIM00,10,20; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP,MD.BROWN,TRIM00,10,20; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR |
55900-33E70-E0 |
— | ||
|
55900
|
55900
55900-33E70-E1
Control Assy, Air Conditioner
[09.2011 - 06.2012] ACV40;GSV40..GCC DK.BROWN,TRIM01,11,21; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP,DK.BROWN,TRIM01,11,21; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR |
55900-33E70-E1 |
— | ||
|
55902C
|
55902C
55902-33492
Panel Sub-Assy, Air Conditioner
[08.2009 -] ACV40;GSV40..GCC CENTER; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,CENTER; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,CENTER |
55902-33492 |
— | ||
|
55902C
|
55902C
55902-33550
Panel Sub-Assy, Air Conditioner
[08.2009 - 09.2011] ACV40;GSV40..GCC LH |
55902-33550 |
— | ||
|
55902C
|
55902C
55902-33810
Panel Sub-Assy, Air Conditioner
[08.2009 - 09.2011] ACV40;GSV40..GCC RH |
55902-33810 |
— | ||
|
55902C
|
55902C
55902-33A90
Panel Sub-Assy, Air Conditioner
[09.2011 -] ACV40;GSV40..GCC LH; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP,LH; GSV40..CHI RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP,LH |
55902-33A90 |
— | ||
|
55902C
|
55902C
55902-33B00
Panel Sub-Assy, Air Conditioner
[09.2011 -] ACV40;GSV40..GCC RH; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP,RH; GSV40..CHI RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP,RH |
55902-33B00 |
— | ||
|
55904A
|
55904A
55904-33260
Housing Sub-Assy, Heater Control
[08.2009 -] ACV40;GSV40..GCC; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
55904-33260 |
— | ||
|
55930
|
55930
55930-33020
Control Assy, Center Cluster Module
[08.2009 -] ACV40;GSV40..GCC; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
55930-33020 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— | ||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.74 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.25 |
