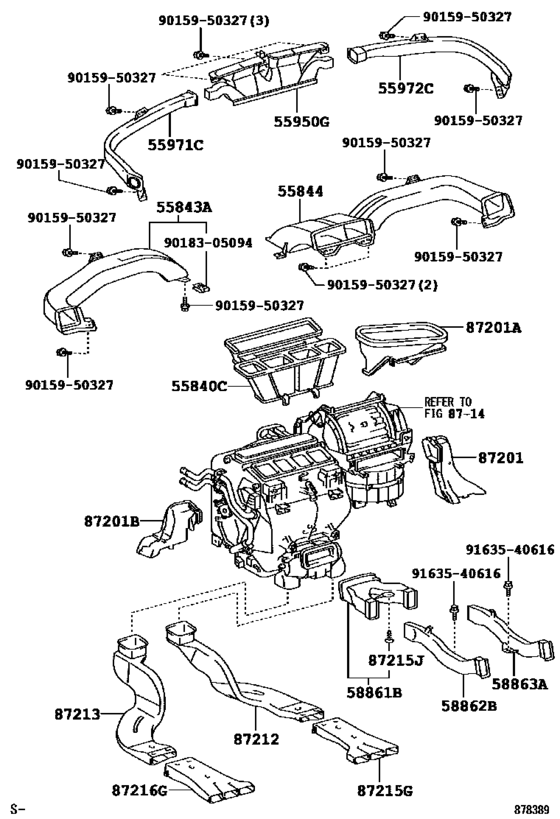

Heating & Air Conditioning - Control & Air Duct ([05.2006 - ] DUCT (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55840C
|
55840C
55840-33030 Duct Assy, Heater To Register, No.6HEATER TO REGISTER, NO.6 [08.2009 -] ACV40,GSV40 |
55840-33030 |
US $148.11 |
||
|
55843A
|
55843A
55843-33150
Duct, Heater To Register, No.1
[08.2009 -] ACV40,GSV40 |
55843-33150 |
— | ||
|
55844
|
55844
55844-33150
Duct, Heater To Register, No.2
[08.2009 -] ACV40,GSV40 |
55844-33150 |
— | ||
|
55950G
|
55950G
55950-33100 Nozzle Assy, DefrosterDEFROSTER [08.2009 -] ACV40,GSV40 |
55950-33100 |
US $84.25 |
||
|
55971C
|
55971C
55971-33110
Duct, Side Defroster Nozzle, No.1
[08.2009 -] ACV40,GSV40 |
55971-33110 |
— | ||
|
55972C
|
55972C
55972-33110
Duct, Side Defroster Nozzle, No.2
[08.2009 -] ACV40,GSV40 |
55972-33110 |
— | ||
|
58861B
|
58861B
58861-33040
Duct, Console Box, No.1
[08.2009 -] ACV40,GSV40 |
58861-33040 |
— | ||
|
58862B
|
58862B
58862-33050
Duct, Console Box, No.2
[08.2009 -] ACV40,GSV40 |
58862-33050 |
— | ||
|
58863A
|
58863A
58863-33030
Duct, Console Box, No.3
[08.2009 -] ACV40,GSV40 |
58863-33030 |
— | ||
|
87201
|
87201
87201-33290
Duct Sub-Assy, Air, No.1
[08.2009 -] ACV40,GSV40 |
87201-33290 |
— | ||
|
87201A
|
87201A
87201-33340
Duct Sub-Assy, Air
[08.2009 -] ACV40,GSV40 |
87201-33340 |
— | ||
|
87201B
|
87201B
87201-33280
Duct Sub-Assy, Air, No.2
[08.2009 -] ACV40,GSV40 |
87201-33280 |
— | ||
|
87212
|
87212
87212-33040 Duct, Air, Rear No.1[08.2009 -] ACV40,GSV40 |
87212-33040 |
US $46.74 |
||
|
87213
|
87213
87213-33050 Duct, Air, Rear No.3[08.2009 -] ACV40,GSV40 |
87213-33050 |
US $46.74 |
||
|
87215G
|
87215G
87215-33010 Duct, Air, Rear No.2[08.2009 -] ACV40,GSV40 |
87215-33010 |
US $26.79 |
||
|
87215J
|
87215J
90467-05161-C0 Clip[08.2009 - 06.2012] ACV40,GSV40 BLACK |
90467-05161-C0 |
from US $0.86 |
||
|
87216G
|
87216G
87216-33010 Duct, Air, Rear No.4[08.2009 -] ACV40,GSV40 |
87216-33010 |
US $27.08 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
