Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
88460	88460 88460-33100 Condenser Assy, Cooler [08.2009 - 06.2012] ACV40,GSV40	88460-33100	from US $643.55
88474	88474 88474-17010 Dryer, Cooler [08.2009 -] ACV40,GSV40	88474-17010	from US $60.10
88707	88707 88707-33010 Pipe Sub-Assy, Suction [08.2009 - 05.2011] ACV40,GSV40	88707-33010	—
88707	88707 88707-33100 Pipe Sub-Assy, Suction [06.2011 -] ACV40,GSV40	88707-33100	—
88710	88710 88710-33320 Tube Assy, Air Conditioner [08.2009 -] ACV40,GSV40	88710-33320	—
88711	88711 88711-33210 Hose, Cooler Refrigerant Discharge, No.1 [08.2009 -] ACV40	88711-33210	US $148.51
88712	88712 88712-33260 Hose, Cooler Refrigerant Suction, No.1 [08.2009 -] ACV40	88712-33260	US $203.84
88715A	88715A 88715-33020 Pipe, Cooler Refrigerant Discharge, A [08.2009 -] ACV40,GSV40	88715-33020	US $63.34
88719A	88719A 88719-33020 Sensor, Airconditioner Pressure [08.2009 -] ACV40,GSV40	88719-33020	from US $124.05
91551A0625	91551A0625 91551-A0625 Bolt(For Cylinder Head Cover)	91551-A0625	US $1.08
91631B0618	91631B0618 91631-B0618 BOLT WWASHER	91631-B0618	from US $0.65
91631J0612	91631J0612 91631-J0612 BRACKET	91631-J0612	from US $0.70
8868833430	8868833430 88688-33430 Bracket, Cooler Diaphragm	88688-33430	—
8871833390	8871833390 88718-33390 Pipe, Cooler Refrigerant Suction, No.2	88718-33390	—
8871833400	8871833400 88718-33400 Pipe, Cooler Refrigerant Suction, No.2	88718-33400	—
9011906817	9011906817 90119-06817 BOLT WWASHER	90119-06817	from US $0.84
9415180641	9415180641 94151-80641 NUT FLANGE	94151-80641	from US $0.95

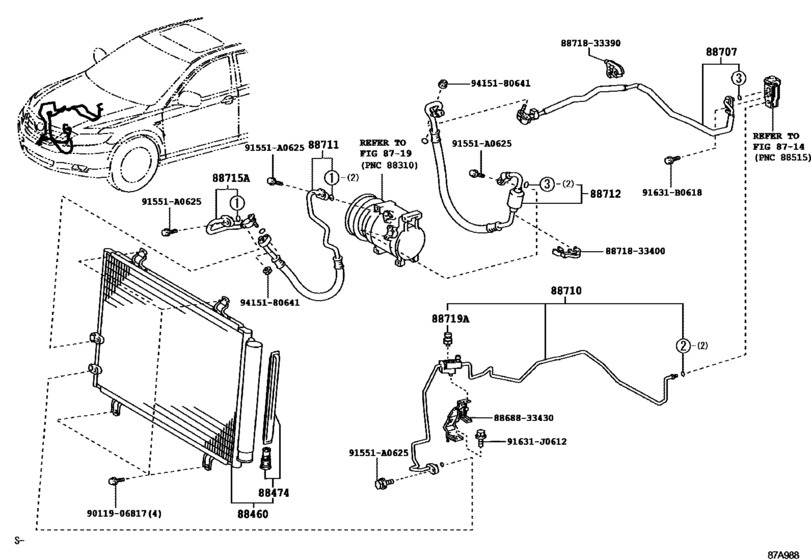

Heating & Air Conditioning - Cooler Piping ([08.2009 - ] (0908- )ACV40) Diagram Toyota LEXUS ES General 18034838-937208
