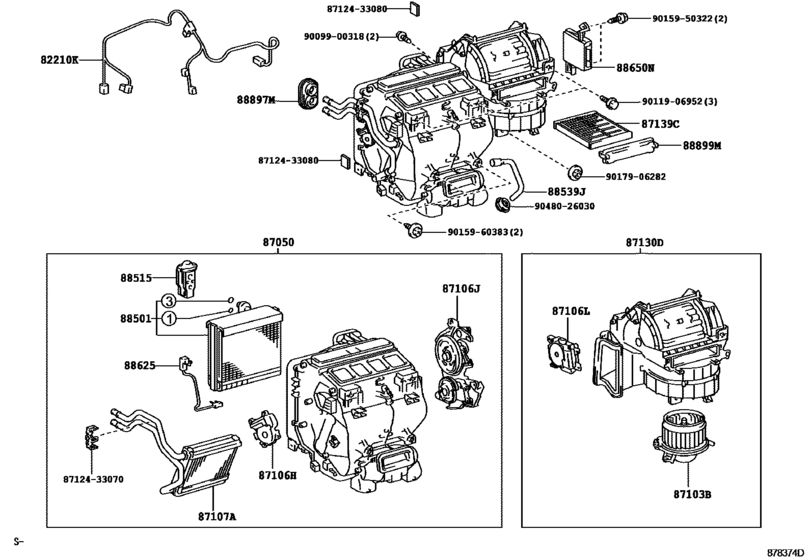

Heating & Air Conditioning - Cooler Unit ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-33021
Harness Assy, Air Conditioner
[08.2009 - 06.2012] ACV40,GSV40 |
82212-33021 |
— | ||
| replacement | |||||
|
82210K
|
82210K
82212-33022
Harness Assy, Air Conditioner
[08.2009 - 06.2012] ACV40,GSV40 |
82212-33022 |
— | ||
|
87050
|
87050
87050-33543
Radiator Assy, Air Conditioner
[08.2009 -] ACV40,GSV40 |
87050-33543 |
— | ||
|
87103B
|
87103B
87103-33120
Motor Sub-Assy, Blower W/fan
[08.2009 - 06.2012] ACV40,GSV40 |
87103-33120 |
— | ||
|
87106H
|
87106H
87106-33260 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[08.2009 -] ACV40,GSV40 |
87106-33260 |
US $109.78 |
||
|
87106J
|
87106J
87106-33290
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
[08.2009 -] ACV40,GSV40 |
87106-33290 |
— | ||
|
87106L
|
87106L
87106-33270 Servo Sub-Assy, DamperDAMPER(FOR RECIRCULATION) [08.2009 -] ACV40,GSV40 |
87106-33270 |
US $108.28 |
||
|
87107A
|
87107A
87107-33120 Unit Sub-Assy, Heater Radiator[08.2009 -] ACV40,GSV40 |
87107-33120 |
US $385.21 |
||
|
87130D
|
87130D
87130-48220
Blower Assy
[08.2009 -] ACV40,GSV40 |
87130-48220 |
— | ||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[08.2009 - 06.2012] ACV40,GSV40 |
87139-30040 |
from US $33.60 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[08.2009 - 06.2012] ACV40,GSV40 |
87139-YZZ45 |
US $118.47 |
||
|
88501
|
88501
88501-48310
Evaporator Sub-Assy, Cooler, No.1
[08.2009 - 07.2010] ACV40,GSV40 |
88501-48310 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[08.2009 - 07.2010] ACV40,GSV40 |
88501-48311 |
from US $354.68 |
||
|
88501
|
88501
88501-48311 Evaporator Sub-Assy, Cooler, No.1[08.2010 - 05.2012] ACV40,GSV40 |
88501-48311 |
from US $354.68 |
||
|
88515
|
88515
88515-33020 Valve, Cooler Expansion[08.2009 -] ACV40,GSV40 |
88515-33020 |
from US $100.95 |
||
|
88539J
|
88539J
88539-33090
Hose, Drain Cooler
[08.2009 -] ACV40,GSV40 |
88539-33090 |
— | ||
|
88625
|
88625
88625-33190 Thermistor, Cooler, No.1[08.2009 -] ACV40,GSV40 |
88625-33190 |
US $10.09 |
||
|
88650N
|
88650N
88650-33A30
Amplifier Assy, Air Conditioner
[08.2009 - 10.2010] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
88650-33A30 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-33A31
Amplifier Assy, Air Conditioner
[08.2009 - 10.2010] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
88650-33A31 |
— | ||
|
88650N
|
88650N
88650-33A31
Amplifier Assy, Air Conditioner
[11.2010 -] GSV40..CHI; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
88650-33A31 |
— | ||
|
88650N
|
88650N
88650-33A50
Amplifier Assy, Air Conditioner
[08.2009 - 10.2010] ACV40;GSV40..GCC |
88650-33A50 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-33A51
Amplifier Assy, Air Conditioner
[08.2009 - 10.2010] ACV40;GSV40..GCC |
88650-33A51 |
— | ||
|
88650N
|
88650N
88650-33A51
Amplifier Assy, Air Conditioner
[11.2010 -] ACV40;GSV40..GCC; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP |
88650-33A51 |
— | ||
|
88897M
|
88897M
90480-01696
Grommet, Heater
[08.2009 -] ACV40,GSV40 |
90480-01696 |
— | ||
|
88899M
|
88899M
88899-33040 Plate, Cover(For Air Filter)[08.2009 -] ACV40,GSV40 |
88899-33040 |
from US $1.22 |
||
|
8712433070
|
8712433070
87124-33070 Clamp, Heater |
87124-33070 |
from US $1.12 |
||
|
8712433080
|
8712433080
87124-33080
Clamp, Heater
|
87124-33080 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.87 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048026030
|
9048026030
90480-26030 Grommet (For Cooler Unit Drain Hose) |
90480-26030 |
US $2.07 |
||
