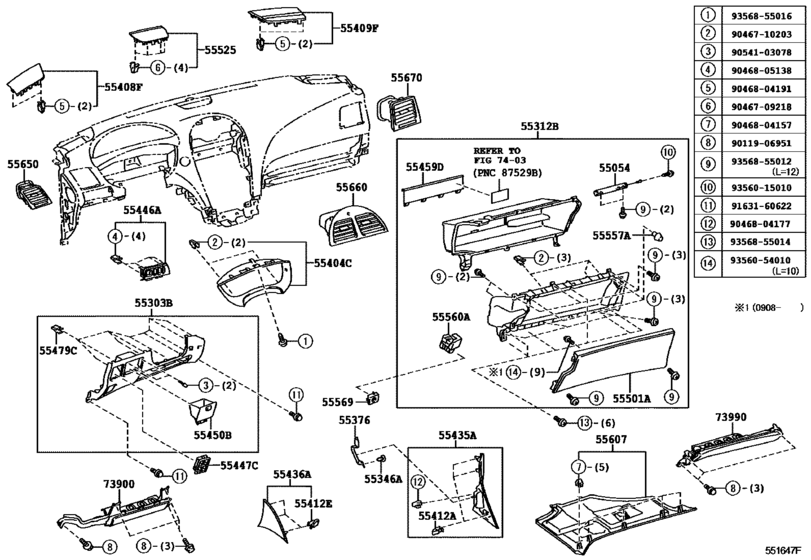

Instrument Panel & Glove Compartment ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-33071
Stopper Sub-Assy, Glove Compartment Door
[08.2009 -] ACV40,GSV40 |
55054-33071 |
— | ||
|
55303B
|
55303B
55302-33180-A1
Panel Sub-Assy, Instrument, Lower
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55302-33180-A1 |
— | ||
| replacement | |||||
|
55303B
|
55303B
55302-33181-A1 Panel Sub-Assy, Instrument, Lower[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55302-33181-A1 |
US $201.12 |
||
|
55303B
|
55303B
55302-33180-C0
Panel Sub-Assy, Instrument, Lower
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55302-33180-C0 |
— | ||
| replacement | |||||
|
55303B
|
55303B
55302-33181-C0
Panel Sub-Assy, Instrument, Lower
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55302-33181-C0 |
— | ||
|
55312B
|
55312B
55303-33191-A0
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 IVORY & MD.BROWN,TRIM00 |
55303-33191-A0 |
— | ||
|
55312B
|
55312B
55303-33191-A1
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 IVORY & DK.BROWN,TRIM01 |
55303-33191-A1 |
— | ||
| replacement | |||||
|
55312B
|
55312B
55303-33192-A1
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 IVORY & DK.BROWN,TRIM01 |
55303-33192-A1 |
— | ||
|
55312B
|
55312B
55303-33191-C0
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK & MD.BROWN,TRIM10,20 |
55303-33191-C0 |
— | ||
| replacement | |||||
|
55312B
|
55312B
55303-33192-C0
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK & MD.BROWN,TRIM10,20 |
55303-33192-C0 |
— | ||
|
55312B
|
55312B
55303-33191-C1
Panel, Instrument, Lower Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK & DK.BROWN,TRIM11,21 |
55303-33191-C1 |
— | ||
|
55346A
|
55346A
90467-06017-C0 Clip, Rear Floor Mat Set (BLACK)[08.2009 - 06.2012] ACV40,GSV40 BLACK |
90467-06017-C0 |
from US $1.24 |
||
|
55376
|
55376
55376-33090
Bracket, Instrument Panel Mounting, No.1
[08.2009 -] ACV40,GSV40 |
55376-33090 |
— | ||
|
55404C
|
55404C
55404-33141-C0
Panel Sub-Assy, Instrument Cluster Finish, No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55404-33141-C0 |
— | ||
|
55404C
|
55404C
55404-33141-E0 Panel Sub-Assy, Instrument Cluster Finish, No.2[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55404-33141-E0 |
US $85.90 |
||
|
55408F
|
55408F
55408-33040-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [08.2009 - 06.2012] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2# |
55408-33040-C0 |
US $51.97 |
||
|
55408F
|
55408F
55408-33040-E0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [08.2009 - 06.2012] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,ORCHID BROWN,TRIM0# |
55408-33040-E0 |
US $51.97 |
||
|
55408F
|
55408F
55408-33050-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55408-33050-C0 |
US $58.09 |
||
|
55408F
|
55408F
55408-33050-E0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55408-33050-E0 |
US $58.09 |
||
| replacement | |||||
|
55408F
|
55408F
55408-33040-E0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55408-33040-E0 |
US $51.97 |
||
|
55409F
|
55409F
55409-33040-C0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.2009 - 06.2012] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM1#,2# |
55409-33040-C0 |
— | ||
|
55409F
|
55409F
55409-33040-E0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.2009 - 06.2012] ACV40,GSV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,ORCHID BROWN,TRIM0# |
55409-33040-E0 |
— | ||
|
55409F
|
55409F
55409-33050-C0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55409-33050-C0 |
— | ||
|
55409F
|
55409F
55409-33050-E0 Panel Sub-Assy, Instrument Panel Speaker, No.2INSTRUMENT PANEL SPEAKER, NO.2 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55409-33050-E0 |
US $58.09 |
||
| replacement | |||||
|
55409F
|
55409F
55409-33040-E0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55409-33040-E0 |
— | ||
|
55412A
|
55412A
90467-10203 Direct[08.2009 -] ACV40,GSV40 YELLOW |
90467-10203 |
from US $0.64 |
||
|
55412A
|
55412A
90467-12080 Clip(For Panel, Instrument Cluster Finish)[08.2009 -] ACV40,GSV40 PINK |
90467-12080 |
from US $0.74 |
||
|
55412E
|
55412E
90467-12080 Clip(For Panel, Instrument Cluster Finish)[08.2009 -] ACV40,GSV40 PINK |
90467-12080 |
from US $0.74 |
||
|
55435A
|
55435A
55403-33050-A1
Panel, Instrument Panel Finish, End Rh
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55403-33050-A1 |
— | ||
|
55435A
|
55435A
55403-33050-C0
Panel, Instrument Panel Finish, End Rh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55403-33050-C0 |
— | ||
|
55436A
|
55436A
55436-33040-A1
Panel, Instrument Panel Finish, End Lh
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55436-33040-A1 |
— | ||
|
55436A
|
55436A
55436-33040-C0
Panel, Instrument Panel Finish, End Lh
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55436-33040-C0 |
— | ||
|
55446A
|
55446A
55446-33160-C0
Base, Switch Hole, No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55446-33160-C0 |
— | ||
|
55446A
|
55446A
55446-33160-E0
Base, Switch Hole, No.1
[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55446-33160-E0 |
— | ||
|
55447C
|
55447C
55447-33120-A1
Base, Switch Hole, No.2
[08.2009 - 08.2010] ACV40 CLEARANCE SONER-WITH,IVORY,TRIM0# |
55447-33120-A1 |
— | ||
|
55447C
|
55447C
55447-33120-C0 Base, Switch Hole, No.2SWITCH HOLE, NO.2 [08.2009 - 08.2010] ACV40 CLEARANCE SONER-WITH,BLACK,TRIM1#,2# |
55447-33120-C0 |
US $28.39 |
||
|
55447C
|
55447C
55447-33140-A1
Base, Switch Hole, No.2
[08.2009 - 08.2010] ACV40 IVORY,TRIM0# |
55447-33140-A1 |
— | ||
|
55447C
|
55447C
55447-33140-C0
Base, Switch Hole, No.2
[08.2009 - 08.2010] ACV40 BLACK,TRIM1#,2# |
55447-33140-C0 |
— | ||
|
55450B
|
55450B
55450-33090-A1
Box Assy, Coin
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55450-33090-A1 |
— | ||
|
55450B
|
55450B
55450-33090-C0
Box Assy, Coin
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55450-33090-C0 |
— | ||
|
55459D
|
55459D
55459-30060 Cover, Instrument, Lower LhINSTRUMENT, LOWER LH [02.2010 -] ACV40,GSV40 |
55459-30060 |
US $14.50 |
||
|
55459D
|
55459D
55459-48020 Cover, Instrument, Lower Lh[08.2009 - 01.2010] ACV40,GSV40 |
55459-48020 |
US $16.60 |
||
|
55479C
|
55479C
90467-10203 Direct[08.2009 -] ACV40,GSV40 YELLOW |
90467-10203 |
from US $0.64 |
||
|
55479C
|
55479C
90467-12080 Clip(For Panel, Instrument Cluster Finish)[08.2009 -] ACV40,GSV40 PINK |
90467-12080 |
from US $0.74 |
||
|
55501A
|
55501A
55501-33150-A1
Door Sub-Assy, Glove Compartment
[08.2009 - 06.2012] ACV40,GSV40 IVORY/MD.BROWN,TRIM00 |
55501-33150-A1 |
— | ||
|
55501A
|
55501A
55501-33150-A2
Door Sub-Assy, Glove Compartment
[08.2009 - 06.2012] ACV40,GSV40 IVORY/DK.BROWN,TRIM01 |
55501-33150-A2 |
— | ||
|
55501A
|
55501A
55501-33150-C1
Door Sub-Assy, Glove Compartment
[08.2009 - 06.2012] ACV40,GSV40 BLACK/MD.BROWN,TRIM10,20 |
55501-33150-C1 |
— | ||
|
55501A
|
55501A
55501-33150-C2
Door Sub-Assy, Glove Compartment
[08.2009 - 06.2012] ACV40,GSV40 BLACK/DK.BROWN,TRIM11,21 |
55501-33150-C2 |
— | ||
|
55525
|
55525
55510-33010-C0 Cover, Speaker Hole, No.1SPEAKER HOLE, NO.1 [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55510-33010-C0 |
US $33.05 |
||
|
55525
|
55525
55510-33010-E0 Cover, Speaker Hole, No.1SPEAKER HOLE, NO.1 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55510-33010-E0 |
US $33.05 |
||
|
55557A
|
55557A
55557-30080 Cushion, Glove Compartment Door Check[08.2009 -] ACV40,GSV40 |
55557-30080 |
US $1.16 |
||
|
55560A
|
55560A
55560-33090
Lock Assy, Glove Compartment Door
[08.2009 -] ACV40,GSV40 |
55560-33090 |
— | ||
|
55569
|
55569
55569-33020-A0
Cover, Glove Compartment Door Lock
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
55569-33020-A0 |
— | ||
|
55569
|
55569
55569-33020-C0
Cover, Glove Compartment Door Lock
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55569-33020-C0 |
— | ||
|
55607
|
55607
55607-33110
Cover Sub-Assy, Instrument Panel Under, No.2
[08.2009 -] ACV40,GSV40 |
55607-33110 |
— | ||
|
55650
|
55650
55650-33170-C0
Register Assy, Instrument Panel, No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55650-33170-C0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-33171-C0
Register Assy, Instrument Panel, No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55650-33171-C0 |
— | ||
|
55650
|
55650
55650-33170-E0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55650-33170-E0 |
US $103.38 |
||
| replacement | |||||
|
55650
|
55650
55650-33171-E0 Register Assy, Instrument Panel, No.1[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55650-33171-E0 |
from US $103.38 |
||
|
55660
|
55660
55660-33210
Register Assy, Instrument Panel, No.2
[08.2009 - 06.2012] ACV40,GSV40 |
55660-33210 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-33211 Register Assy, Instrument Panel, No.2[08.2009 - 06.2012] ACV40,GSV40 |
55660-33211 |
US $136.31 |
||
|
55670
|
55670
55670-33180-C0
Register Assy, Instrument Panel, No.3
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55670-33180-C0 |
— | ||
| replacement | |||||
|
55670
|
55670
55670-33181-C0
Register Assy, Instrument Panel, No.3
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
55670-33181-C0 |
— | ||
|
55670
|
55670
55670-33180-E0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55670-33180-E0 |
US $103.38 |
||
| replacement | |||||
|
55670
|
55670
55670-33181-E0 Register Assy, Instrument Panel, No.3[08.2009 - 06.2012] ACV40,GSV40 ORCHID BROWN,TRIM0# |
55670-33181-E0 |
from US $103.38 |
||
|
73900
|
73900
73900-33030-A1
Air Bag Assy, Instrument Panel, Lower No.1
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
73900-33030-A1 |
— | ||
|
73900
|
73900
73900-33030-C0
Air Bag Assy, Instrument Panel, Lower No.1
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
73900-33030-C0 |
— | ||
|
73990
|
73990
73990-33010-A1
Air Bag Assy, Instrument Panel, Lower No.2
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
73990-33010-A1 |
— | ||
| replacement | |||||
|
73990
|
73990
73990-33011-A1
Air Bag Assy, Instrument Panel, Lower No.2
[08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
73990-33011-A1 |
— | ||
|
73990
|
73990
73990-33010-C0
Air Bag Assy, Instrument Panel, Lower No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
73990-33010-C0 |
— | ||
| replacement | |||||
|
73990
|
73990
73990-33011-C0
Air Bag Assy, Instrument Panel, Lower No.2
[08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM1#,2# |
73990-33011-C0 |
— | ||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9046709218
|
9046709218
90467-09218 CLIP |
90467-09218 |
from US $1.16 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.76 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9046804191
|
9046804191
90468-04191 CLIP |
90468-04191 |
US $1.61 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.05 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
