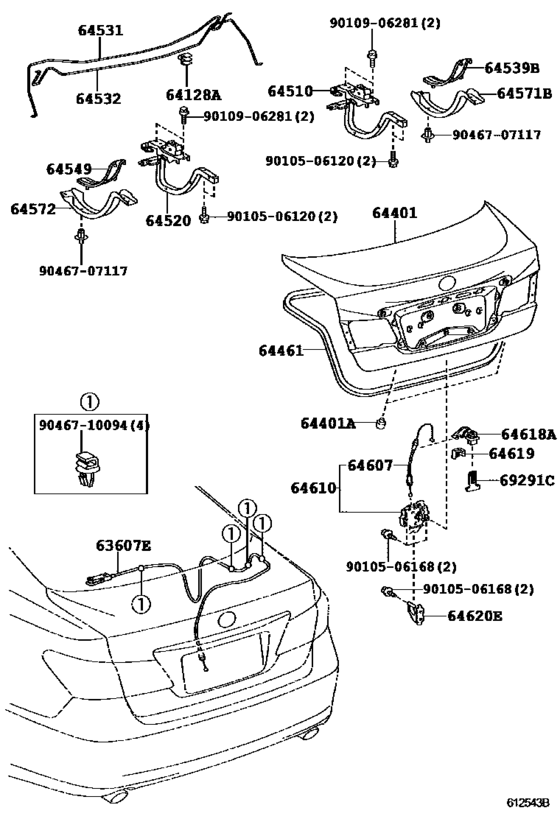

Luggage Compartment Door & Lock ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- ACV40
- ENGINE
- 2AZFE
- DESTINATION
- CHI
- Model
- ES240
- From
- 08.2009
- To
- 06.2012
- Vehicle Model
- ES240
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63607E
|
63607E
64607-33150 Cable Sub-Assy, Luggage Door Lock ControlLUGGAGE DOOR LOCK CONTROL [08.2009 -] ACV40,GSV40 |
64607-33150 |
US $39.03 |
||
|
64128A
|
64128A
64128-33010 Support, Luggage Compartment Door Torsion Bar, No.2[08.2009 - 06.2012] ACV40,GSV40 |
64128-33010 |
US $4.54 |
||
|
64401
|
64401
64401-33480 Panel Sub-Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [08.2009 - 06.2012] GSV40..CHI; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40 AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; ACV40 AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MA |
64401-33480 |
US $633.88 |
||
|
64401
|
64401
64401-33490 Panel Sub-Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [08.2009 - 06.2012] ACV40;GSV40..GCC |
64401-33490 |
from US $674.73 |
||
|
64401A
|
64401A
90541-09116 Cushion(For Luggage Compartment Door Panel)[08.2009 -] ACV40,GSV40 |
90541-09116 |
from US $1.79 |
||
|
64461
|
64461
64461-33080
Weatherstrip, Luggage Compartment Door
[08.2009 -] ACV40,GSV40 |
64461-33080 |
— | ||
|
64510
|
64510
64510-33050 Hinge Assy, Luggage Compartment Door, RhLUGGAGE COMPARTMENT DOOR, RH [08.2009 -] ACV40,GSV40 |
64510-33050 |
US $97.70 |
||
|
64520
|
64520
64510-33050 Hinge Assy, Luggage Compartment Door, RhLUGGAGE COMPARTMENT DOOR, RH [08.2009 -] ACV40,GSV40 |
64510-33050 |
US $97.70 |
||
|
64531
|
64531
64531-33230
Bar, Luggage Door Hinge Torsion, Rh
[08.2009 -] ACV40,GSV40 |
64531-33230 |
— | ||
|
64532
|
64532
64532-33230
Bar, Luggage Door Hinge Torsion, Lh
[08.2009 -] ACV40,GSV40 |
64532-33230 |
— | ||
|
64539B
|
64539B
64539-33020 Plate, Luggage Door Hinge Arm, RhLUGGAGE DOOR HINGE ARM, RH [08.2009 -] ACV40,GSV40 |
64539-33020 |
US $13.05 |
||
|
64549
|
64549
64549-33020
Plate, Luggage Door Hinge Arm, Lh
[08.2009 -] ACV40,GSV40 |
64549-33020 |
— | ||
|
64571B
|
64571B
64571-33020
Cover, Luggage Compartment Door Hinge, Rh
[08.2009 -] ACV40,GSV40 |
64571-33020 |
— | ||
|
64572
|
64572
64572-33020
Cover, Luggage Compartment Door Hinge, Lh
[08.2009 -] ACV40,GSV40 |
64572-33020 |
— | ||
|
64607
|
64607
64607-33140
Cable Sub-Assy, Luggage Door Lock Control
[08.2009 -] ACV40,GSV40 |
64607-33140 |
— | ||
|
64610
|
64610
64600-33140 Lock Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [08.2009 -] ACV40,GSV40 |
64600-33140 |
from US $147.35 |
||
|
64618A
|
64618A
64618-53010-C0 Clamp, Luggage Lock Control CableLUGGAGE LOCK CONTROL CABLE [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64618-53010-C0 |
US $7.57 |
||
|
64619
|
64619
64619-53010-C0 Plate, Luggage Lock Control CableLUGGAGE LOCK CONTROL CABLE [08.2009 - 06.2012] ACV40,GSV40 BLACK,TRIM0#,1#,2# |
64619-53010-C0 |
US $4.51 |
||
|
64620E
|
64620E
64620-53010 Striker Assy, Luggage Compartment Door[08.2009 -] ACV40,GSV40 |
64620-53010 |
from US $19.18 |
||
|
69291C
|
69291C
69291-53010 Handle, Luggage Compartment Door, InsideLUGGAGE COMPARTMENT DOOR, INSIDE [08.2009 -] ACV40,GSV40 |
69291-53010 |
US $9.61 |
||
| replacement | |||||
|
69291C
|
69291C
69291-53012 Handle, Luggage Compartment Door, Inside[08.2009 -] ACV40,GSV40 |
69291-53012 |
US $7.28 |
||
|
9010506120
|
9010506120
90105-06120 BOLT WASHER BASED |
90105-06120 |
from US $0.95 |
||
|
9010506168
|
9010506168
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.70 |
||
|
9010906281
|
9010906281
90109-06281 BOLT |
90109-06281 |
from US $0.78 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.87 |
||
|
9046710094
|
9046710094
90467-10094 New Genuine Part |
90467-10094 |
US $1.61 |
||
